Quick Fitment Guide for XOD H800 and H880
Choosing between XOD H800 and XOD H880 hydraulic brakes is not only about looking at the left or right side of your electric scooter. For the rear wheel, the rule is usually simple: if the rear brake disc is on the left side, H880 is normally used; if the rear brake disc is on the right side, H800 is normally used.
For the front wheel, the fitment is more complicated. You need to check the brake disc side, the front fork or suspension structure, and whether the caliper is in a standard mounting position or a reversed mounting position.
Quick Answer
For the rear wheel, check the brake disc side: left usually means H880, and right usually means H800. For the front wheel, do not choose by disc side alone. You must also check the front fork type and caliper mounting position.
What Are XOD H800 and H880?

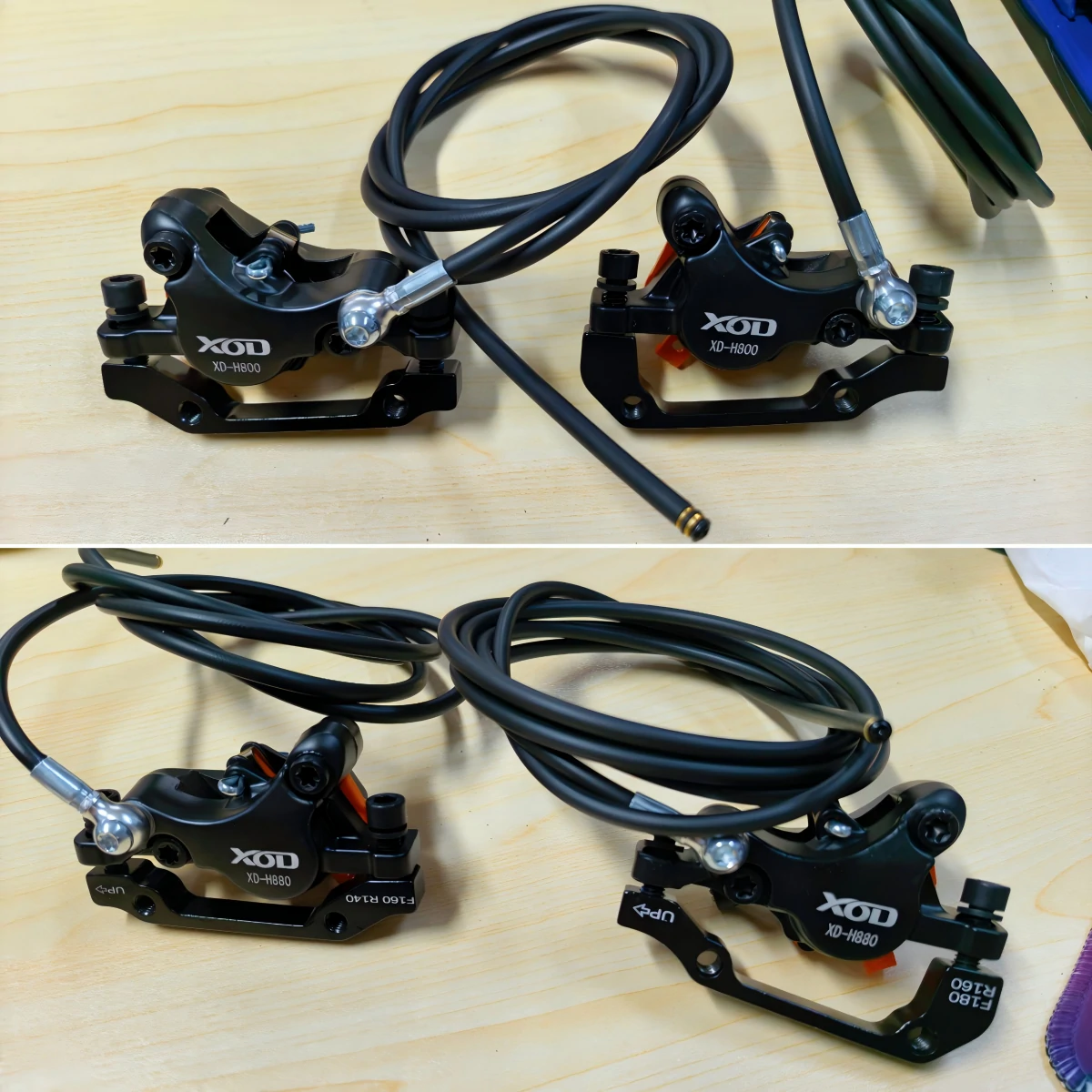

XOD H800 and XOD H880 are hydraulic brake caliper versions used for electric scooter brake upgrades. They are not simply “front brake” and “rear brake” models.
In real fitment, H800 and H880 refer mainly to different caliper mounting directions. A scooter may use H800 on the front wheel, H880 on the rear wheel, or even the same version on both wheels, depending on the brake disc side and caliper mounting position.
That is why riders should not choose only by model name. The correct choice depends on the scooter structure.
Front Brake and Rear Brake Kit Setup
A full hydraulic brake upgrade usually includes the brake lever, brake hose, and hydraulic caliper. For most scooter setups, the front and rear brake kits use different hose lengths and lever sides.
| Brake Position | Common Lever Setup | Hose Length | What It Means |
|---|---|---|---|
| Front brake | Right brake lever | Short hose | Usually controls the front wheel brake |
| Rear brake | Left brake lever | Long hose | Usually controls the rear wheel brake |
| Front and rear set | Left + right brake levers | Short + long hoses | Includes both front and rear brake parts |
For a pair set, you normally need one left brake lever, one right brake lever, one short brake hose, one long brake hose, and the correct H800 or H880 caliper versions for your scooter.
For non-integrated hydraulic brake systems, the front and rear control direction may be changed by swapping the hoses if needed. This should be done carefully by an experienced installer.
The Simple Rule for Rear Brakes
Rear brake fitment is usually easier than front brake fitment. In most cases, you can choose the rear brake model by checking which side the rear brake disc is on.
| Rear Brake Disc Position | Recommended XOD Model |
|---|---|
| Rear disc on the left side | H880 |
| Rear disc on the right side | H800 |
Simple summary: for the rear wheel, left-side disc usually means H880. Right-side disc usually means H800.
Why Front Brake Fitment Is More Complicated
The front brake is more complicated because the caliper position is affected by the front fork or suspension structure.
Before choosing H800 or H880 for the front wheel, check three things:
- Which side is the front brake disc on?
- What type of front fork or suspension does your scooter use?
- Is the caliper in a standard mounting position or a reversed mounting position?
Important: Do not choose H800 or H880 for the front wheel only by looking at the brake disc side.
Two scooters may both have the front brake disc on the right side, but one may need H800 while another may need H880 because the front suspension structure is different.
Vertical Front Fork: How to Choose H800 or H880
Some electric scooters use a vertical front fork structure. On this type of front fork, the caliper is often mounted behind the fork. This is usually considered a standard mounting position.
| Front Fork Type | Front Brake Disc Side | Caliper Position | Mounting Position | Recommended Action |
|---|---|---|---|---|
| Vertical front fork | Left side | Behind the fork | Standard mounting position | Usually H880 |
| Vertical front fork | Right side | Behind the fork | Standard mounting position | Usually H800 |
| Vertical front fork | Left side | In front of the fork | Reversed mounting position / rare setup | Contact XOD before ordering |
| Vertical front fork | Right side | In front of the fork | Reversed mounting position / rare setup | Contact XOD before ordering |

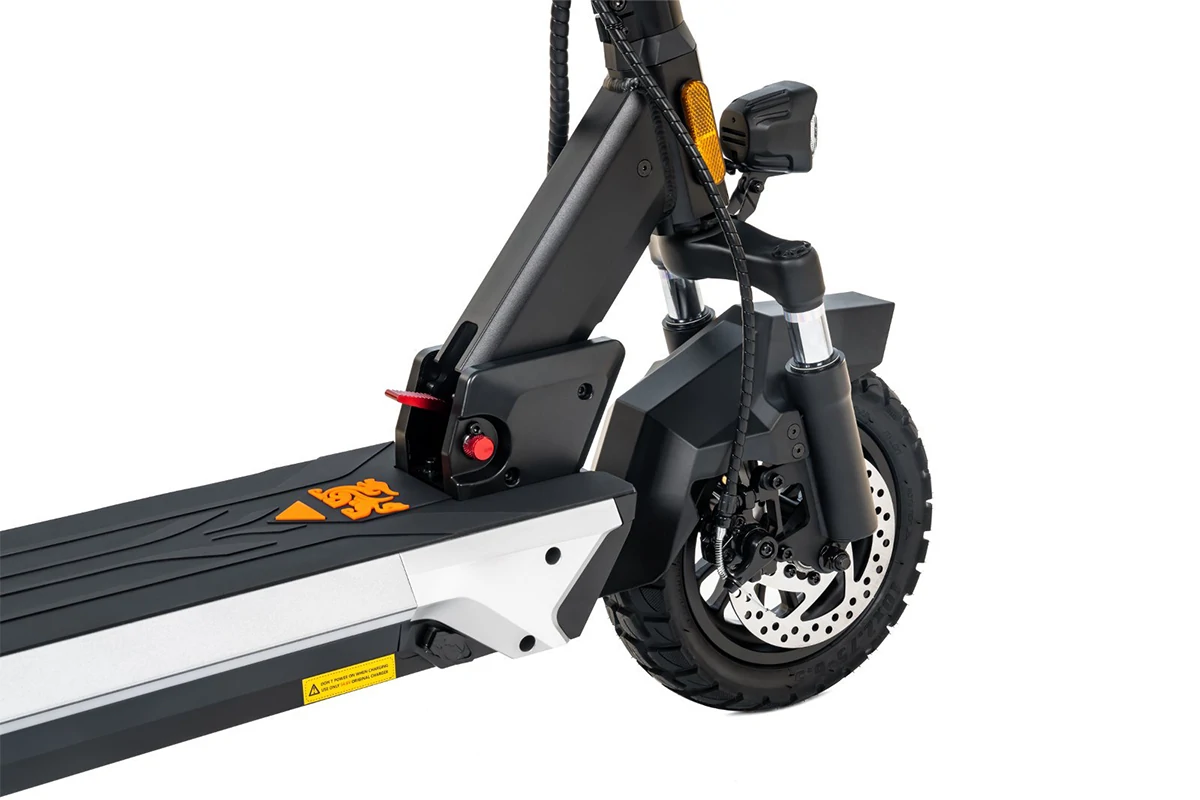

For example, KuKirin M4 Max uses a vertical front fork style with the front brake disc on the right side. In this standard mounting position, the front wheel uses XOD H800.
If your scooter has a front-mounted caliper in front of the fork, please contact XOD before ordering. This layout is less common and should be checked carefully.
Single-Arm Front Suspension: How to Choose H800 or H880
Some scooters, such as KuKirin G4 and KuKirin G2 Max, use a single-arm front suspension structure. On this type of structure, the front brake fitment can be different from a vertical front fork.
| Front Suspension Type | Front Brake Disc Side | Caliper Position | Mounting Position | Recommended XOD Model |
|---|---|---|---|---|
| Single-arm suspension | Left side | Above the suspension arm | Reversed mounting position | H800 |
| Single-arm suspension | Right side | Above the suspension arm | Reversed mounting position | H880 |
| Single-arm suspension | Left side | Below the suspension arm | Rare / not commonly seen | Contact XOD before ordering |
| Single-arm suspension | Right side | Below the suspension arm | Rare / not commonly seen | Contact XOD before ordering |

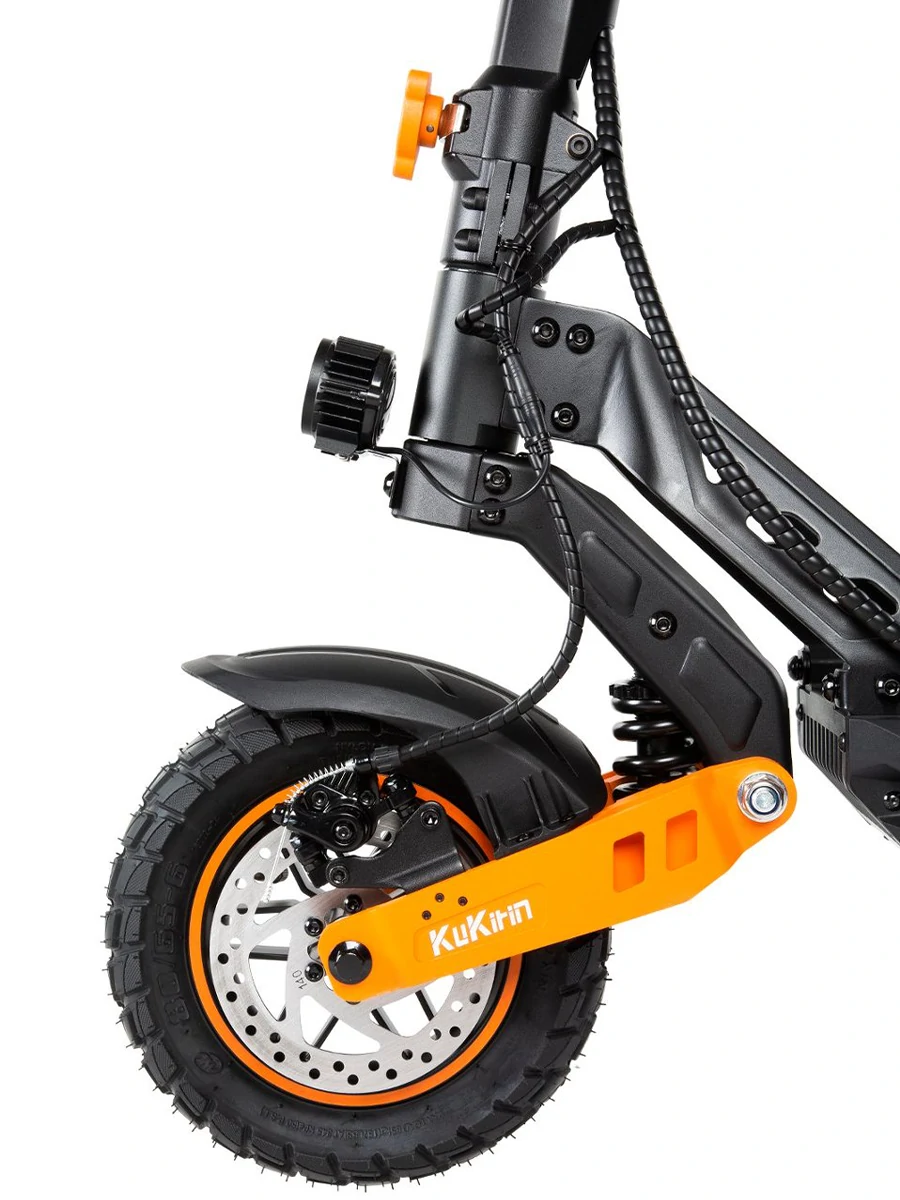

KuKirin G2 Max has a single-arm front suspension and the front brake disc is on the left side. Its front wheel uses XOD H800.

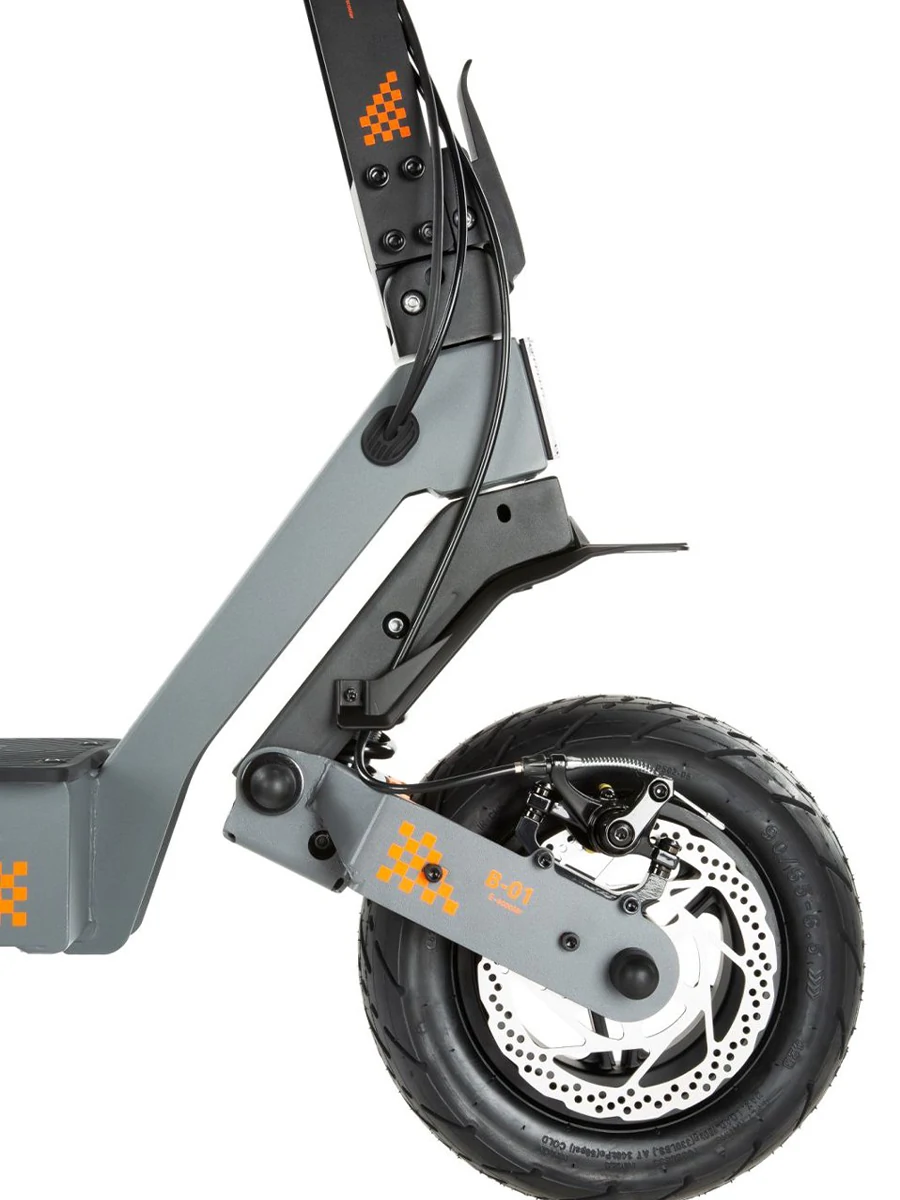

KuKirin G4 also uses a single-arm front suspension, but its front brake disc is on the right side. Its front wheel uses XOD H880.
These two examples show why front wheel fitment cannot be decided by disc side alone.
Why Front-Mounted Calipers Are Less Common on Vertical Fork Scooters
On many electric scooters with a vertical front fork, the brake caliper is usually mounted behind the fork rather than in front of it. This layout is more common because it helps protect the caliper, brake hose, and hose connector from direct impact.
When the caliper is placed at the very front of the fork, it is more exposed to stones, mud, road debris, curbs, and light collisions. For a hydraulic brake system, this matters because damage to the hose or connector may cause oil leakage or braking failure.
The force direction during braking is another reason. In many rear-side caliper layouts, the braking force tends to push the caliper toward the fork structure, which can be more stable. In a front-mounted layout, the braking force may pull the caliper away from the fork, placing higher stress on the adapter, fork mount, and bolts.
However, a front-mounted caliper is not always a bad design. It can provide better airflow around the caliper and brake rotor, which may help cooling during long downhill braking. It can also avoid interference with rear-facing motor cables on some front hub motor scooters.
Because this layout is less common, riders should not choose XOD H800 or H880 only by looking at the brake disc side. If your front caliper is mounted in front of the fork, please contact XOD before ordering and send clear photos of the front wheel, brake disc, caliper, fork, and motor cable position.
KuKirin Fitment Examples
The table below shows common KuKirin electric scooter fitment examples based on XOD’s current fitment experience.
| Scooter Model | Brake Disc Position | Recommended XOD Model | Notes |
|---|---|---|---|

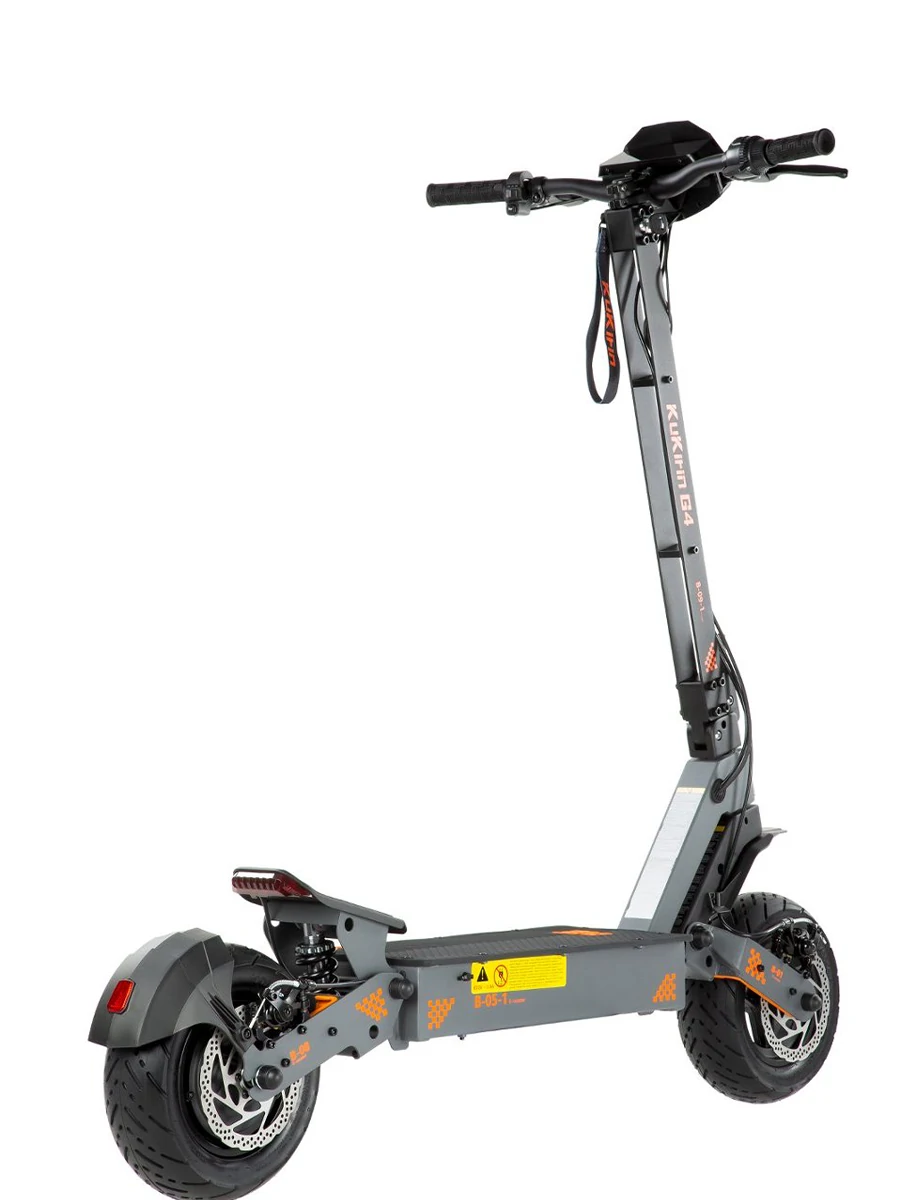

| KuKirin G4 | Both discs on the right side | Front H880 / Rear H800 | Single-arm front suspension |
| KuKirin G2 Max | Both discs on the left side | Front H800 / Rear H880 | Single-arm front suspension |
| KuKirin M4 Max | Front right / rear left | Front H800 / Rear H880 | Vertical front fork |
| KuKirin G2 Master 2025 | Front right / rear left | Front H880 / Rear H880 | Common XOD upgrade model |
| KuKirin G2 Pro 2023 | Both discs on the left side | Front H800 / Rear H880 | May need an extra rotor spacer |
| KuKirin G2 Pro 2024 | Front right / rear left | Front H880 / Rear H880 | May need an extra 5mm rotor spacer |
| KuKirin G2 / G3 / G3 Pro / G2 Ultra | Both discs on the right side | Front H880 / Rear H800 | Check photos before ordering |
This table is for reference. Scooter versions may change by production year, market, or batch. If your scooter looks different from the examples above, contact XOD before ordering.
What Photos Should You Send to XOD Before Ordering?
If you are not sure whether your scooter needs H800 or H880, you do not need to guess. Send XOD three clear photos before ordering.
| Photo Needed | What It Helps XOD Check |
|---|---|

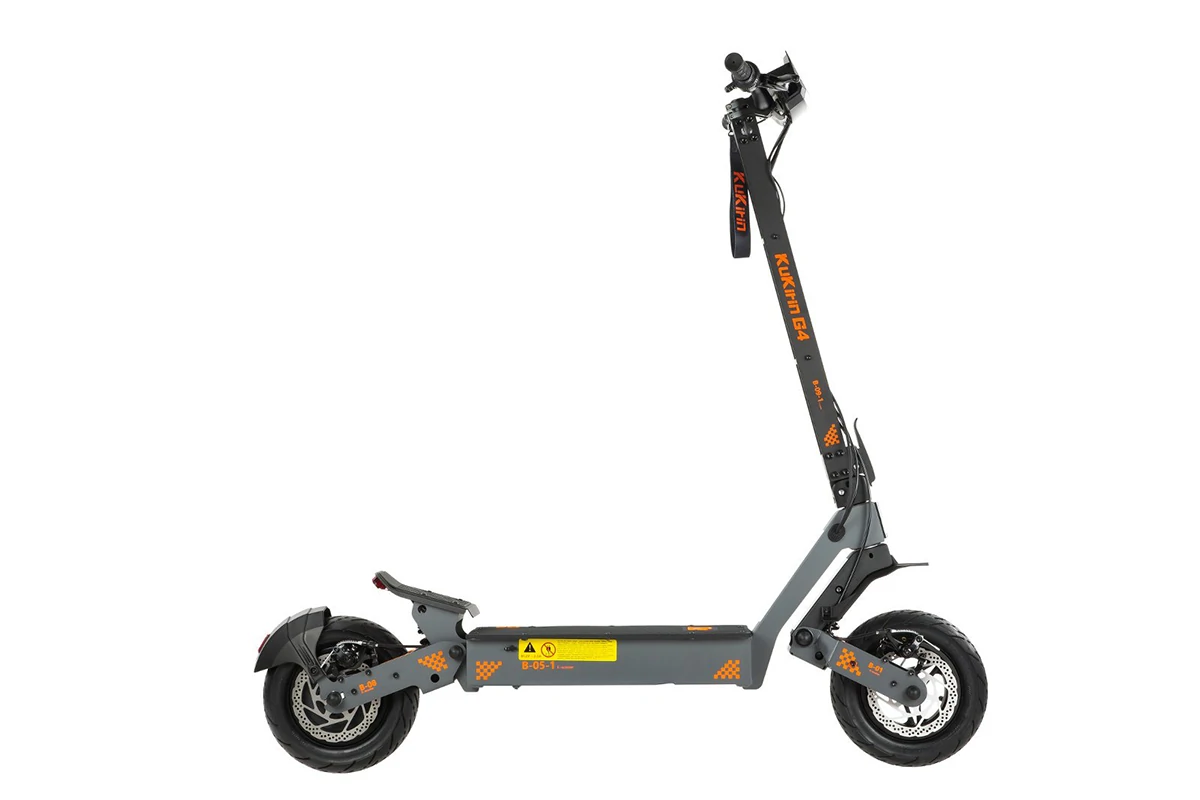

| Front-side scooter photo | Front wheel brake disc side, front fork type, and caliper position |

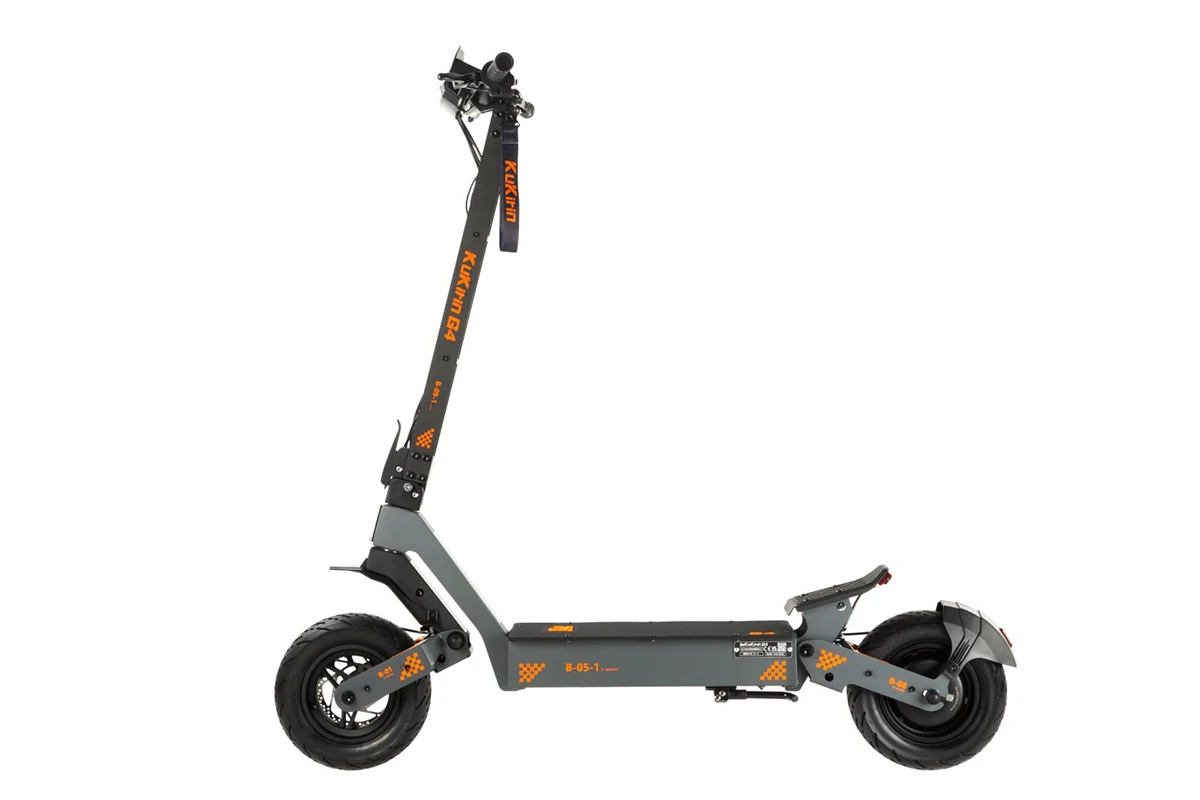

| Rear-side scooter photo | Rear wheel brake disc side and rear caliper position |
| Brake lever connector photo | Brake lever type and power-off sensor connector |
When taking photos, make sure the brake disc, caliper, front fork, rear wheel, and brake lever connector are clearly visible. Avoid dark photos, close-up photos that hide the wheel position, or photos taken from only one side.
A clear photo can prevent ordering the wrong brake version.

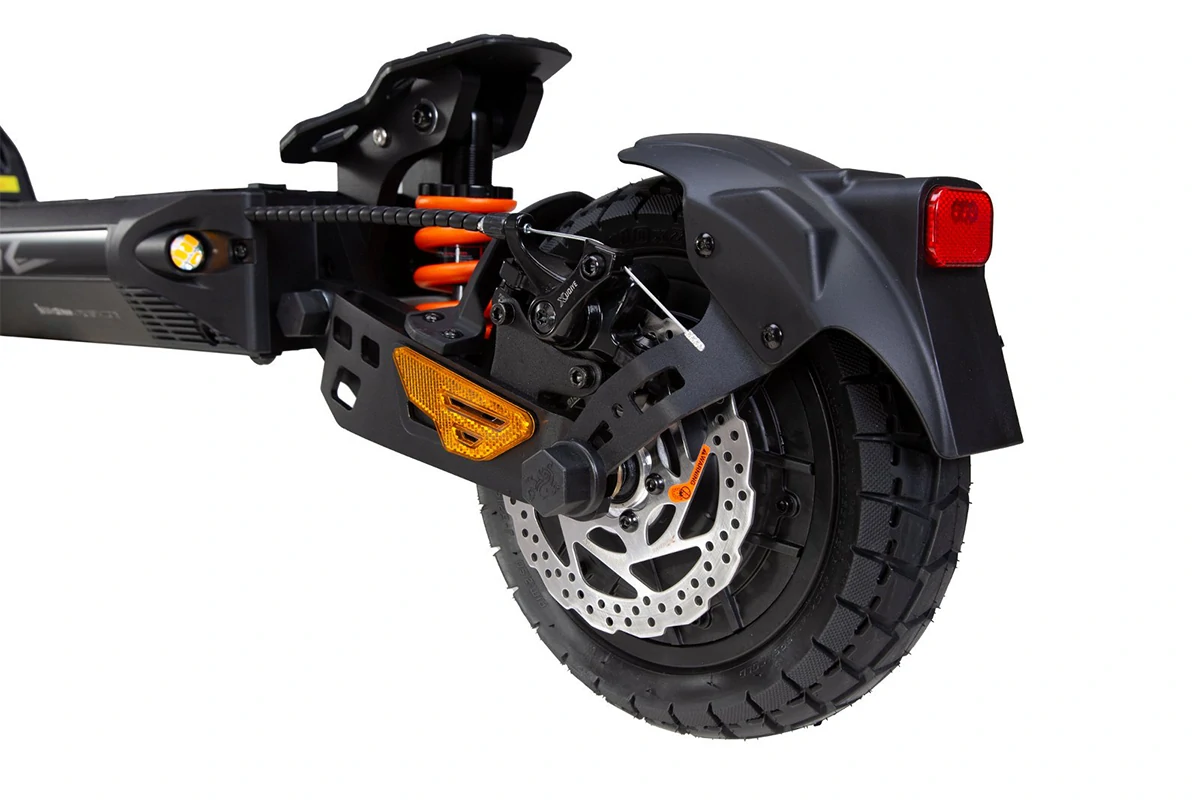

Real Installation Example: XOD H880 on KuKirin G2 Master Rear Wheel

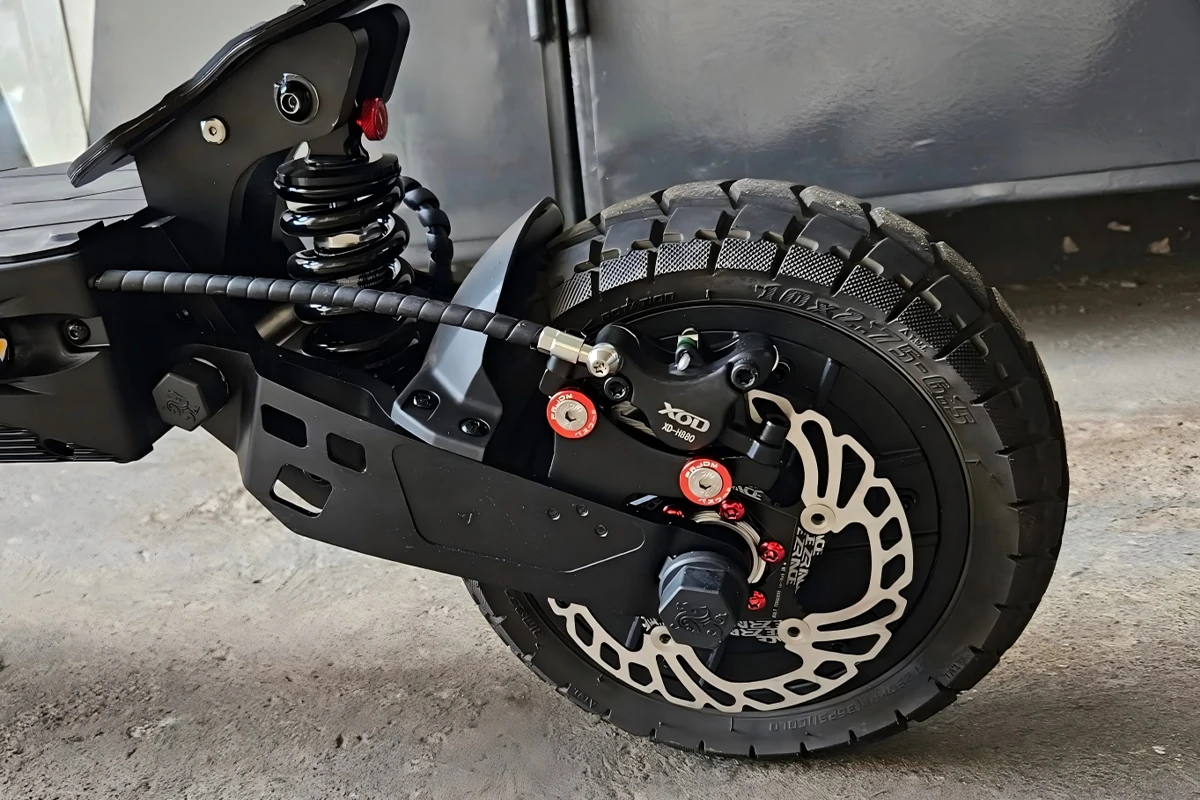

Below is a real installation example of an XOD H880 hydraulic brake installed on the rear wheel of a KuKirin G2 Master.
This example shows how the rear wheel fitment is judged by the rear brake disc side. When the rear brake disc is on the left side, the rear wheel usually uses XOD H880.
Real installation photos are helpful because they show the actual caliper position, brake hose routing, and disc side more clearly than a product-only image.
Common Mistakes When Choosing H800 or H880
Mistake 1: Choosing only by left or right side on the front wheel
This is the most common mistake. The front wheel must also be checked by fork type and caliper mounting position.
Mistake 2: Thinking H800 is only for the front and H880 is only for the rear
H800 and H880 are caliper versions, not simple front or rear labels. Both models may appear in front or rear setups depending on the scooter.
Mistake 3: Ignoring scooter year differences
Some scooter models may have different brake layouts in different production years. For example, one model year may use a different front/rear disc position from another version.
Mistake 4: Not checking spacer requirements
Some scooters may require an extra rotor spacer for proper installation. If the brake disc position is not aligned correctly, the caliper may rub the rotor or fail to sit in the correct position.
Mistake 5: Sending unclear photos
A close-up photo of only the caliper is sometimes not enough. XOD needs to see the wheel side, fork structure, caliper position, and brake lever connector.
FAQ
Here are the most common questions riders ask before choosing XOD H800 or H880.
Is XOD H800 the front brake and H880 the rear brake?
No. H800 and H880 are different hydraulic caliper versions. The final choice depends on brake disc side, fork or suspension structure, and caliper mounting position.
How do I know if my scooter needs H800 or H880?
For the rear wheel, check whether the brake disc is on the left or right side. For the front wheel, also check the front fork type and caliper mounting position. If you are not sure, send XOD clear photos before ordering.
Why does the front wheel need a different judgment method?
The front wheel fitment is affected by the fork or suspension structure. A vertical front fork and a single-arm suspension may require different H800/H880 choices even when the brake disc side looks similar.
What is the difference between a standard mounting position and a reversed mounting position?
A standard mounting position means the caliper is mounted in the more common direction for that fork structure. A reversed mounting position means the caliper is mounted in the opposite or less common direction, which may change the required brake version.
Can I install XOD hydraulic brakes myself?
Some experienced riders can install hydraulic brakes themselves, but beginners should be careful. Brake installation affects riding safety. If you are not familiar with hydraulic brake installation, ask an experienced installer for help.
What photos should I send before ordering?
Send a front-side scooter photo, a rear-side scooter photo, and a brake lever connector photo. These photos help XOD check disc side, fork type, caliper position, and power-off sensor compatibility.
Does every KuKirin scooter use the same XOD brake model?
No. Different KuKirin models may use different H800/H880 combinations. Some models also differ by production year.
Need Help Choosing H800 or H880?
If you are not sure which XOD hydraulic brake fits your scooter, send us three clear photos before ordering:
- One front-side scooter photo
- One rear-side scooter photo
- One brake lever connector photo
XOD can help check the correct hydraulic brake version before you buy.
Recommended next step: Contact XOD for fitment help or shop XOD H-Series hydraulic brakes.
Final Recommendation
If you already know your scooter’s brake disc side, front fork type, and caliper position, you can use the tables above to choose XOD H800 or H880.
If you are still not sure, do not guess. Send XOD three clear photos before ordering.
Choosing the correct H800 or H880 from the beginning helps avoid installation problems, brake rubbing, wrong hose routing, and unnecessary returns.
