XOD Split Hydraulic Brake User Manual & Installation Guide
This guide explains how to install, check, and maintain an XOD split hydraulic brake system for electric scooters. It covers brake hose routing, caliper alignment, mineral oil safety, power-off sensor checks, break-in, troubleshooting, and daily maintenance.
Before installation: make sure you have selected the correct XOD H800 or XOD H880 version for your scooter. If you are not sure, read our XOD H800/H880 Fitment Guide before installing.
Quick Answer: use mineral oil only, keep the brake line clean, align the caliper carefully, check the power-off sensor, test the brake at low speed, and ask an experienced installer for help if you are not familiar with hydraulic brake installation.
Video Walkthrough: Oil Pipe Installation
Watch the video first if you are installing a split-hose hydraulic brake system for the first time.It provides a tutorial on connecting the oil pipe to the brake lever of a split-type hydraulic brake.
XOD Hydraulic Brake Installation Tutorial
Safety Warnings Before Installation
- ✔ Install and maintain the brake system in a clean, well-lit workspace.
- ✔ Keep oil, grease, and dirt away from the brake pads and rotor surface.
- ✔ After installation, test braking at low speed before riding normally.
- ✔ If you are not confident with hose cutting, oil filling, or bleeding, ask an experienced installer or mechanic for help.
Product Overview and Key Features
- Split-Hose Design: separated lever, hose, and caliper structure helps with internal frame routing and cleaner installation.
- Hydraulic Braking Control: designed to provide smoother braking feel and more consistent braking response than weak mechanical disc brake systems.
- Power-Off Sensor: brake lever sensor helps cut motor power when braking, depending on your scooter controller and connector compatibility.
- Wide Scooter Upgrade Use: suitable for many electric scooter brake upgrade projects, including compatible KuKirin, Ausom, iENYRID, Joyor, Kugoo and similar models.
Fitment may vary by scooter model, production year, brake disc side, caliper position, and connector type. If you are not sure, contact XOD before ordering or installing.
Tools and Preparation
Prepare the scooter and tools before starting. A clean setup reduces the risk of contamination, oil leakage, incorrect hose routing, and brake rubbing.
| Item | Purpose |
|---|---|
| Hex keys / Allen keys | Remove old brake parts and install caliper or lever bolts |
| Torque wrench | Tighten bolts safely according to recommended torque range |
| Clean cloth and isopropyl alcohol | Clean rotors and remove oil or dirt from the work area |
| Mineral oil | Top up or bleed the XOD hydraulic brake system when needed |
| Bleed kit | Remove air bubbles from the hydraulic line |
Step-by-Step Installation Guide
Step 1: Confirm Fitment Before Installing
Check whether you are installing the front brake, rear brake, or a full front and rear set. Confirm the brake disc side, caliper mounting position, hose length, and brake lever connector before cutting or routing any hose.
Step 2: Remove the Old Brake System
Remove the original brake caliper, brake lever, and cable or hose carefully. Keep the rotor clean and avoid touching the braking surface with oily hands.
Step 3: Install or Check the Brake Rotor
Clean the hub and rotor contact surface. Align the rotor properly and tighten the rotor bolts in a cross pattern. Avoid over-tightening.
Step 4: Route the Hydraulic Hose
Route the brake hose along the original cable path when possible. Make sure the hose does not rub against the tire, rotor, suspension arm, folding joint, or sharp frame edges.
Step 5: Connect the Lever, Hose, and Caliper

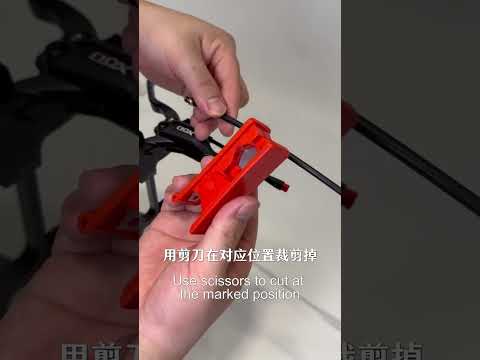

If the hose needs to be shortened or reconnected, cut it squarely and install the correct olive and insert. Tighten the compression nut carefully to avoid leakage.
Step 6: Align the Caliper
Mount the caliper loosely, squeeze the brake lever to center the caliper over the rotor, then tighten the caliper bolts gradually. Spin the wheel to check whether the rotor rubs against the pads.
Step 7: Bleed the Brake System if Needed

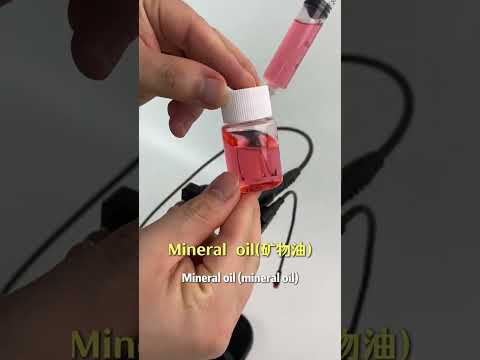

If the brake lever feels soft or spongy, there may be air in the hydraulic line. Use mineral oil and a compatible bleed kit to remove air bubbles. Keep the oil reservoir from running empty during bleeding.
Step 8: Check the Power-Off Sensor
Connect the brake lever power-off sensor to the matching scooter connector. After connection, confirm that motor power cuts off when the brake lever is pressed.
Step 9: Final Low-Speed Test
Before normal riding, push the scooter by hand and test the brake. Then ride at low speed in a safe area to confirm braking force, lever feel, caliper alignment, and motor cut-off function.
Post-Setup Check and Daily Maintenance
- Lever Feel: the lever should feel firm and controlled, not soft or spongy.
- Brake Rub: spin the wheel and listen for constant rotor rubbing.
- Leak Check: inspect hose joints, caliper area, and lever connections for oil leakage.
- Brake Pad Break-In: ride carefully after installation and avoid aggressive braking until the pads and rotor have bedded in.
- Rotor Cleaning: clean the rotor with isopropyl alcohol if it becomes contaminated.
- Pad Replacement: replace worn brake pads before the friction material becomes too thin.
Troubleshooting and Common Fixes
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| Soft lever / weak braking | Air bubbles in the line, low oil level, or worn brake pads | Check pad wear, inspect for leakage, and bleed the system if needed |
| Constant brake rubbing | Caliper misalignment or rotor position issue | Re-center the caliper and check rotor alignment or spacer requirement |
| Squealing noise | Contaminated rotor or glazed brake pads | Clean the rotor with alcohol and replace contaminated pads if necessary |
| Brake lever feels too stiff | Blocked line, stuck piston, or installation issue | Inspect the hose, caliper piston movement, and lever connection |
| Oil leakage | Loose compression joint, damaged hose, or seal problem | Stop riding immediately. Repair the connection and re-bleed before riding again. |
FAQ
Can I use DOT brake fluid in XOD hydraulic brakes?
No. XOD H-Series brakes use mineral oil. Do not mix mineral oil with DOT brake fluids.
Why does my brake lever feel soft after installation?
A soft lever is usually caused by air in the hydraulic line, low oil level, leakage, or worn pads. Check the system and bleed it if necessary.
Why is my rotor rubbing after installation?
Rotor rubbing is often caused by caliper misalignment, rotor position, spacer requirements, or uneven pad position. Re-center the caliper and check rotor alignment.
Do I need to check H800 or H880 before installation?
Yes. Before installation, confirm whether your scooter needs H800 or H880. Front wheel fitment depends on brake disc side, fork type, and caliper position.
Should beginners install hydraulic brakes themselves?
Beginners should be careful. Hydraulic brake installation affects riding safety. If you are not familiar with brake hose routing, bleeding, or caliper alignment, ask an experienced installer for help.
Warranty and Support
- Warranty: XOD provides warranty support for manufacturing and material defects under normal use.
- Exclusions: damage caused by wrong fluid mixing, improper installation, crash damage, racing abuse, or unauthorized modification may not be covered.
- Environmental Note: dispose of old mineral oil and worn brake pads according to local recycling or waste regulations.
Need Help Installing XOD Hydraulic Brakes?
If you are unsure about fitment, hose routing, power-off sensor connectors, or brake bleeding, contact XOD before riding.
For H800/H880 selection, read the XOD H800/H880 Fitment Guide before installation.
