Upgrade your electric scooter braking system with the XOD H-Series Hydraulic Brake Kit. The H-Series is designed for electric scooter and e-bike brake upgrade projects where the correct brake version must be selected based on the actual vehicle structure.
This universal H-Series page is suitable for riders who want to replace weak mechanical disc brakes, improve braking response, upgrade to hydraulic brake control, or add a brake lever system with motor power-off sensor support.
The XOD H-Series is commonly used for compatible electric scooter platforms such as KuKirin, Kugoo, Joyor, Ausom, iENYRID and other electric scooters with suitable brake layouts.
Quick Fitment Note: H800 or H880?
Choosing the correct XOD H-Series model depends on your scooter model, wheel position, brake disc side, caliper mounting position, front fork or rear swingarm structure, rotor size, hose routing and brake lever connector.
H800/H880 selection should not be based only on left-side or right-side appearance. Not sure which version fits your scooter? Read the XOD H800/H880 Fitment Guide before ordering.
Why Upgrade to XOD H-Series?
Upgrade from mechanical braking to smoother hydraulic control and more consistent lever response.
Flexible pipe connector helps improve hydraulic hose routing and reduces unnecessary hose stress during installation.
Cooling pads are included to help support more stable braking performance during demanding rides.
The brake lever includes a 3A mechanical contact power-off sensor designed to cut motor power when the brake lever is pressed.
Universal H-Series Fitment Notes
The XOD H-Series Universal Hydraulic Brake Kit includes multiple hydraulic brake options, including XD-H800, XD-H801, XD-H880 and XD-H802. Each model is designed for different caliper directions, brake layouts and installation requirements.
For brand-specific scooter upgrade areas, please check the dedicated H-Series pages:
Universal Specifications
H-Series Model Comparison
All H-Series models include movable ball joints and cooling pads. Select the correct model based on your scooter’s caliper position, brake disc side, wheel position and installation requirements.
| Model | Caliper Direction | Visual Oil Window | Semi-Open Install | Best For |
|---|---|---|---|---|

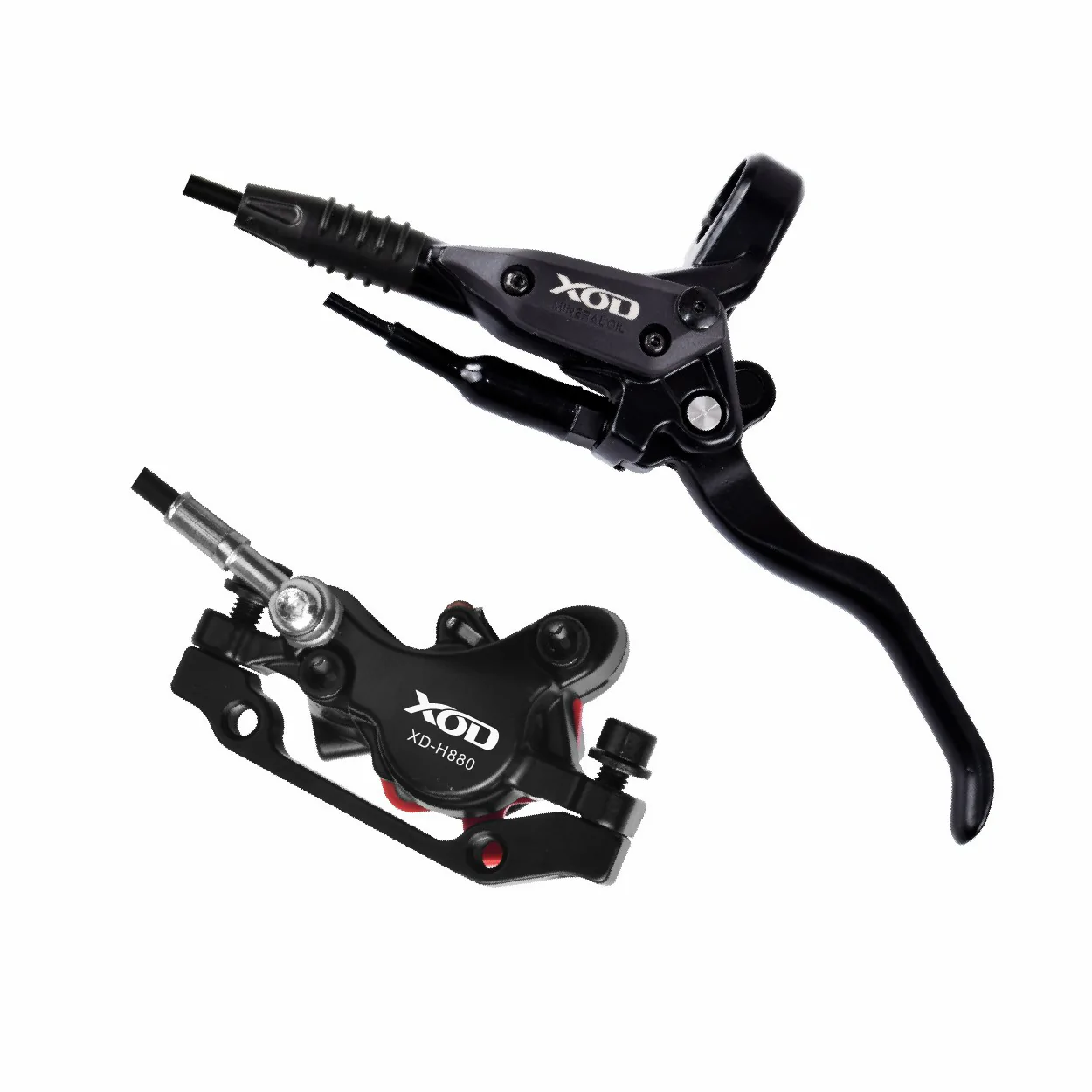

| XD-H880 | Standard / left-side setups | No | No | Common standard fitment |

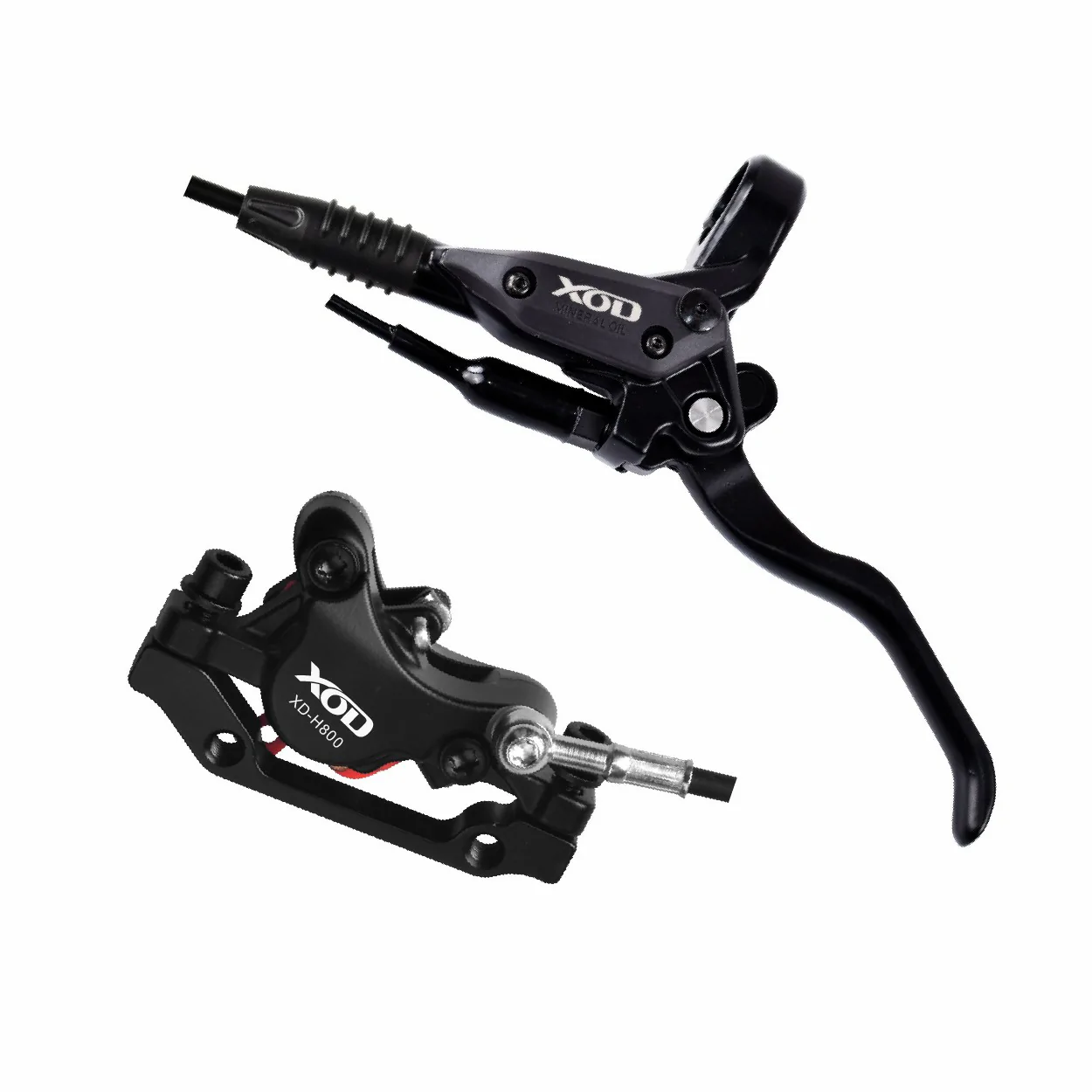

| XD-H800 | Right-hand setups | No | No | Right-side caliper layouts |

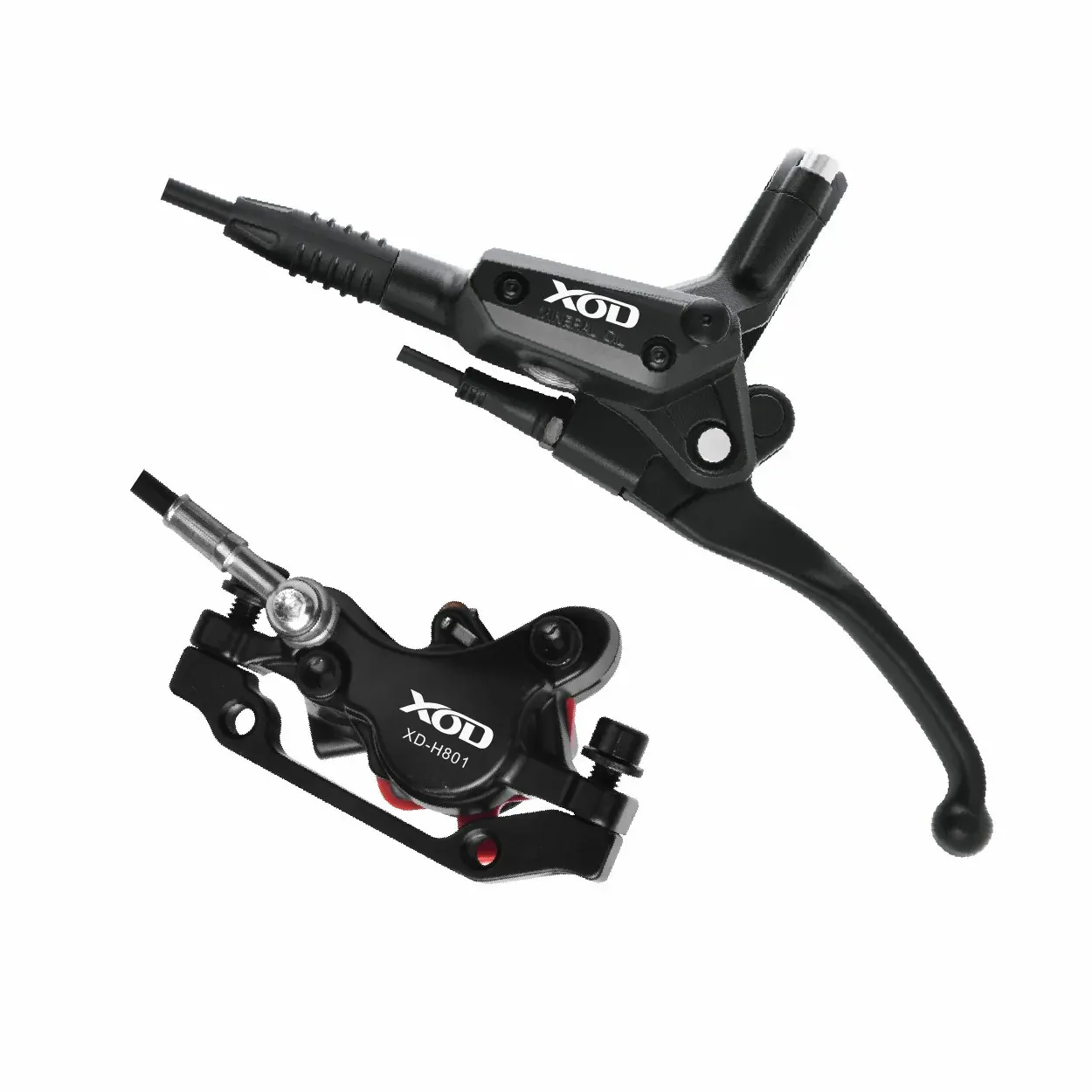

| XD-H801 | Standard / left-side setups | Yes | Yes | Standard fitment with upgraded service features |

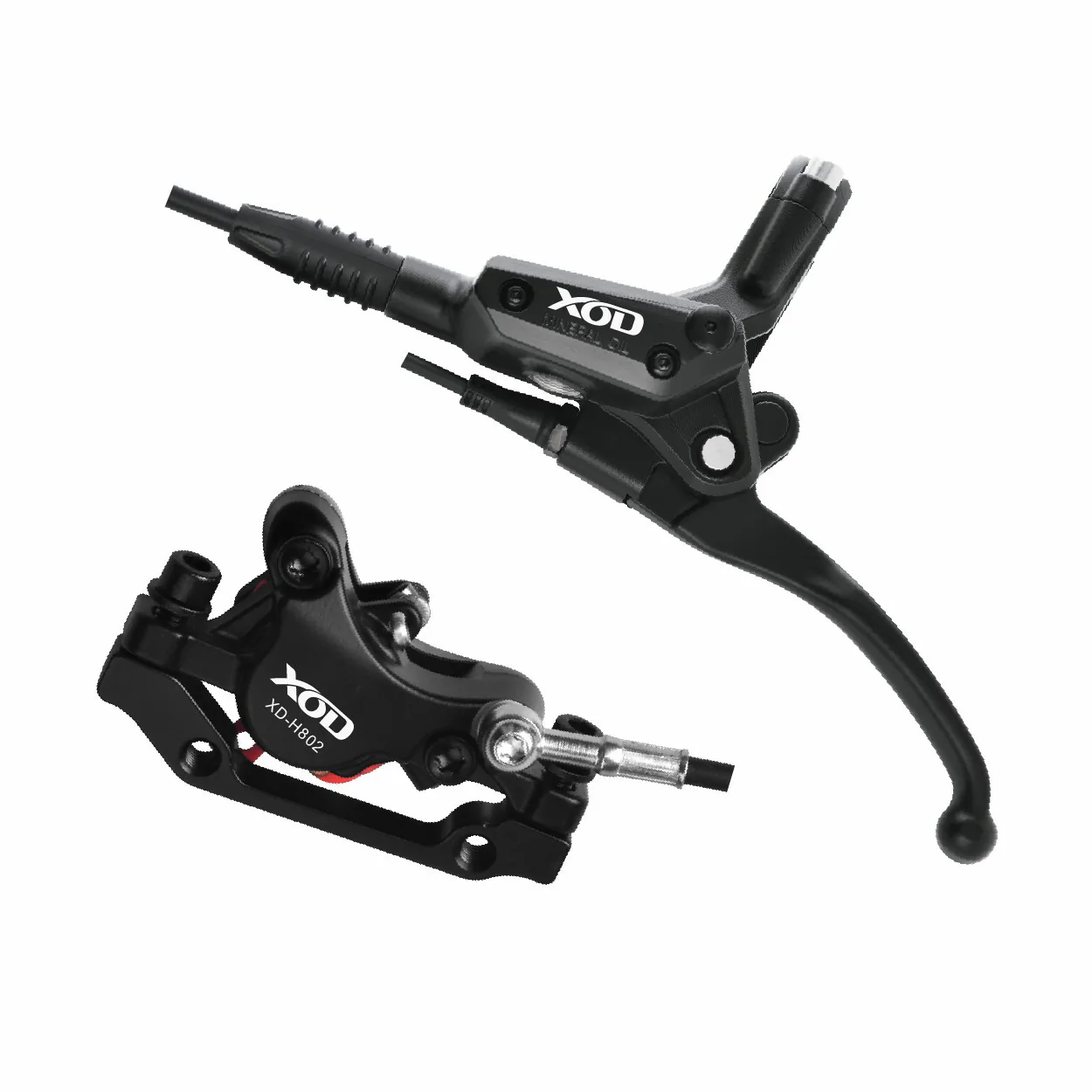

| XD-H802 | Right-hand setups | Yes | Yes | Right-hand fitment with upgraded service features |
Fitment may vary by scooter model, production year, brake disc side, front fork structure and caliper mounting position. If you are unsure, contact XOD before ordering.
Not Sure Which Model Fits?
If you are not sure whether you need XD-H800, XD-H880, XD-H801 or XD-H802, send clear photos before ordering. These photos help XOD check your brake disc side, front fork or rear swingarm structure, caliper position, hose routing and power-off sensor connector.
```
Show the front brake disc side, front fork structure and caliper mounting position.
Show the rear brake disc side, rear swingarm area and caliper mounting direction.
Show the power-off sensor connector so XOD can check wiring compatibility.
- Send one clear front wheel / front brake side photo.
- Send one clear rear wheel / rear brake side photo.
- Send one brake lever connector photo.
- If possible, add one extra photo showing hose routing and caliper mounting position.
These photos help reduce wrong model selection, brake rubbing, incorrect hose routing and unnecessary returns.
Installation Support
After choosing the correct H-Series model, read the installation guide before installing the brake system. Hydraulic brake installation affects riding safety, so beginners should install carefully or ask an experienced installer for help.
Read the XOD Hydraulic Brake User Manual & Installation Guide
What’s in the Box?
Package contents may vary depending on the selected option, such as front brake, rear brake, or front and rear set.
- XOD H-Series hydraulic brake caliper version selected
- Matching brake lever with power-off sensor
- Hydraulic brake hose for the selected front or rear setup
- Heat-dissipation brake pads
- Required mounting hardware for the selected kit
- For front and rear sets: left and right brake levers, short and long hoses, and matching front/rear calipers
H-Series FAQ
Is XOD H800 only for the front brake?
No. H800 and H880 are different caliper versions. The correct model depends on your scooter’s brake disc side, caliper position, wheel position and front suspension or rear swingarm structure.
How do I know if I need H800 or H880?
For the rear wheel, check which side the brake disc is on and how the caliper is mounted. For the front wheel, you also need to check the front fork type and caliper mounting position. You can read the H800/H880 fitment guide or send photos to XOD before ordering.
Can I install XOD H-Series brakes myself?
Experienced riders may install the brake system themselves, but beginners should be careful. Hydraulic brake installation affects riding safety. If you are not confident, ask an experienced installer or mechanic for help.
Does this kit include motor power-off sensors?
Yes. The H-Series includes a 3A mechanical contact power-off sensor designed to cut motor power when the brake lever is pressed. Please confirm your original brake lever connector before ordering.
Which XOD brake fits KuKirin G4, G2 Max and G2 Master?
For common KuKirin reference examples, KuKirin G4 uses front H880 and rear H800, KuKirin G2 Max uses front H800 and rear H880, and KuKirin G2 Master 2025 uses H880 for both front and rear wheels. Always confirm the actual scooter layout before ordering.
More XOD Resources
Need Help Choosing the Correct XOD H-Series Brake?
If you are not sure which H-Series model fits your electric scooter, contact XOD before ordering and send clear photos of your scooter’s front wheel, rear wheel, caliper mount and brake lever connector.
Choosing the correct brake version helps avoid installation problems, brake rubbing, wrong hose routing and unnecessary returns.
