XOD F-Series High-Power Hydraulic Brakes - For E-Moto & Extreme Off-Road E-Bikes
Check the selected specification and the product details before ordering. Need help choosing?
Product details & specifications
Review the specifications and product photos for your selected option before ordering.
View product detailsWhat is included?
Package contents depend on the product and selected option. Refer to the product's listed contents below; accessories shown for installation are not necessarily included.
When you push the limits of high-power riding, you need uncompromising stopping power. The XOD F-Series is forged for the wild. Engineered with a massive 4-piston architecture and integrated cooling technology, this system is purpose-built for electric motorcycles (E-Moto) and extreme off-road dirt E-bikes.
🏁 Extreme 4-Piston Performance
- 🔥 Quad-Cylinder Power: The 4-piston caliper provides massive clamping force and superior modulation for heavy-duty vehicles.
- 🌡️ Advanced Cooling: All F-Series models come standard with heat-dissipating cooling pads to eliminate brake fade.
- 🛡️ Premium Finish: Features high-end Anodized surface treatment for maximum corrosion resistance and durability.
⚙️ Universal Specifications (All F-Series)
- 🔹 Caliper Type: High-Performance 4-Piston (Four-Cylinder)
- 🔹 Hydraulic Fluid: Premium Mineral Oil
- 🔹 Material: Forged Aluminum Alloy
- 🔹 Hand Grip: 3-Finger / 4-Finger Lever
- 🔹 Compatible Rotors: 160MM / 180MM / 203MM
- 🔹 Surface Treatment: Plastic Spraying, Painting, and Anodic Oxidation
- 🔹 Safety Feature: 3A Mechanical Contact Power-Off Sensor
- 🔹 Brake Linings: Included High-Performance Heat Dissipation Pads
📊 Model Comparison Chart
* All F-Series models feature quad-cylinder calipers and cooling pads. Choose based on your preference for visual maintenance and installation style.
| Model | Visual Oil Window | Semi-open Install | Cooling Pads |
|---|---|---|---|

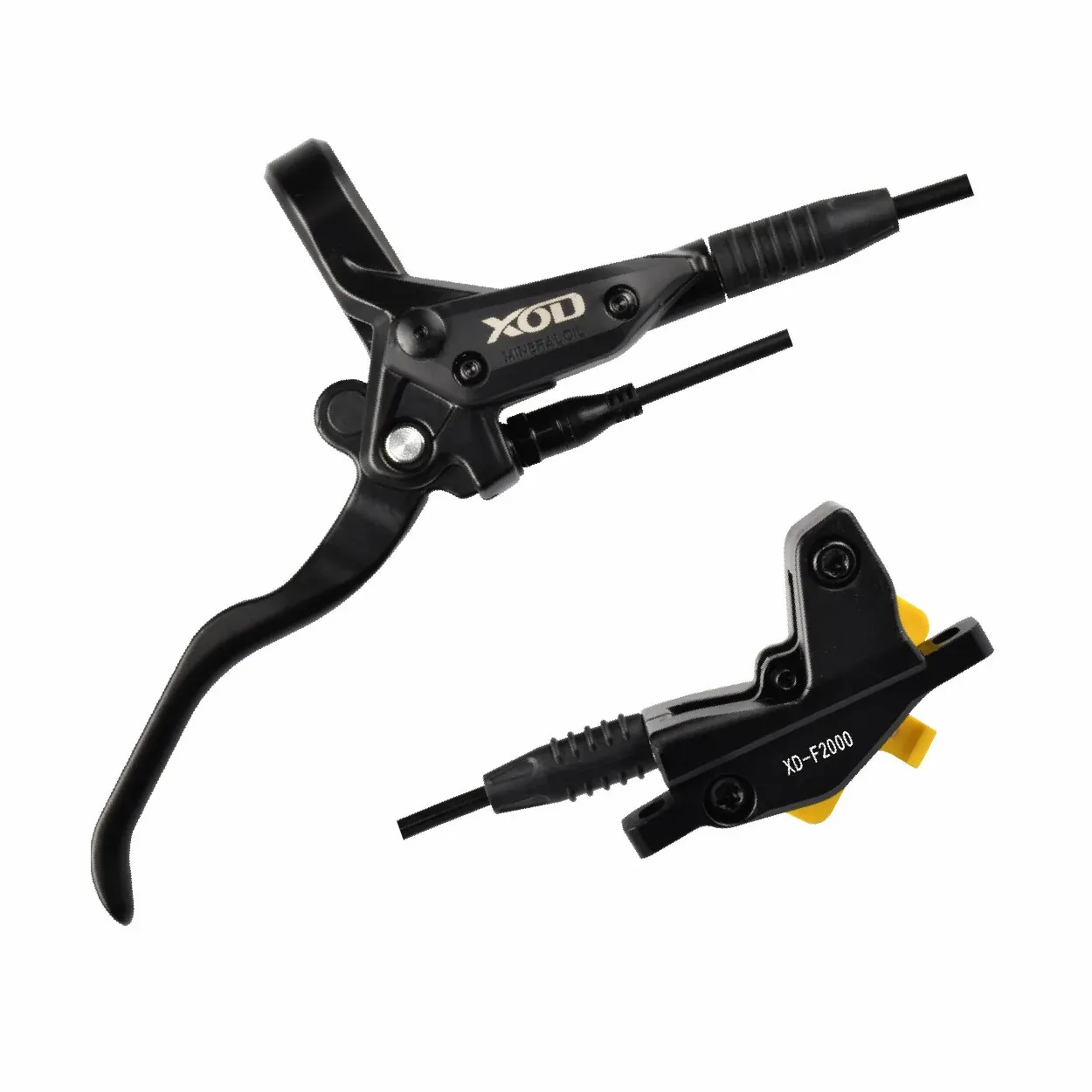

| XD-F2000 | ❌ No | ❌ No | ✔️ Yes |

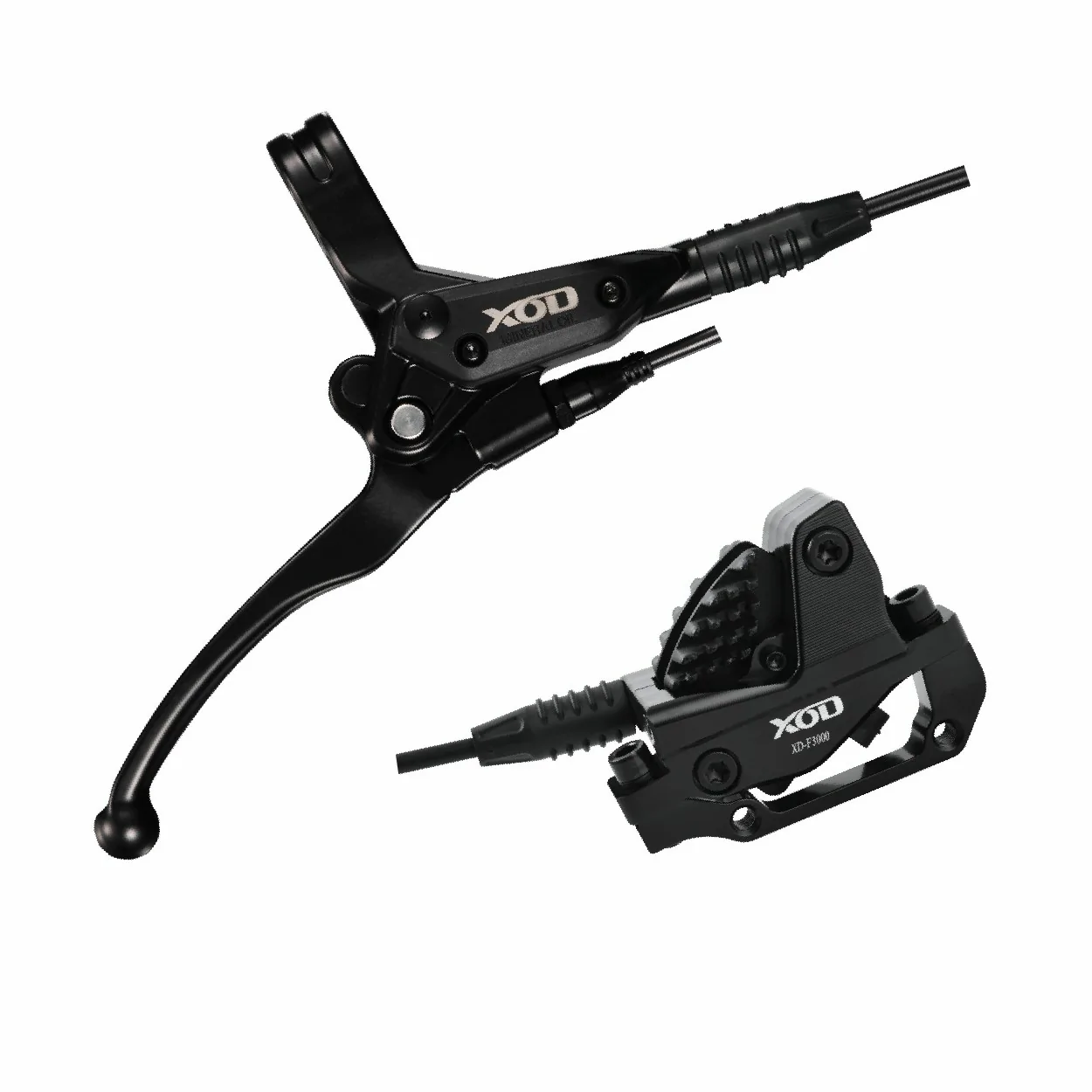

| XD-F3000 | ❌ No | ❌ No | ✔️ Yes |

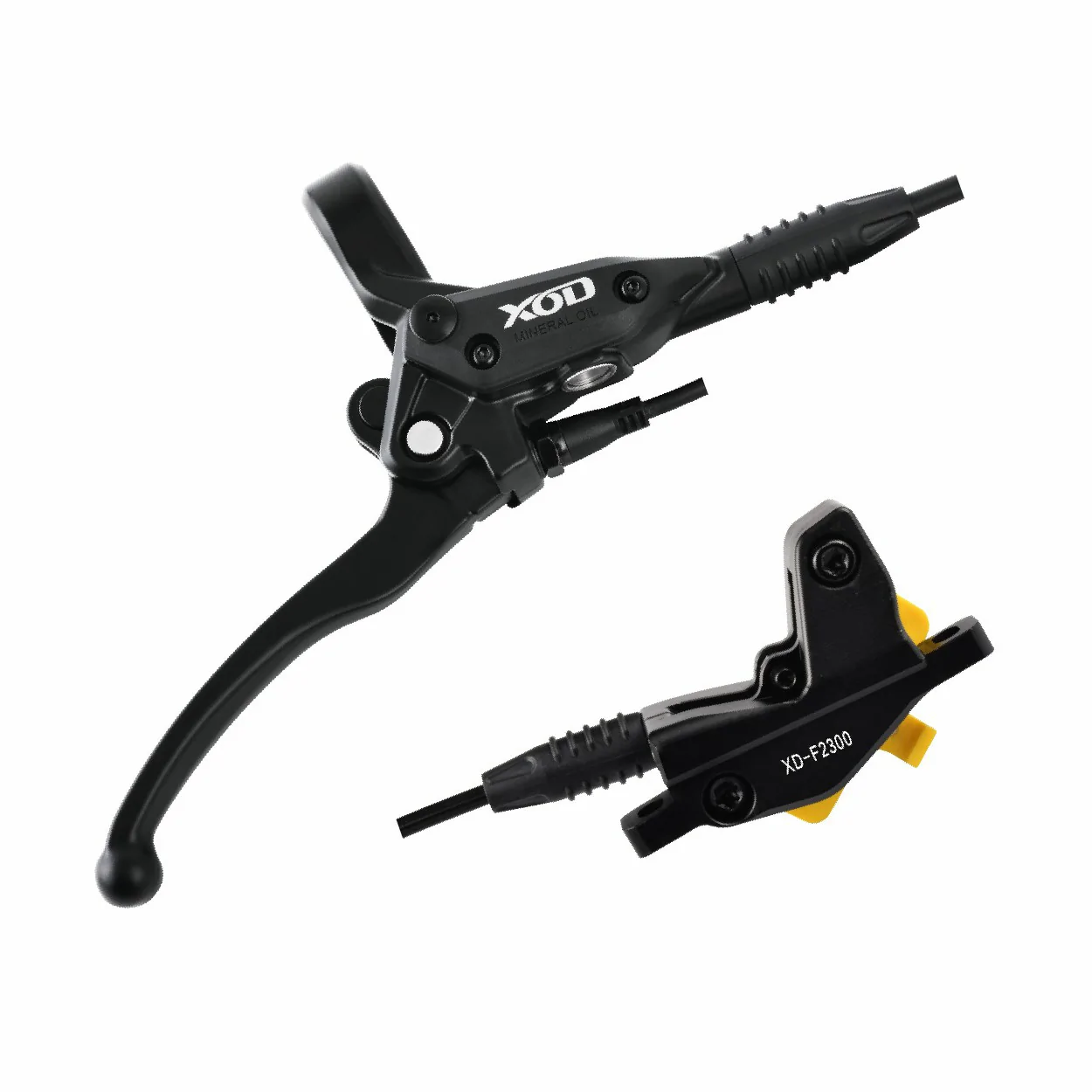

| XD-F2300 | ✔️ Yes | ❌ No | ✔️ Yes |

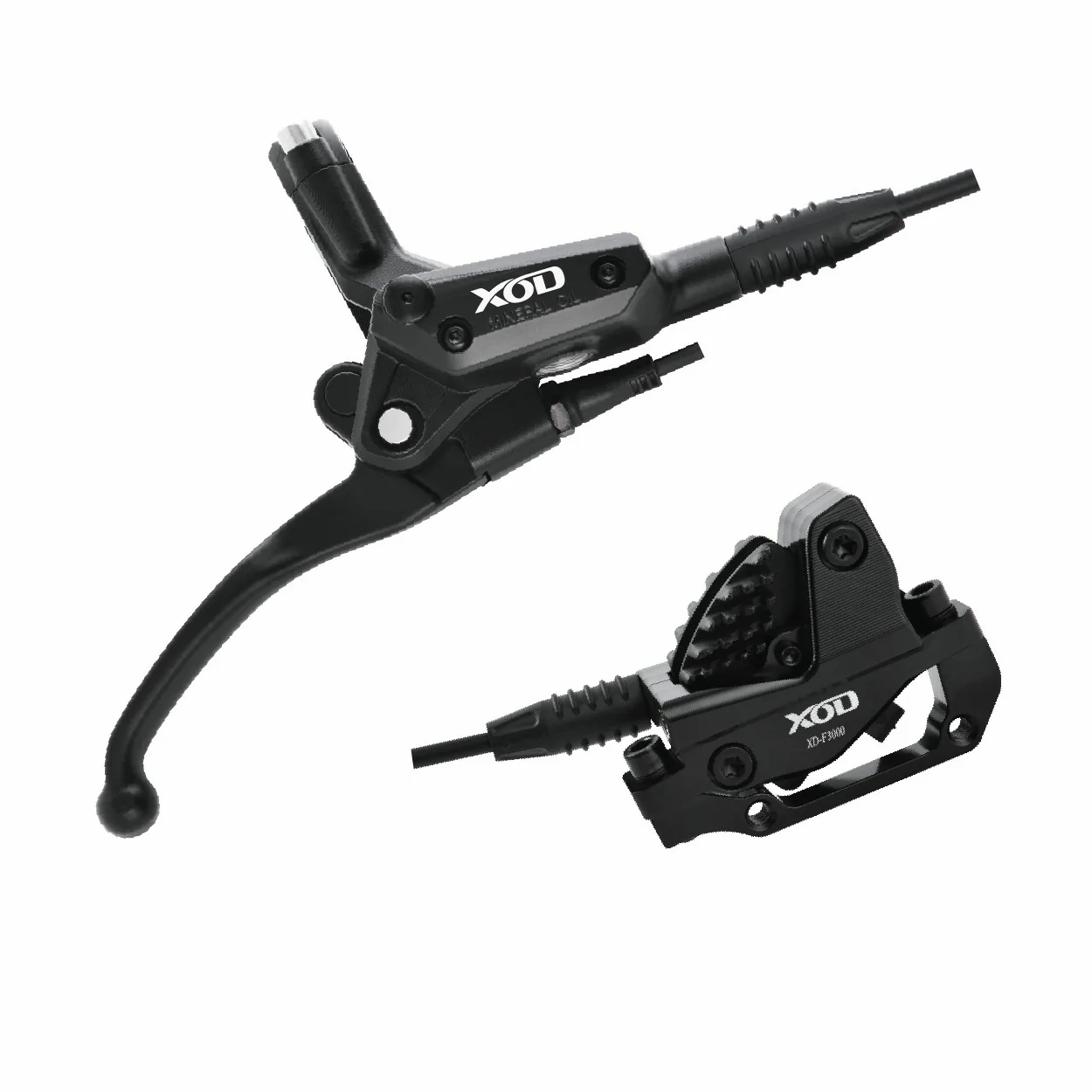

| XD-F3300 | ✔️ Yes | ✔️ Yes | ✔️ Yes |
📦 What's in the Box?
- ✔️ XOD F-Series 4-Piston Brake Levers (Left & Right)
- ✔️ Pre-bled Heavy-Duty Quad-Cylinder Calipers
- ✔️ Built-in 3A Power-Off Sensor Cables
- ✔️ High-Performance Heat Dissipation Pads (Pre-installed)
- ✔️ Mounting Hardware & Reinforced Hoses
