XOD MS-Series Premium CNC Hydraulic Brakes (MS-L100 / MS-L200) - High-End Scooter & E-Bike Modification
Check the selected specification and the product details before ordering. Need help choosing?
Product details & specifications
Review the specifications and product photos for your selected option before ordering.
View product detailsWhat is included?
Package contents depend on the product and selected option. Refer to the product's listed contents below; accessories shown for installation are not necessarily included.
For riders who demand both peak performance and flawless aesthetics, the XOD MS-Series is the ultimate premium upgrade. Crafted for high-end electric scooters and custom modification builds, this series combines precision CNC engineering with aggressive short-lever ergonomics to deliver a braking experience that looks as sharp as it stops.
💎 Premium CNC Craftsmanship
- ✨ Anodized Finish: Treated with premium anodic oxidation for stunning, corrosion-resistant colors that stand out on any custom build.
- 🤏 1/2-Finger Precision: Designed with an aggressive short lever, allowing for rapid, one-finger braking while maintaining maximum handlebar grip.
- 📐 Adjustable Lever Reach: Features a built-in span adjustment dial, allowing you to perfectly tune the lever distance to match your hand size.
⚙️ Universal Specifications (All MS-Series)
- 🔹 Hydraulic Fluid: Premium Mineral Oil
- 🔹 Handle Material: High-Strength Aluminum
- 🔹 Hand Grip: Short 1-Finger / 2-Finger Lever
- 🔹 Compatible Rotors: 160MM / 180MM / 203MM
- 🔹 Installation Mode: Column Type / Side Type Mount
- 🔹 Surface Treatment: Premium Anodic Oxidation
- 🔹 Ergonomics: Fully Adjustable Reach (Span)
- 🔹 Safety Feature: Integrated Contact Power-Off Switch
📊 Flagship Model Comparison
* Upgrade to the MS-L200 for the ultimate integrated CNC architecture and quad-cylinder stopping power.
| Model | Cylinder (Pistons) | Upper Pump Assembly | Caliper Structure |
|---|---|---|---|

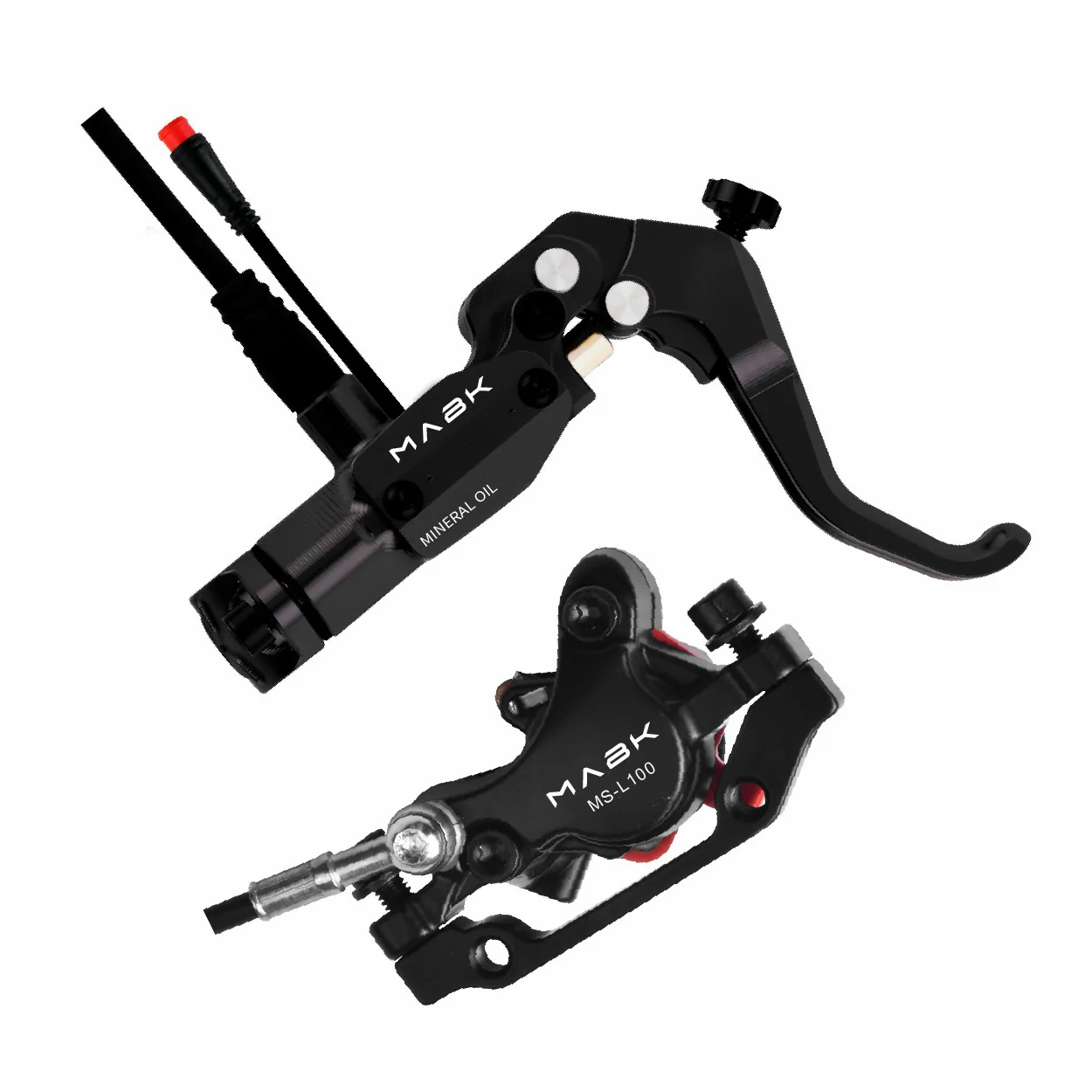

| MS-L100 | 2-Cylinder | Standard Aluminum | Split Type |

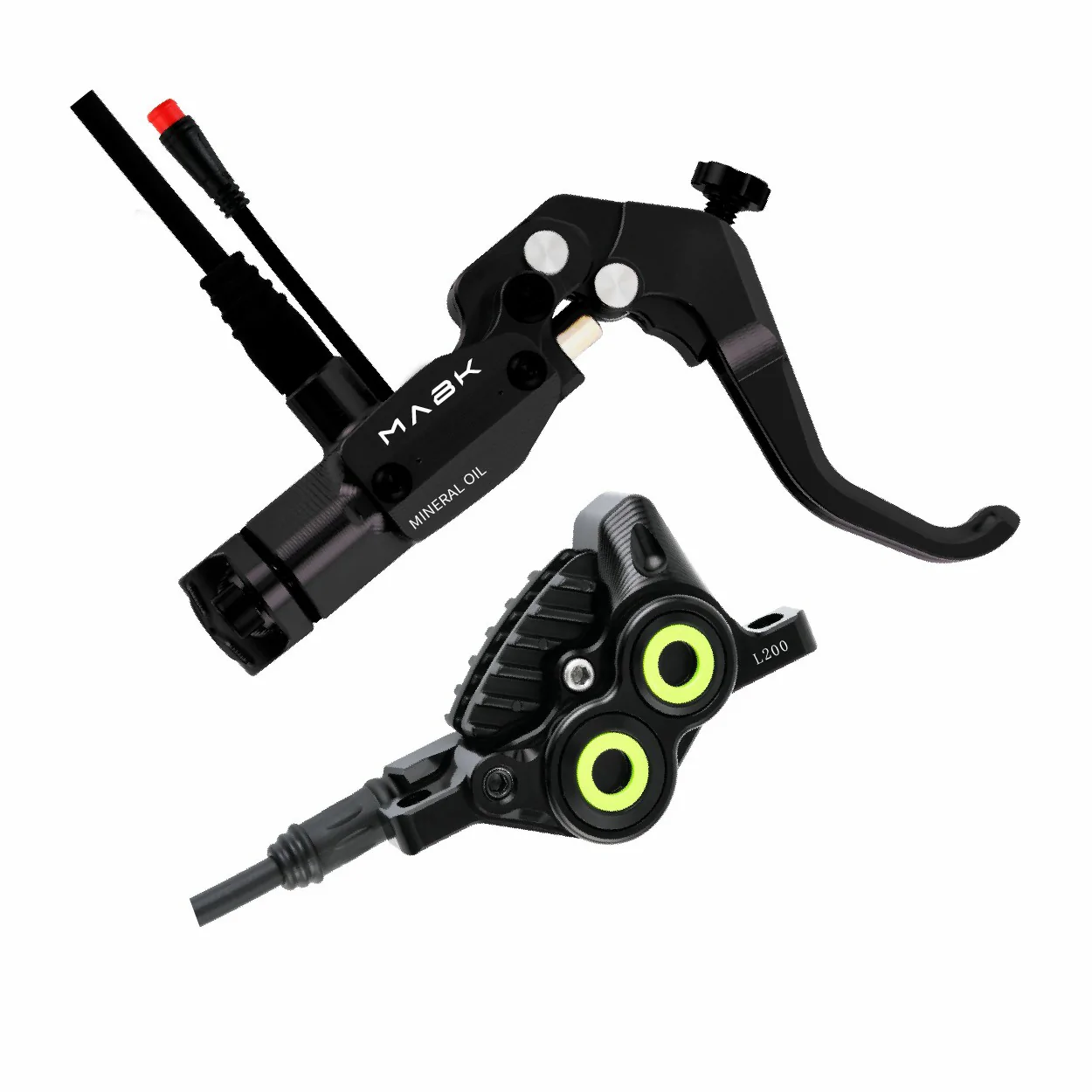

| MS-L200 | 4-Cylinder | CNC Integrated Carved | CNC Integrated Carved |
📦 What's in the Box?
- ✔️ XOD MS-Series Adjustable Brake Levers (Left & Right)
- ✔️ Pre-bled Anodized Hydraulic Calipers
- ✔️ Built-in Power-Off Sensor Cables
- ✔️ Premium Brake Pads & Mounting Hardware
