XOD H800/H880 Hydraulic Brake Upgrade Kit for Ausom Electric Scooters
Upgrade compatible Ausom electric scooters with the XOD H-Series hydraulic brake system. This Ausom upgrade area is designed for riders who want smoother hydraulic braking control, stronger brake response and safer daily riding than many stock mechanical disc brake setups.
Select your Ausom model and brake position carefully. H800 and H880 are different hydraulic caliper versions, and the correct choice depends on your scooter model, brake disc side, caliper mounting position, front fork or rear swingarm structure and spacer requirements.
Quick Fitment Reminder
For Ausom electric scooter brake upgrades, do not choose H800 or H880 only by left-side or right-side appearance. Correct fitment depends on wheel position, brake disc side, caliper mounting direction, rotor size, hose routing, brake lever connector and spacer thickness.
Not sure which version fits your scooter? Read the XOD H800/H880 Fitment Guide or contact XOD with photos before ordering.
Ausom Compatible Reference

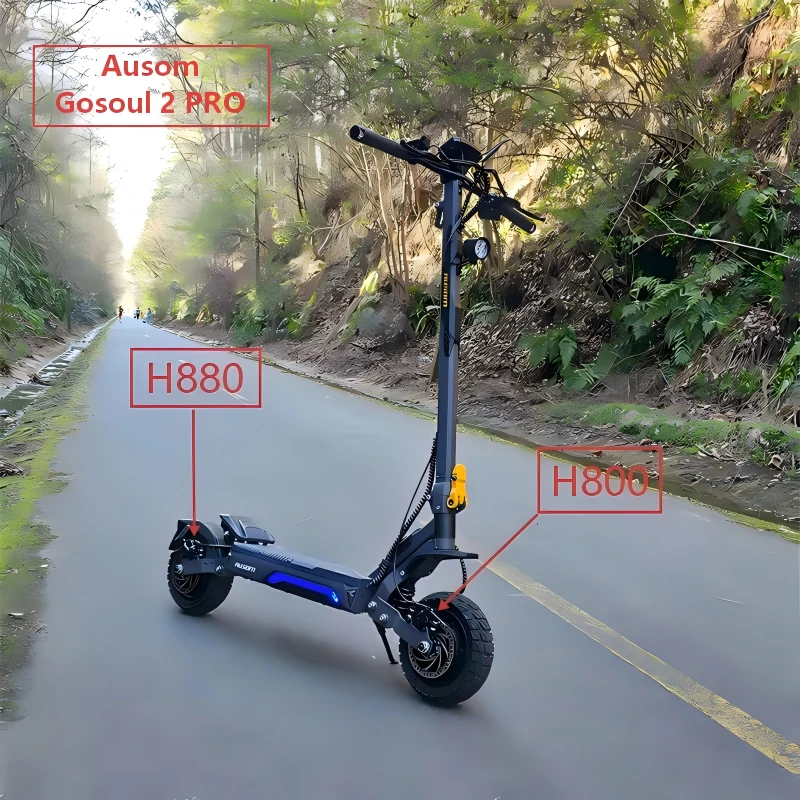

This page is intended for compatible Ausom electric scooter brake upgrade cases, including Ausom Gosoul 2 series, K20 series, DT2 Pro, SR1, F1 Max and selected L-series models. Fitment may vary by model year, brake disc side and mounting structure.
Why Upgrade Your Ausom with XOD?
Replaces mechanical brake feel with smoother lever response and more consistent braking control.
Provides stronger clamping response for compatible Ausom scooter brake upgrade applications.
Designed to cut motor power when the brake lever is pressed on compatible electric scooter wiring systems.
Supports front, rear or full-set upgrade options depending on the selected Ausom model and brake layout.
Before You Order: Send Photos If Unsure
Ausom brake upgrades may require checking the brake disc side, caliper mounting direction and 6-hole disc brake spacer thickness. If you are unsure, send photos before ordering.
These checks help reduce wrong model selection, brake rubbing, incorrect hose routing and unnecessary returns.
XOD H Series Hydraulic Brake Fitment Summary
The XOD H Series is designed for electric scooter and e-bike hydraulic brake upgrade applications. It includes H800/H880 hydraulic brake options used for different wheel positions, brake disc sides and caliper mounting directions.
For electric scooter brake upgrades, H800 and H880 selection should not be based only on left-side or right-side appearance. Correct fitment depends on scooter model, wheel position, brake disc side, caliper mounting position, front fork or rear swingarm structure, rotor size, hose routing and brake lever connector.
Installation Guide
Read the installation guide before fitting the brake system. Hydraulic brake installation affects riding safety, and hose handling may require care.
Read the XOD Hydraulic Brake User Manual & Installation Guide
Technical Specifications +
Mounting Type Note
H800 and H880 are different caliper versions. A-Type and B-Type mounting needs depend on the scooter brake layout and wheel position. Please check your scooter’s caliper mount and brake disc side before ordering.
Important Purchase Notes +
1. Default lever setup:
By default, the left brake lever controls the rear brake, and the right brake lever controls the front brake. If you need a custom setup, contact XOD before installation.
2. Installation experience:
This kit requires careful installation. Although many kits are pre-bled, handling hydraulic hoses requires care. If hoses are disconnected, shortened or adjusted, bleeding may be required.
3. Ausom spacer note:
Some Ausom brake modifications may require 6-hole disc brake washers or spacers. Spacer thickness may vary by model and production year. Please check your original brake layout or contact XOD with photos before ordering.
Frequently Asked Questions +
Q1: Does this fit my Ausom model?
This Ausom upgrade area is intended for compatible Ausom electric scooters, including Gosoul 2 series, K20 series, DT2 Pro, SR1, F1 Max and selected L-series models. Fitment may vary by model year, brake disc side and mounting structure. If unsure, contact XOD with photos before ordering.
Q2: Which kit should I choose?
Choose your Ausom model first, then select front brake, rear brake or full set. If you are unsure whether you need H800 or H880, read the fitment guide or send photos to XOD.
Q3: Can I ride in the rain?
The brake system is designed with a sealed structure for normal riding conditions, but avoid deep water, pressure washing and long-term water immersion. Always check braking performance after wet rides.
Q4: Does the package include brake pads?
Yes, brake pads are included and usually come pre-installed. New brake pads may make some noise during the initial break-in period. After careful use for about 10km, the noise usually decreases.
Q5: Can beginners install this kit?
Beginners should be careful. Hydraulic brake installation affects riding safety. If you are not familiar with hose routing, caliper alignment or bleeding, ask an experienced installer for help.
Related XOD Resources
Need Help Confirming Ausom Fitment?
Send us clear photos of your Ausom scooter’s front wheel, rear wheel, caliper mount and brake lever connector before ordering. XOD can help check the correct H800/H880 version, brake position and spacer requirements.
