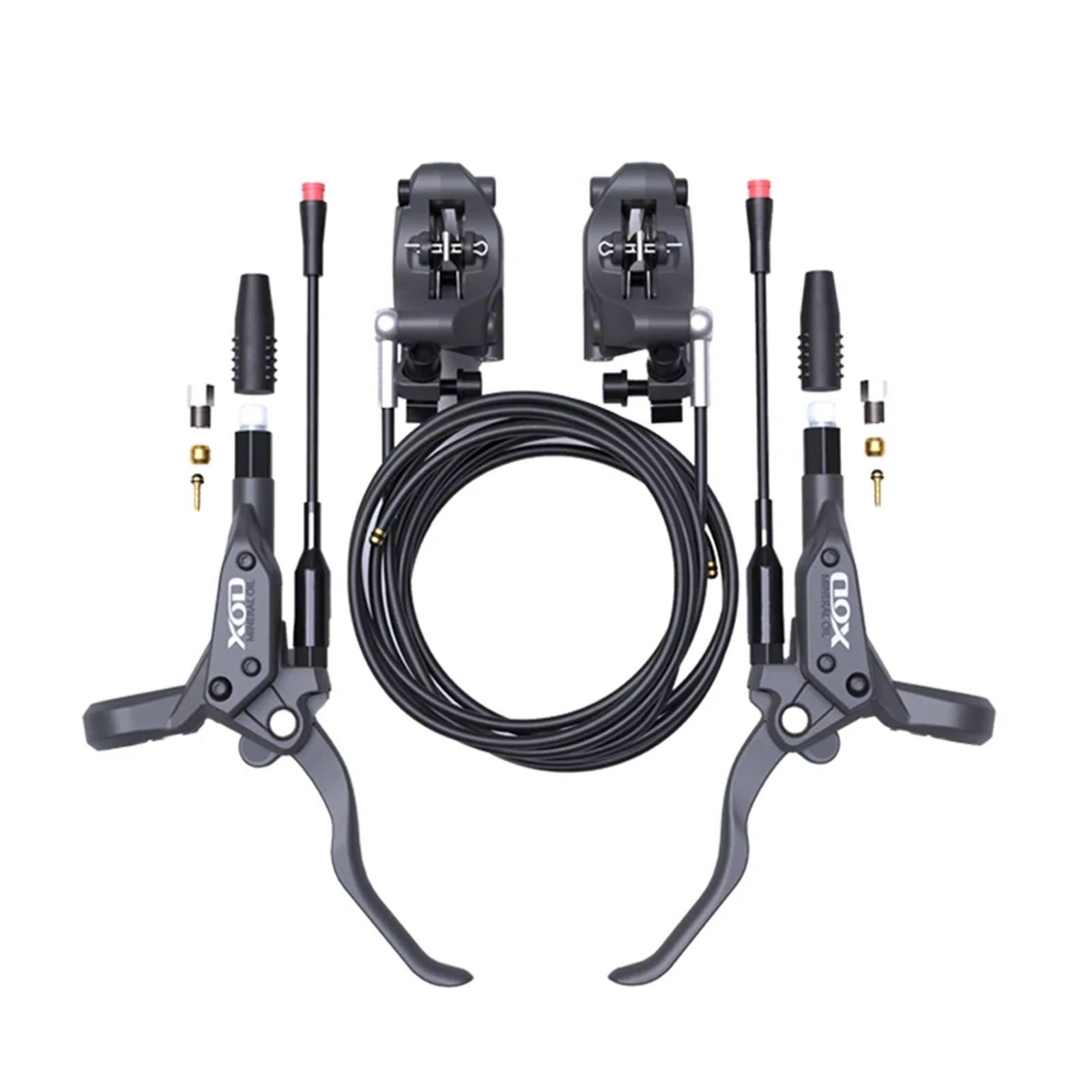

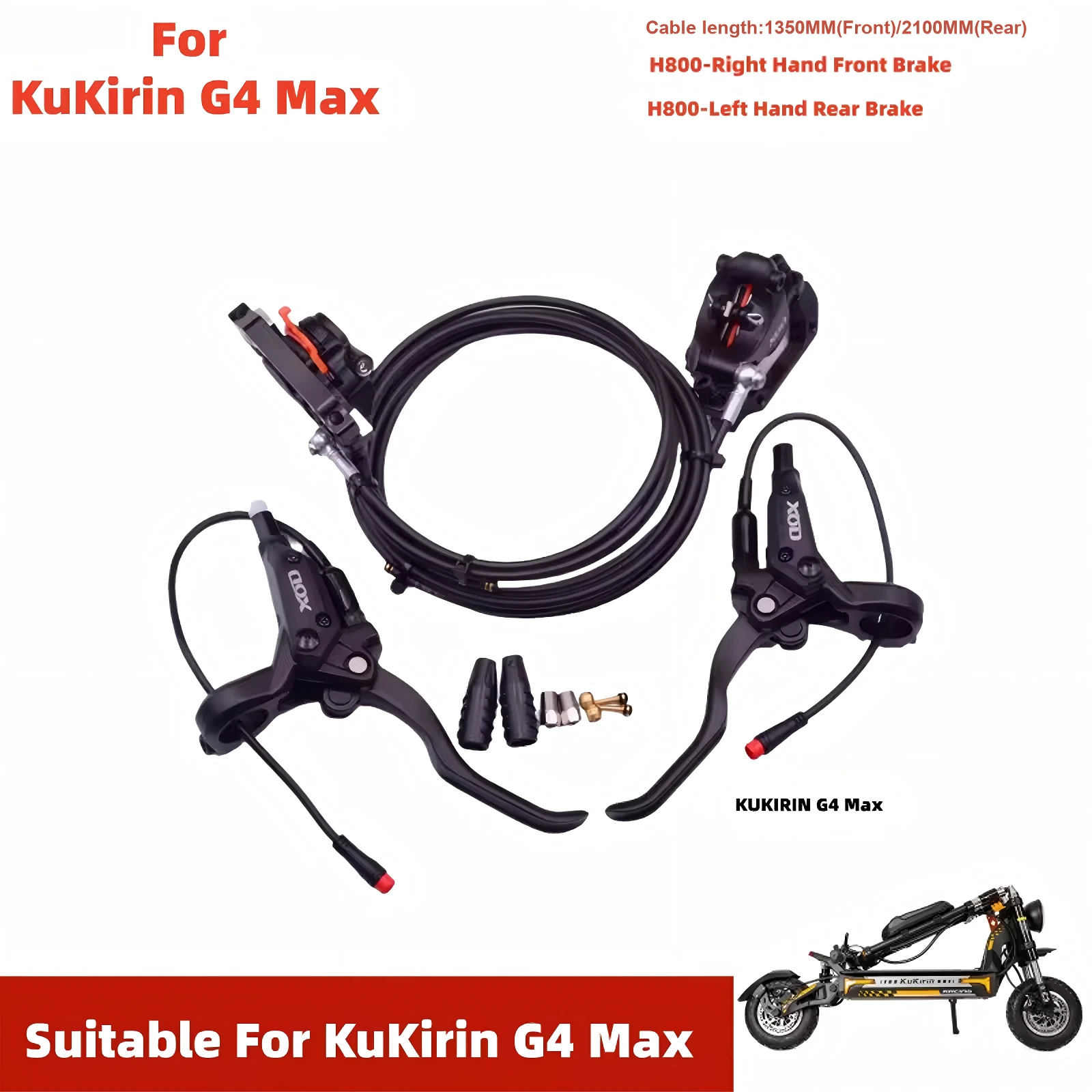

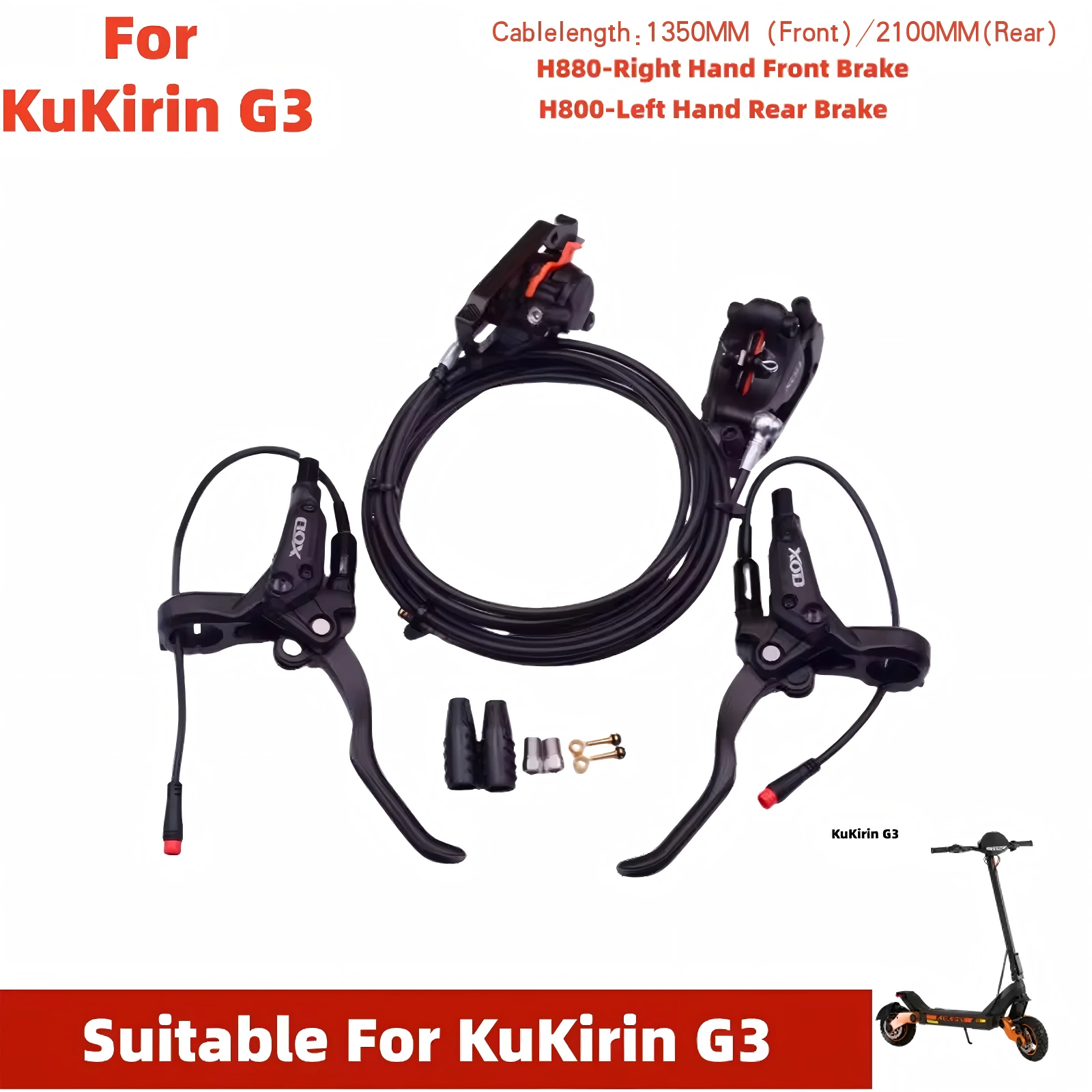

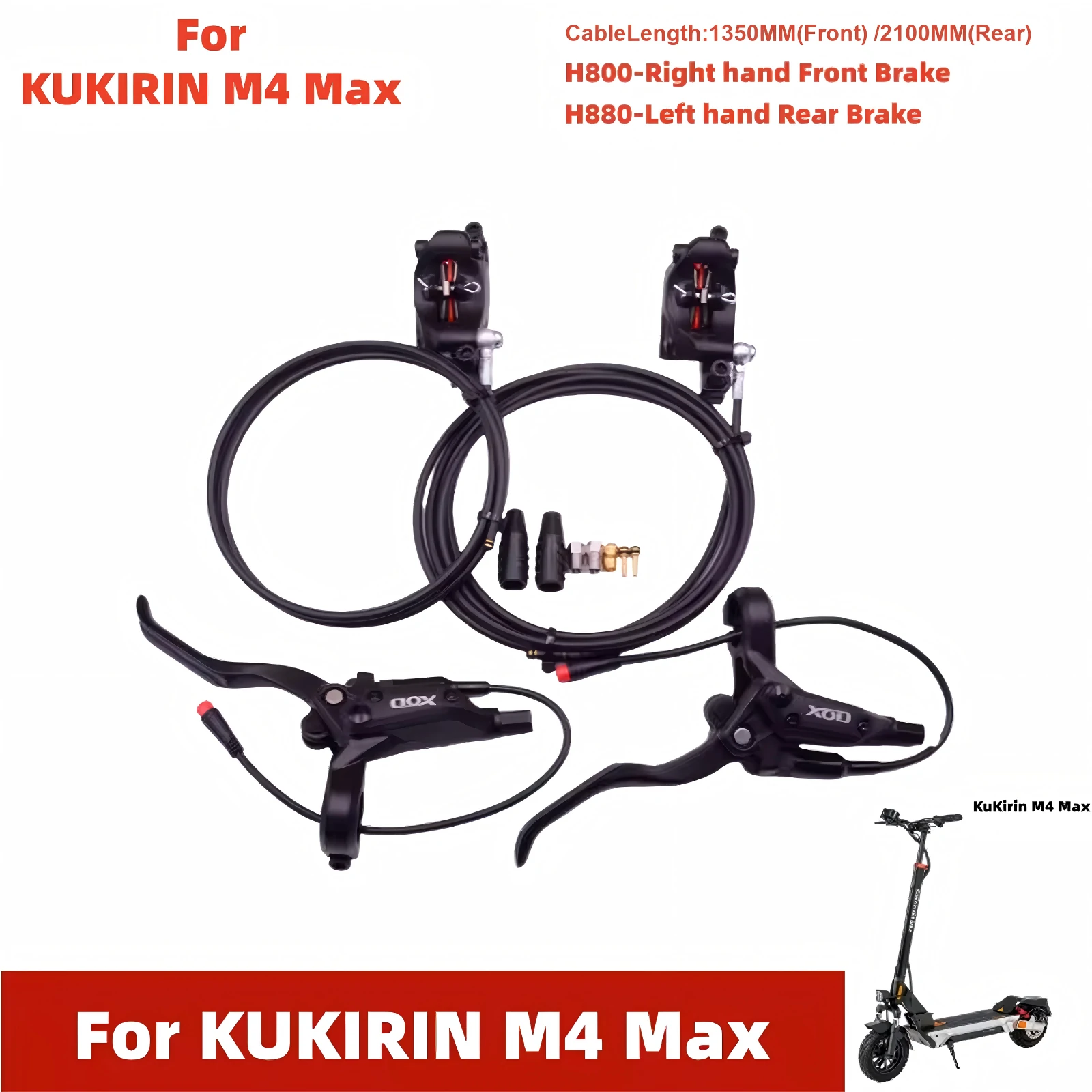

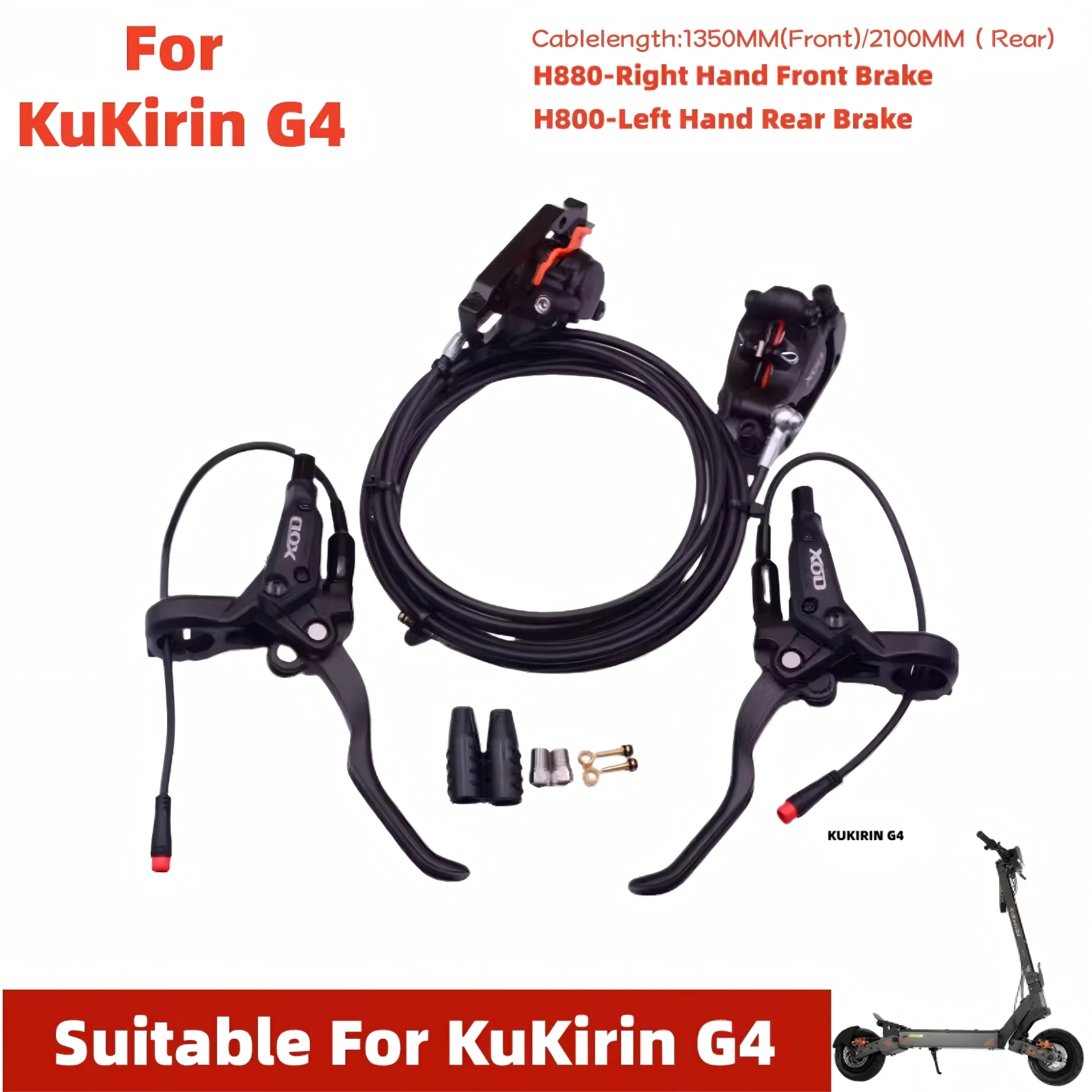

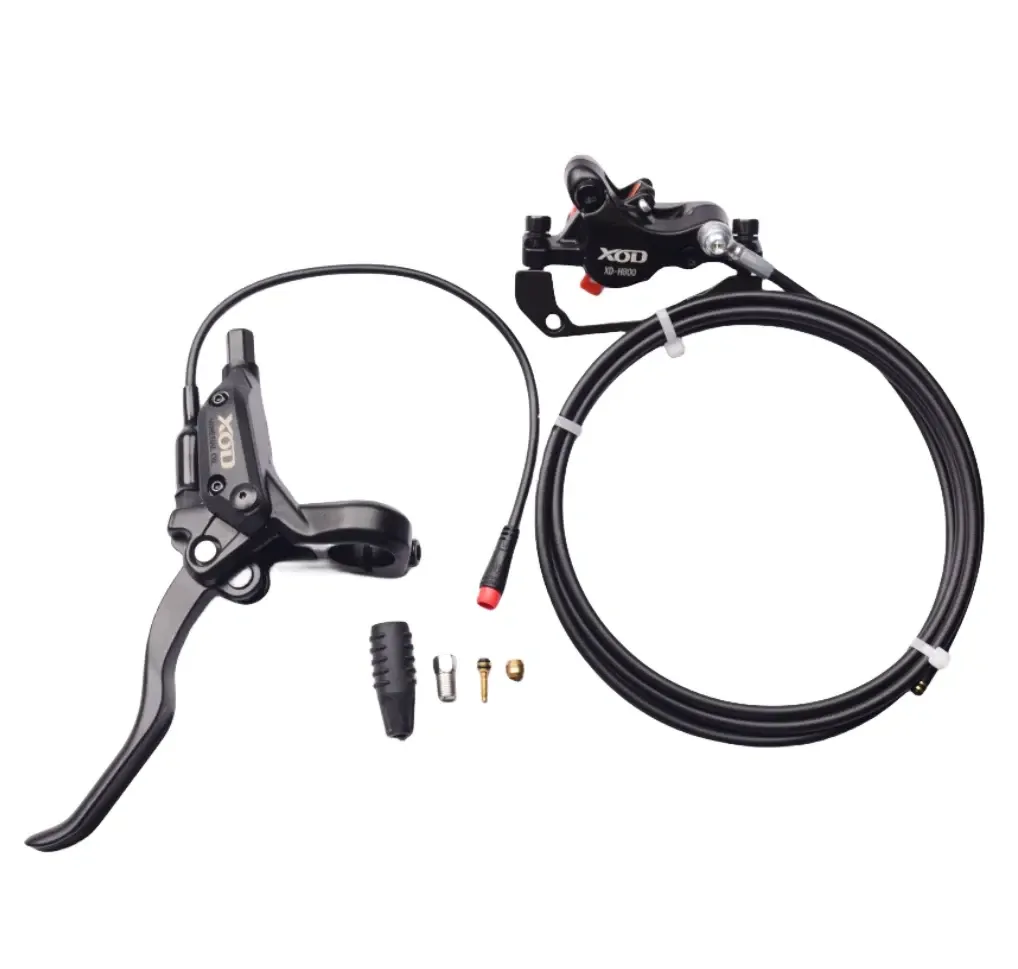

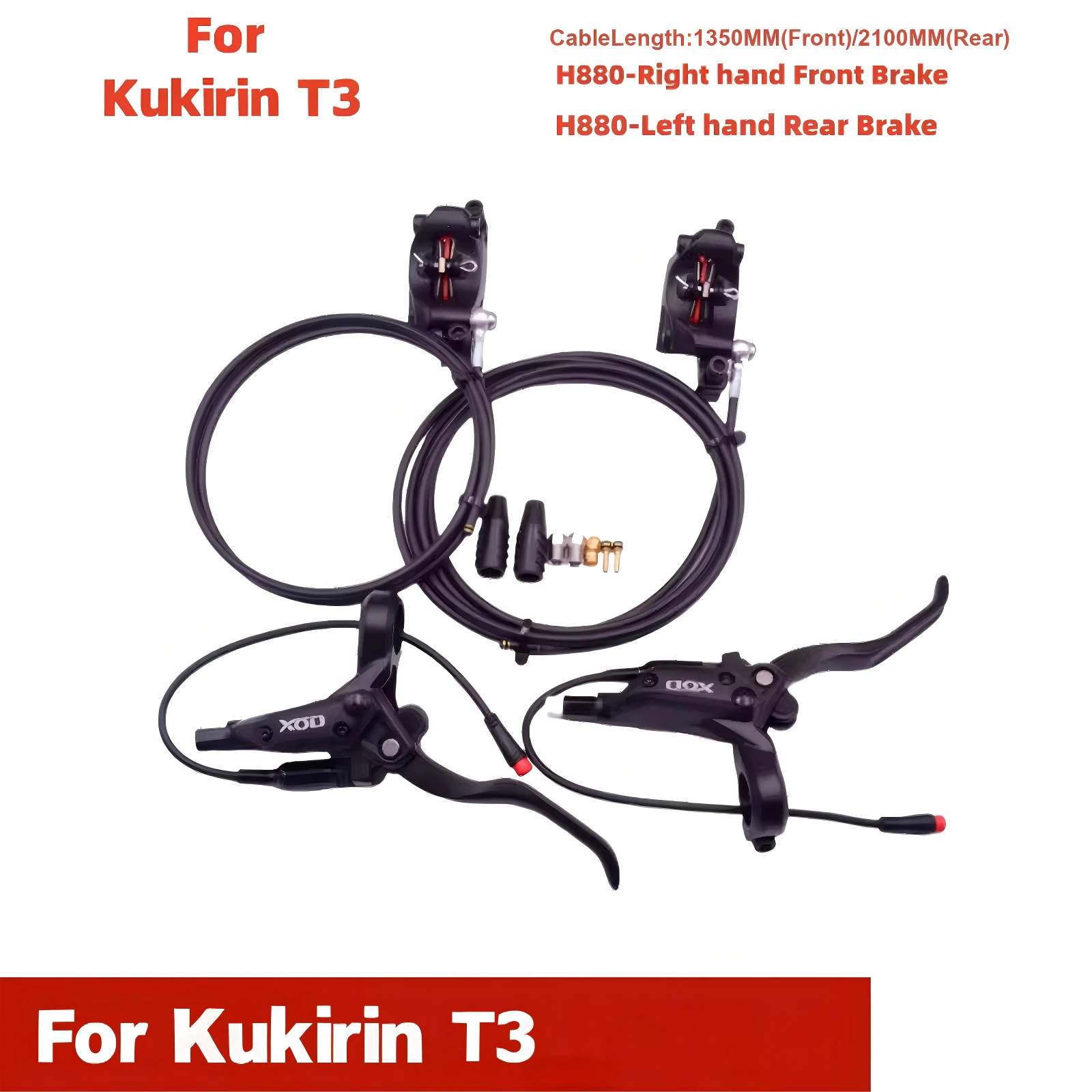

XOD H800/H880 Hydraulic Brake Upgrade Kit for KuKirin Electric Scooters
Upgrade your KuKirin electric scooter with the XOD H-Series hydraulic brake system. Designed for riders who want stronger braking feel, smoother control, and improved safety compared with many stock mechanical disc brake setups.
Select your scooter model and brake position carefully. H800 and H880 are different hydraulic caliper versions, and the correct choice depends on your scooter’s brake disc side, caliper position, front suspension structure, and model year.
Quick Fitment Reminder
For the rear wheel, the brake disc side is usually easier to judge. For the front wheel, do not choose H800 or H880 only by looking at the left or right side. You must also check the front fork type and caliper mounting position.
Not sure which version fits your scooter? Read the XOD H800/H880 Fitment Guide before ordering.

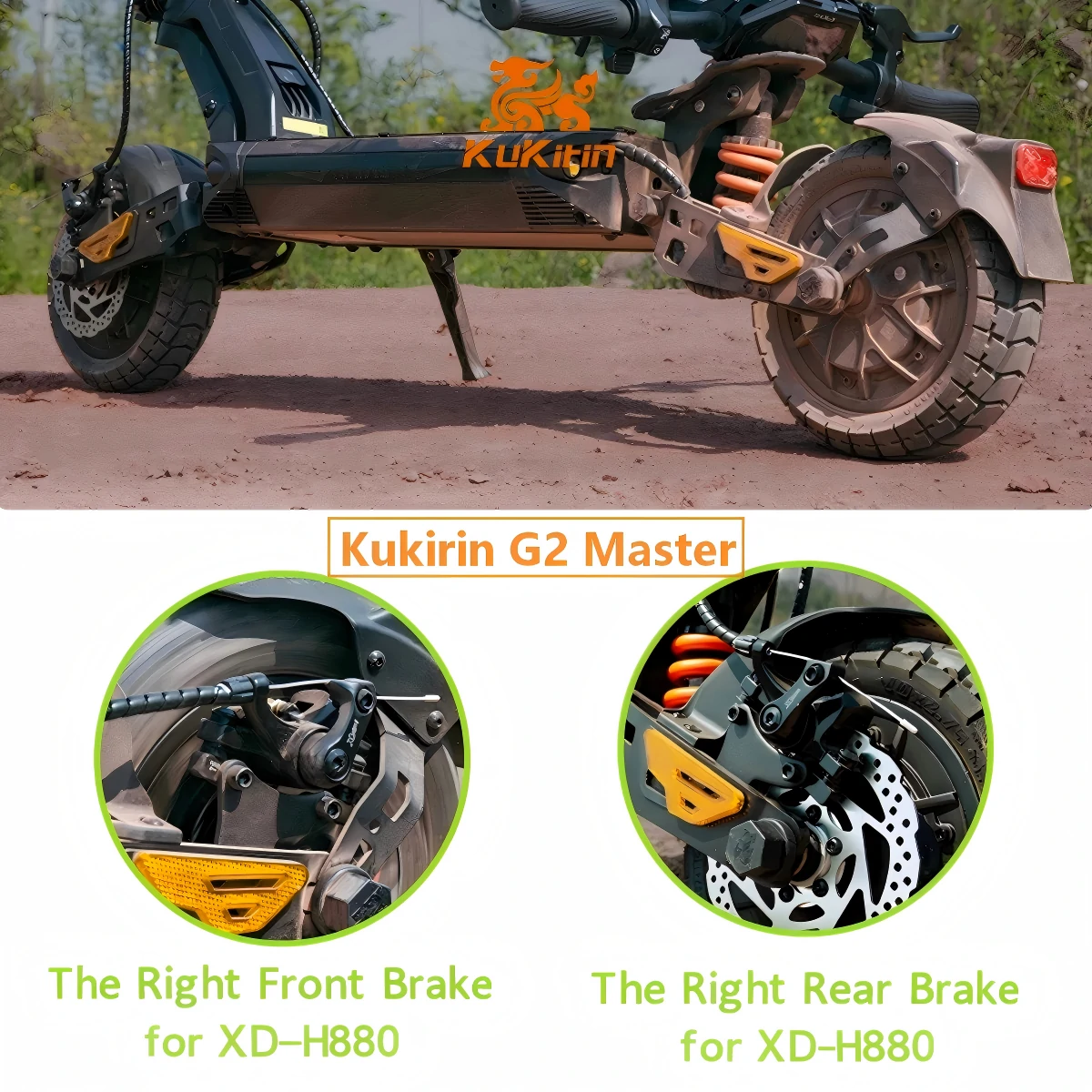

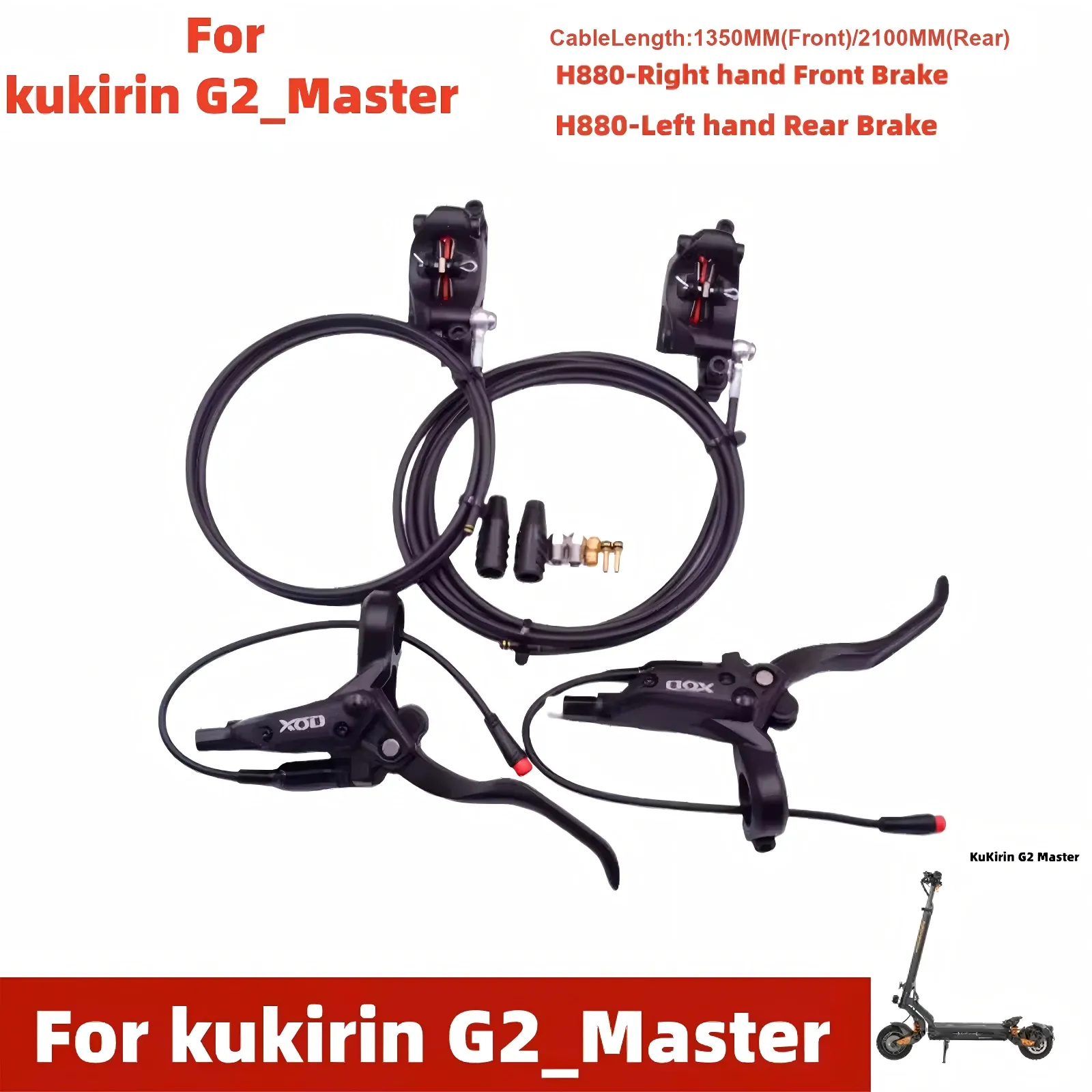

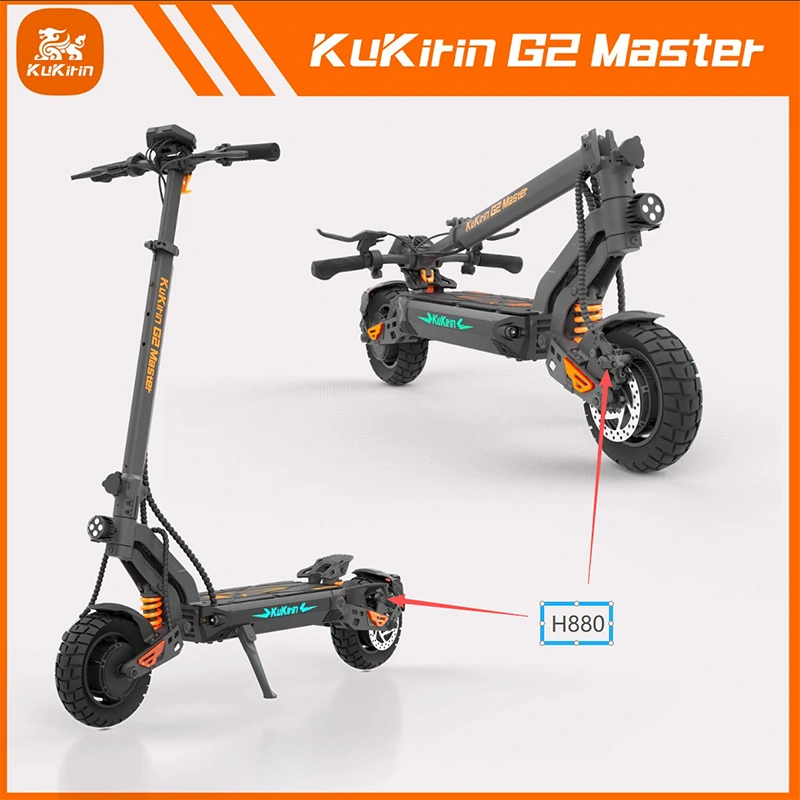

Compatible Scooter Reference: KuKirin G2 Master Electric Scooter 2025 Version
XOD Hydraulic Brake Installation Tutorial
Watch the installation video before starting. Brake installation affects riding safety, so beginners should ask an experienced installer for help.
Why Upgrade to XOD Hydraulic Brakes?

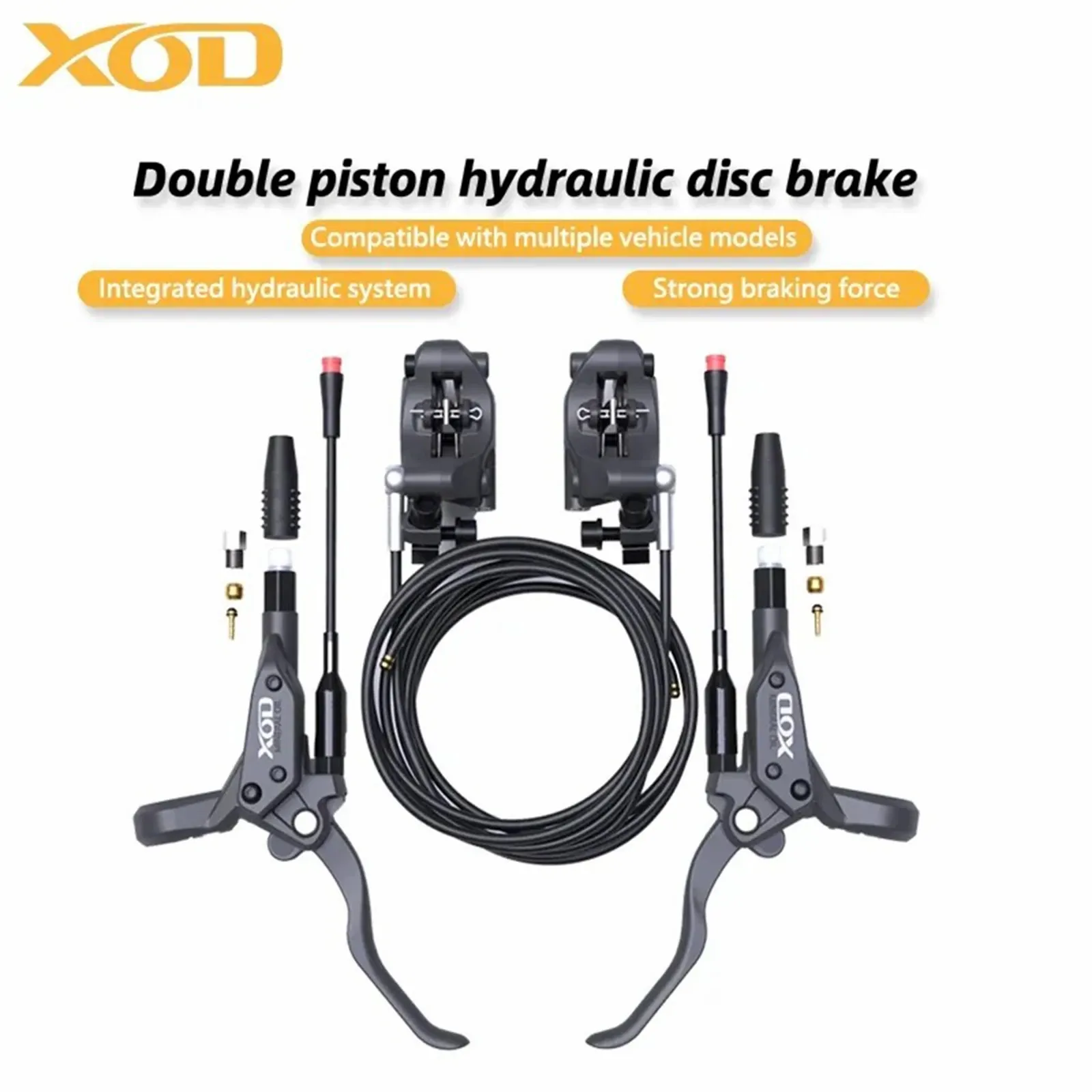

- 💪 Dual-Piston Hydraulic Braking: Provides stronger and smoother braking response than many stock mechanical disc brake systems.

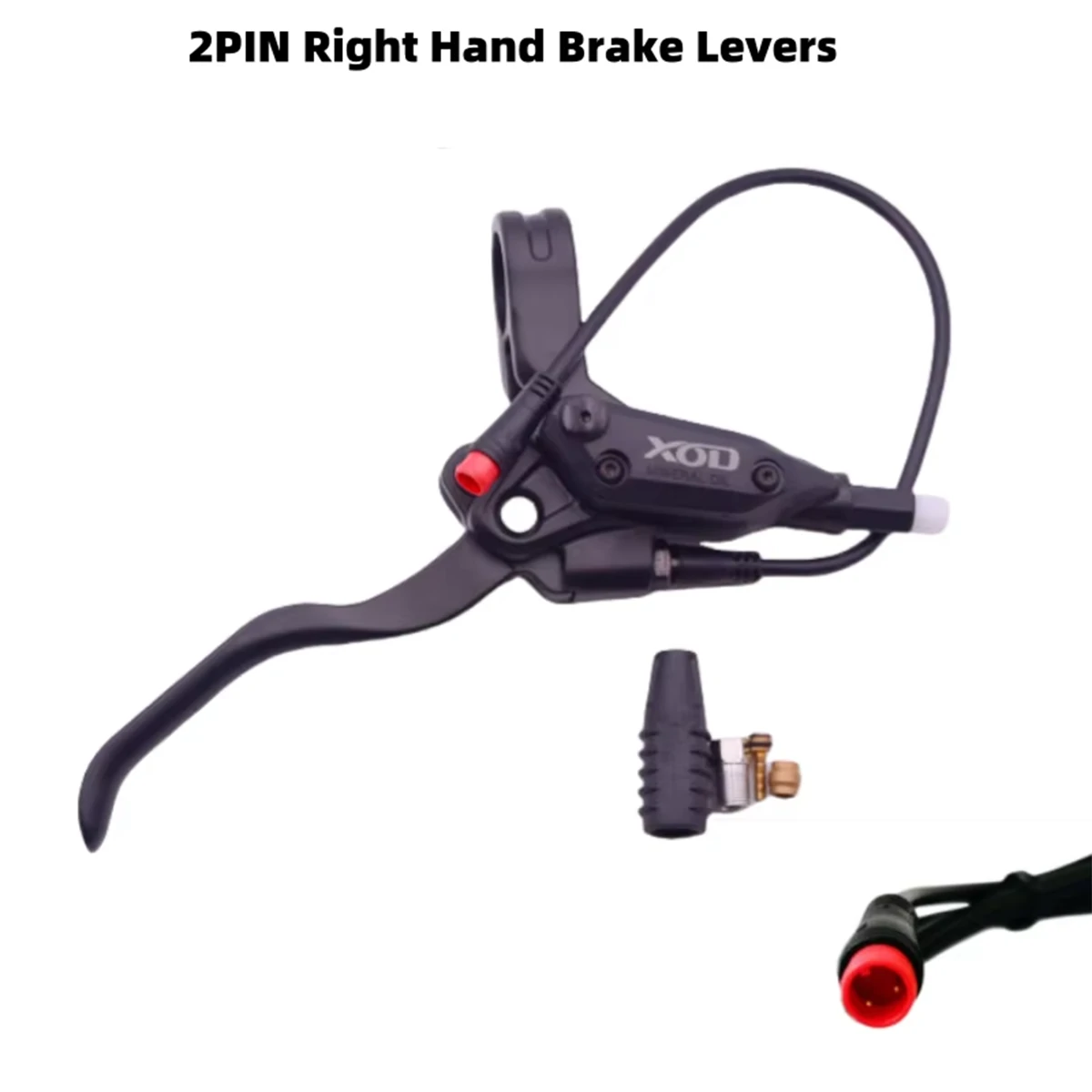

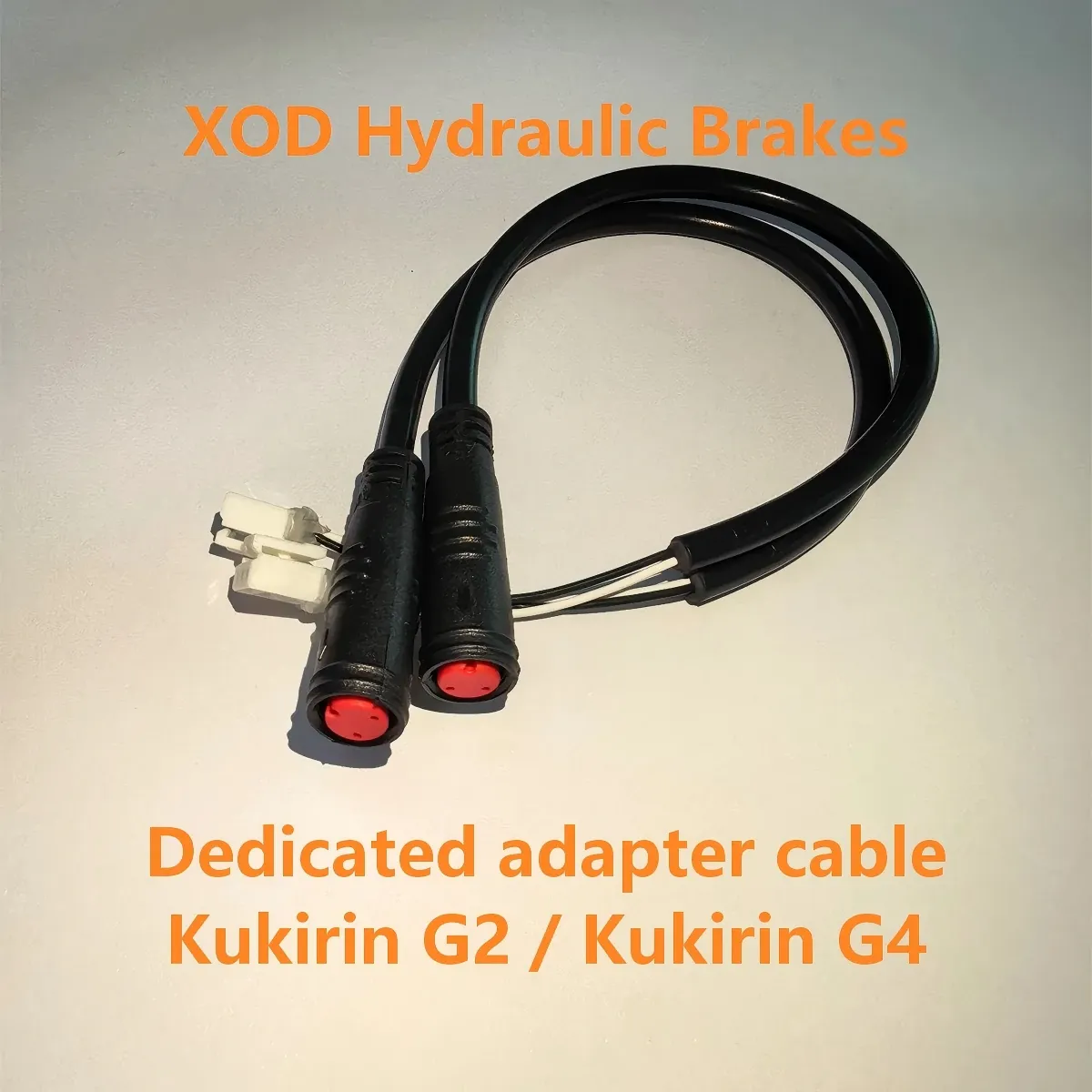

- 🔌 2-Pin Power-Off Sensor: Designed to cut motor power when the brake lever is pressed, helping improve braking safety on compatible scooters.
- 🌧️ Sealed Aluminum Body: Built for daily scooter riding conditions with better protection against dust and splashes than open mechanical systems.
- 🛠️ Split-Connection Design: Designed to support more flexible routing on complex electric scooter frames, including many KuKirin models.
Before You Order or Install
First confirm whether your scooter needs H800 or H880. Then read the installation guide before fitting the brake system.
Technical Specifications +

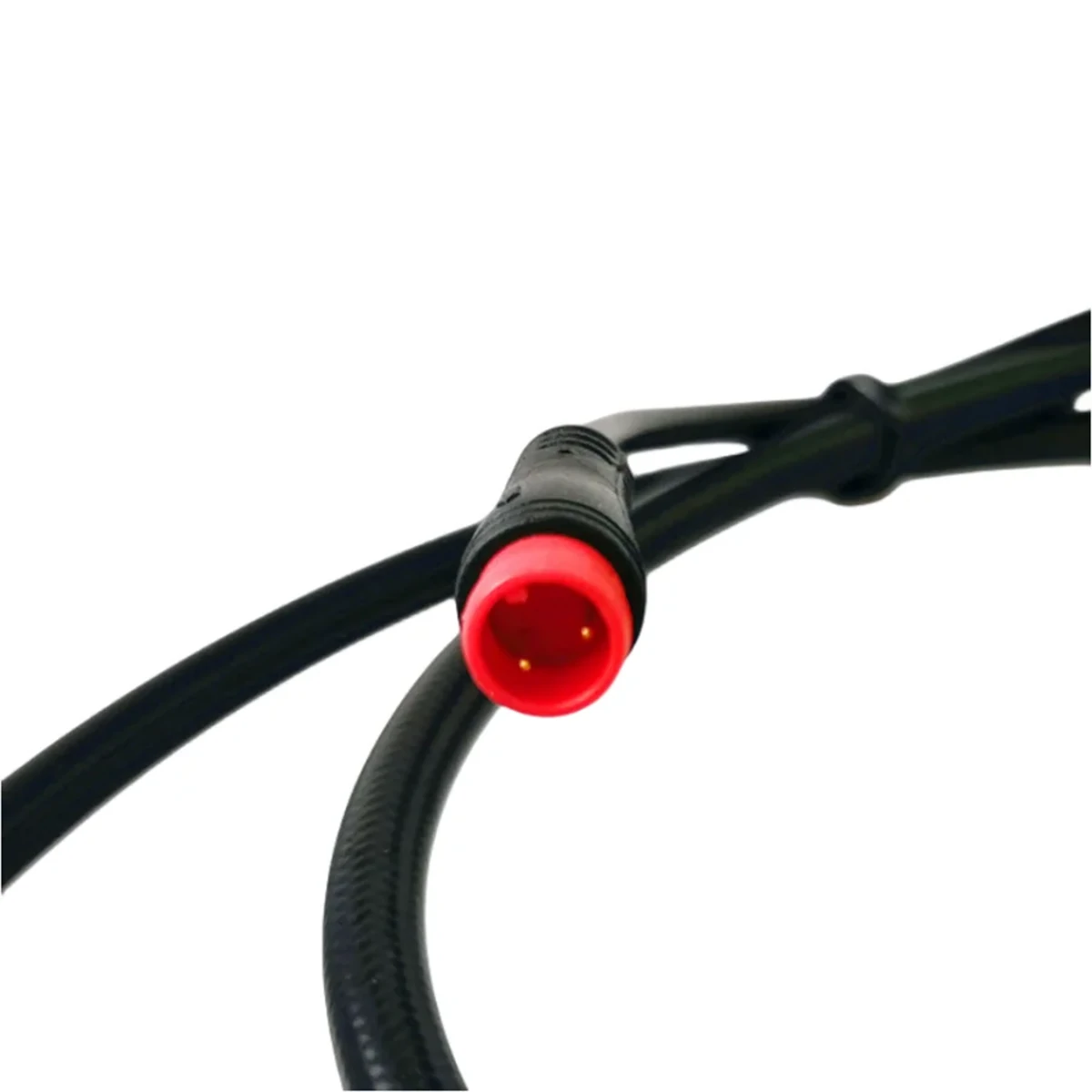

- Sensor Plug: 2-pin waterproof plug
- Caliper: Dual-piston hydraulic caliper
- Material: Forged aluminum alloy
- Power-Off Wire Length: Approx. 20cm

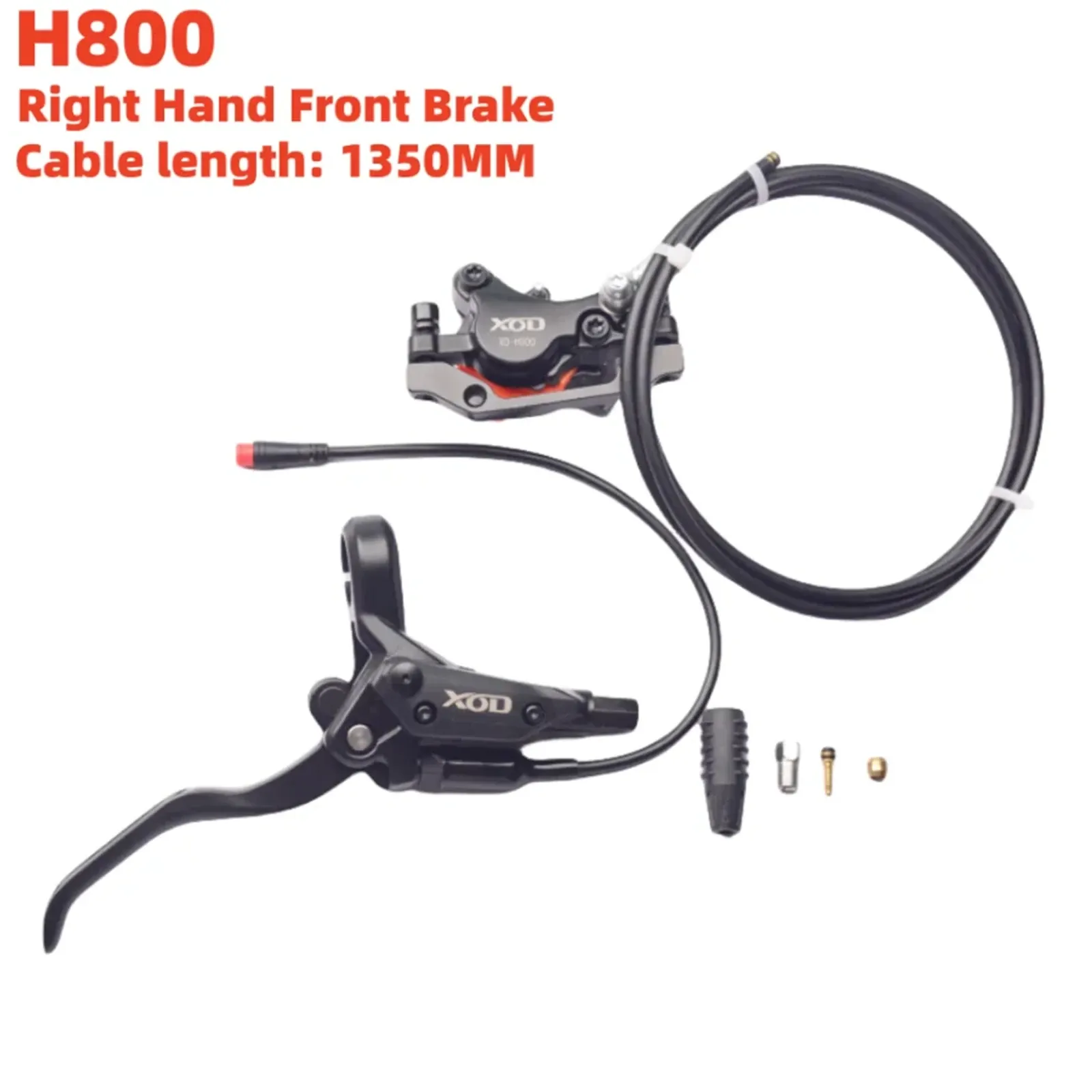

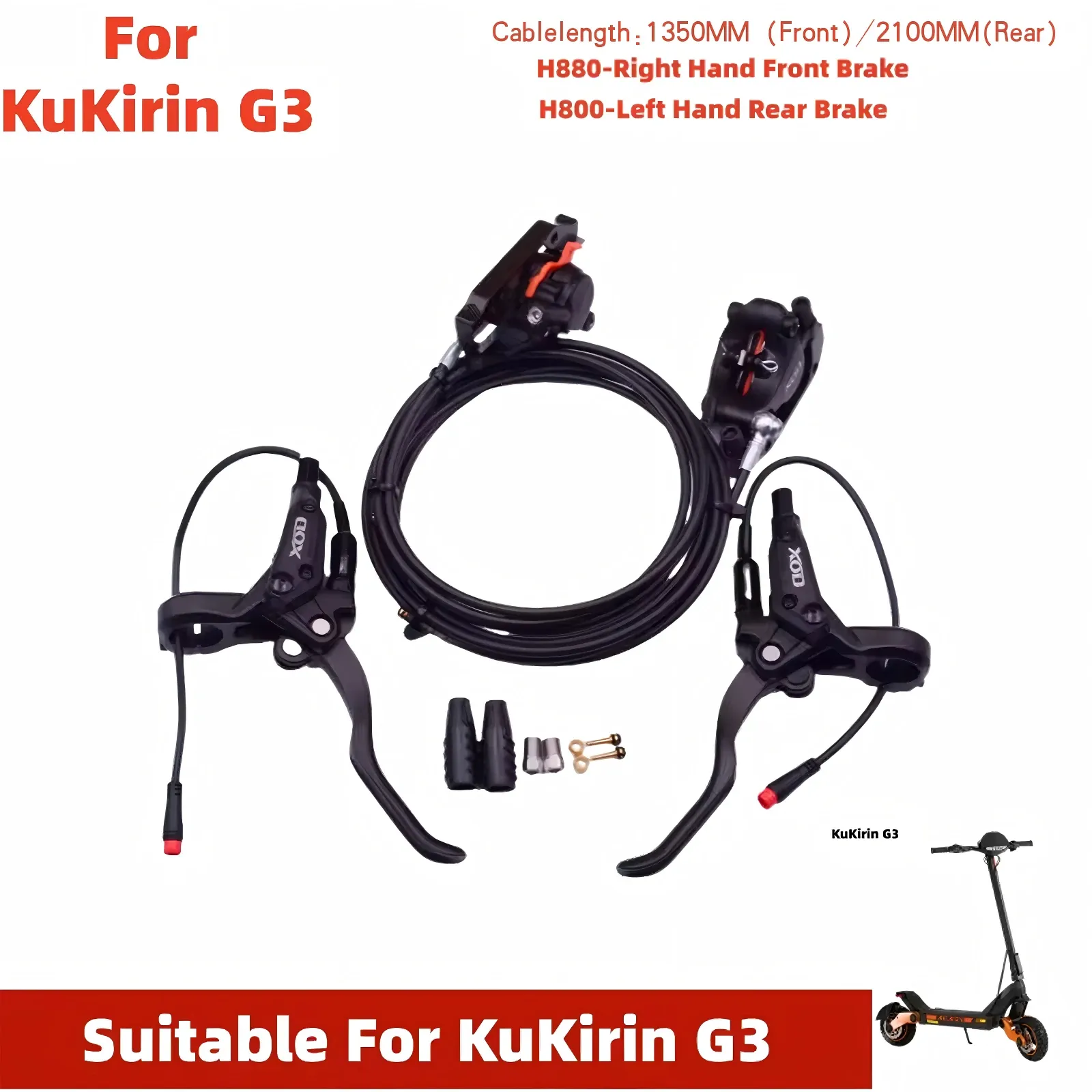

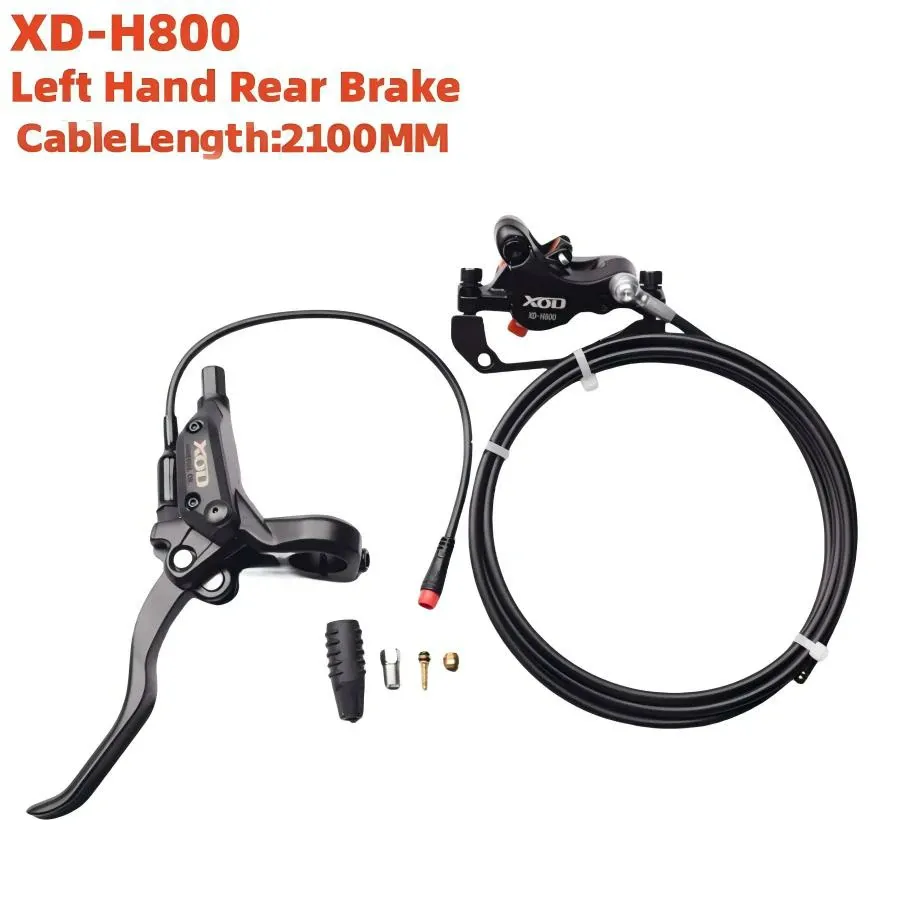

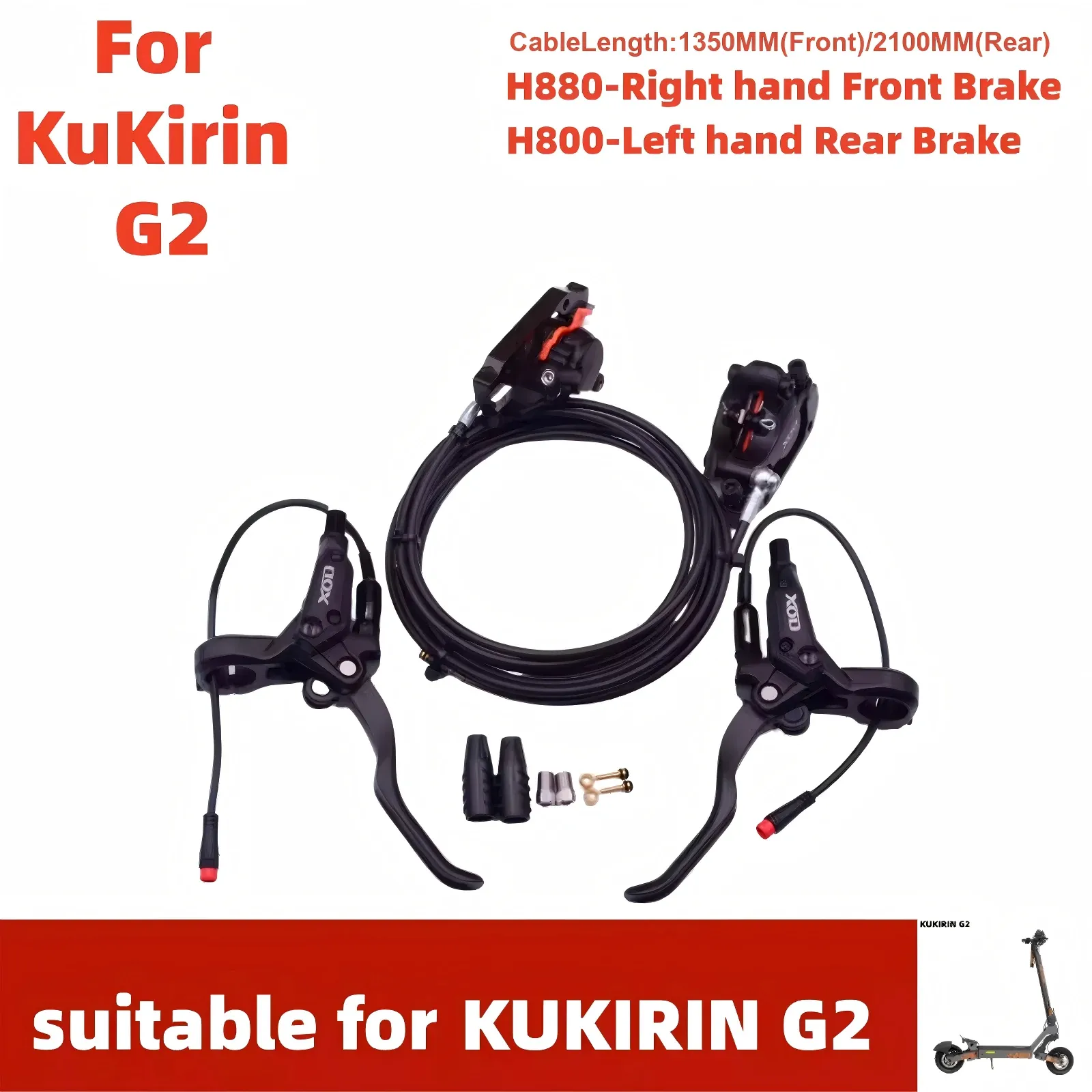

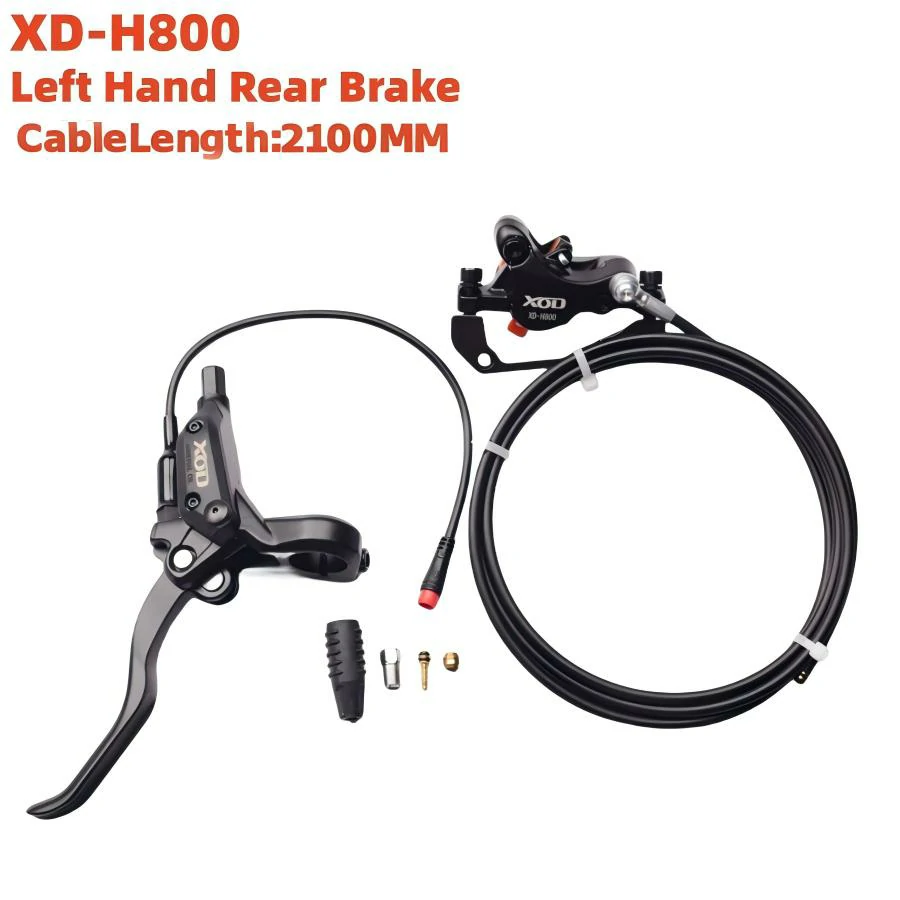

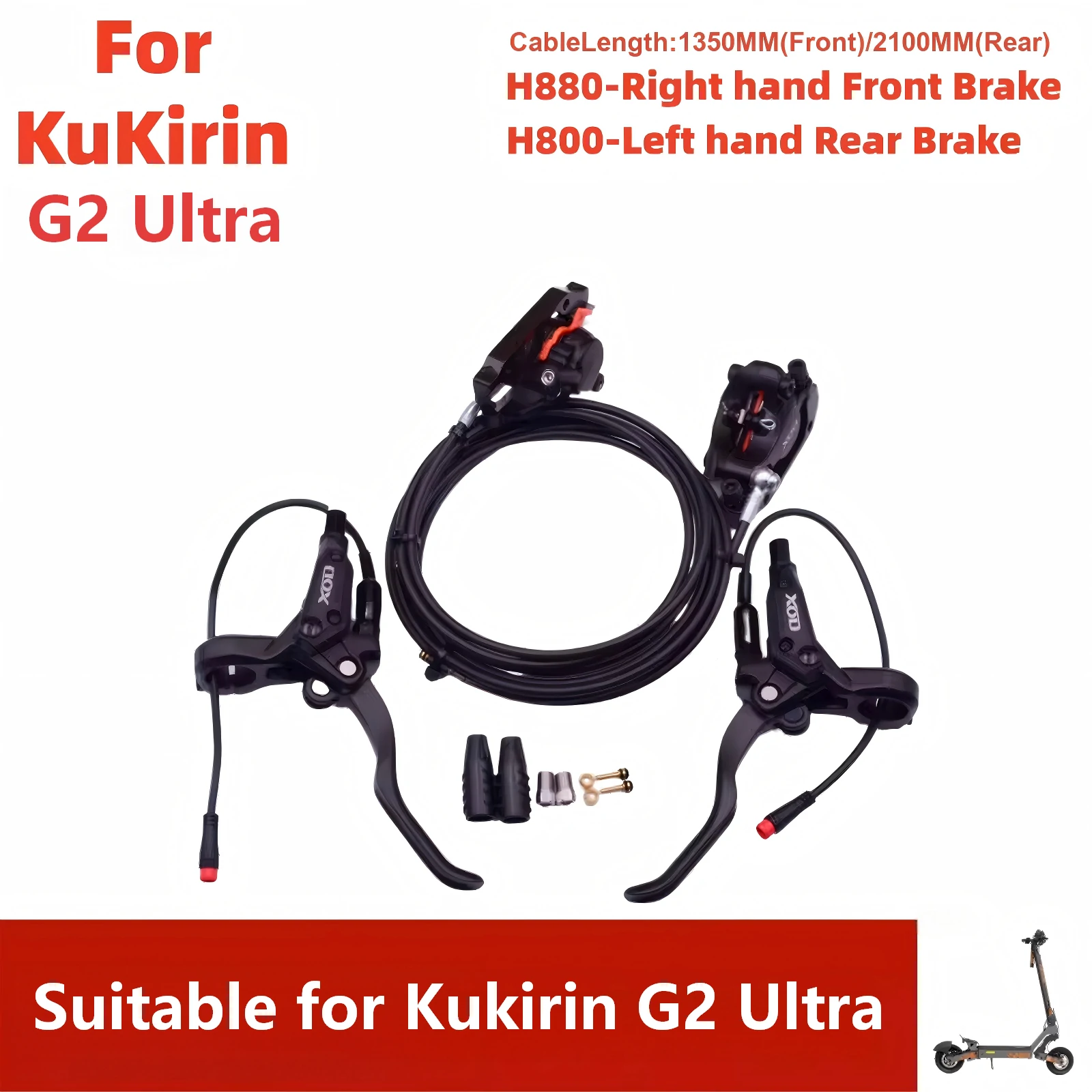

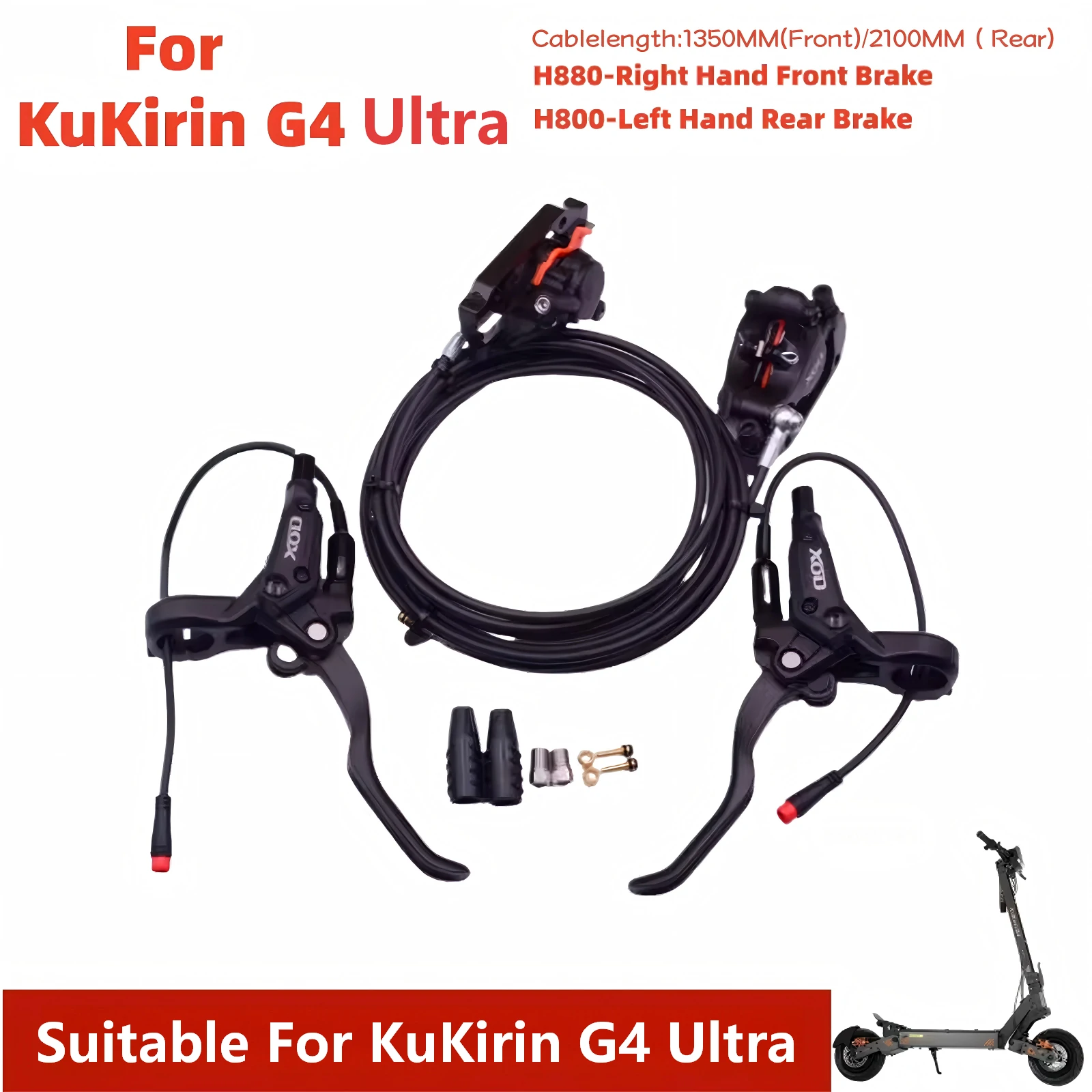

- Hydraulic Hose Length: Front approx. 1350mm / Rear approx. 2100mm
- Compatible Rotor Size: 140mm / 160mm
- Weight: Approx. 1kg per set, depending on selected option

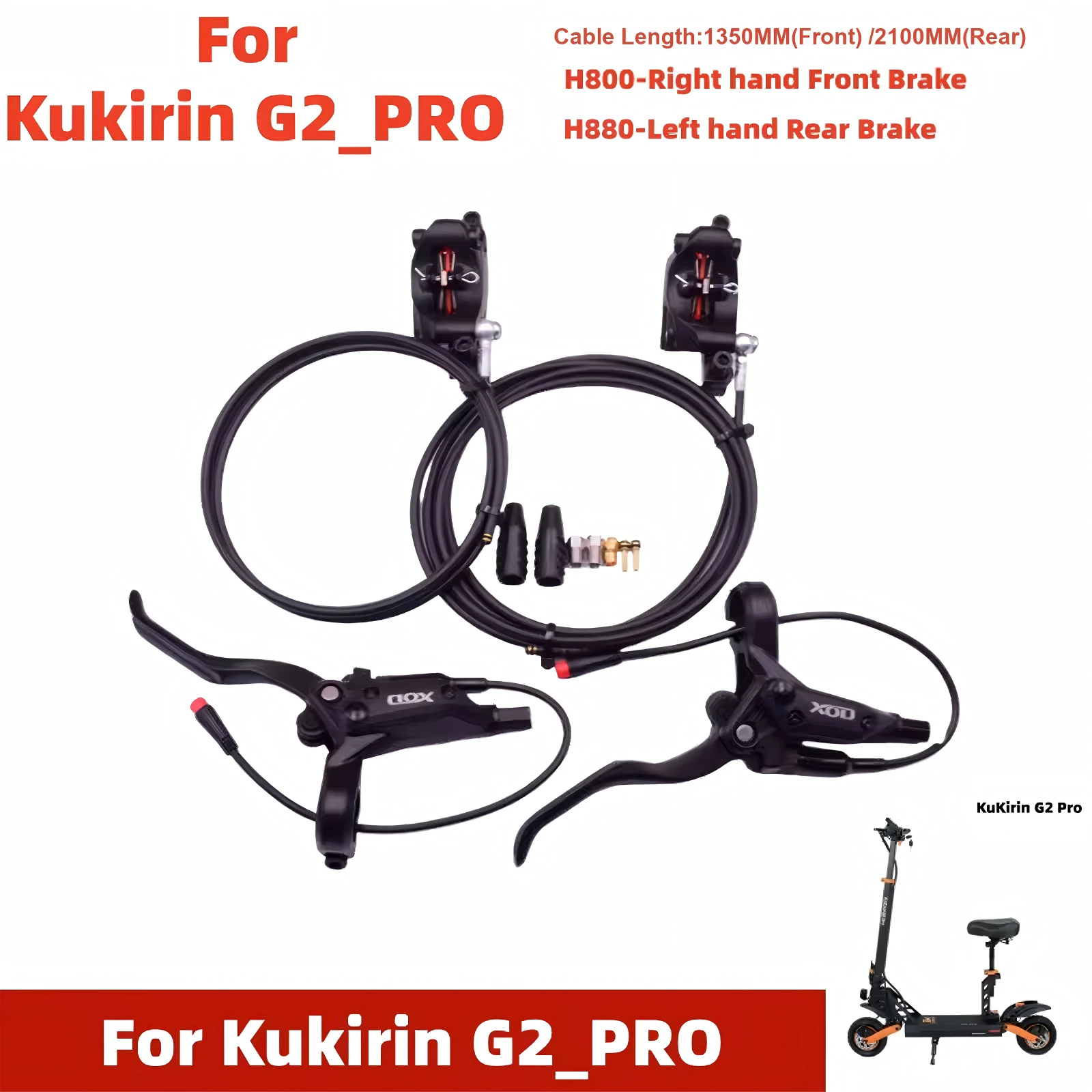

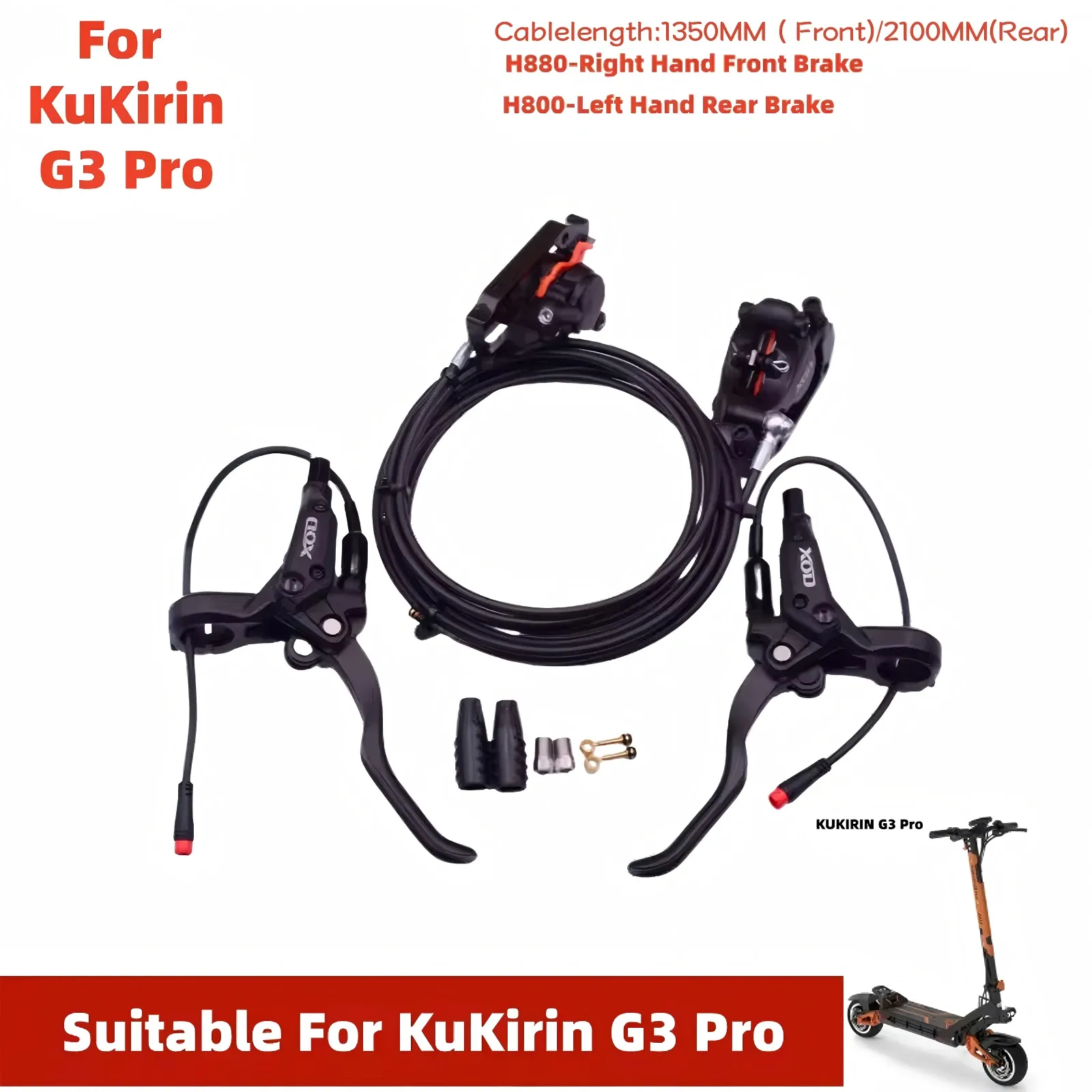

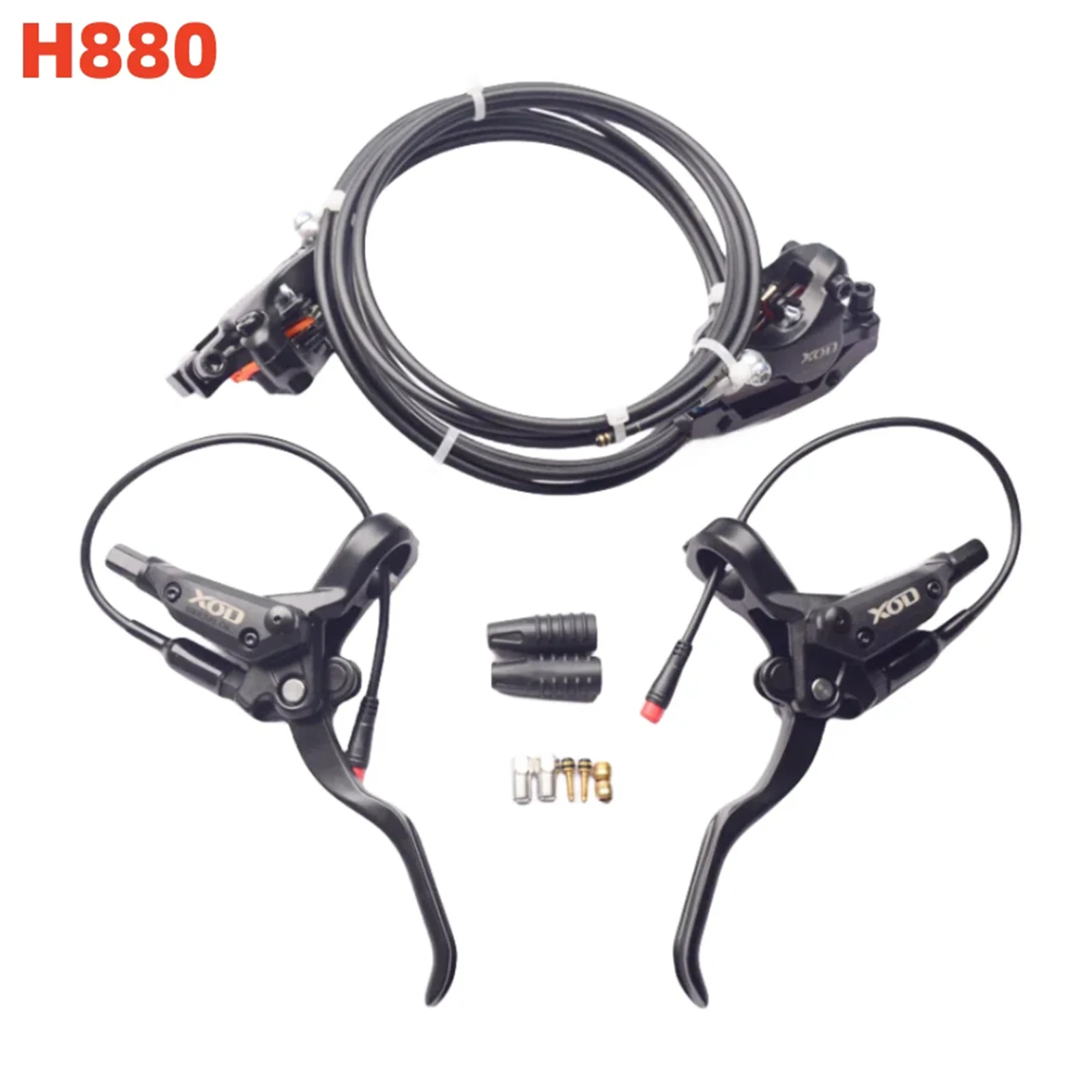

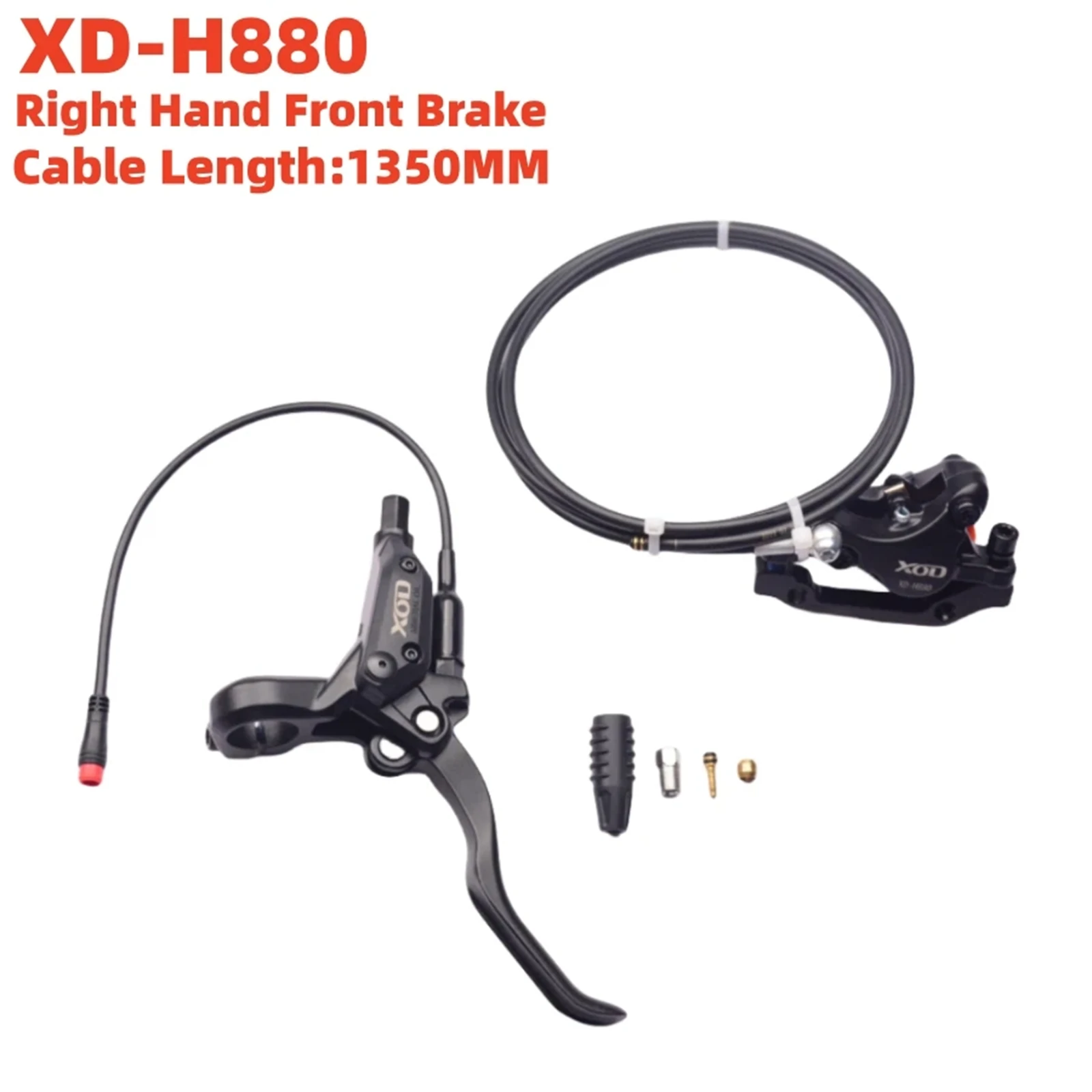

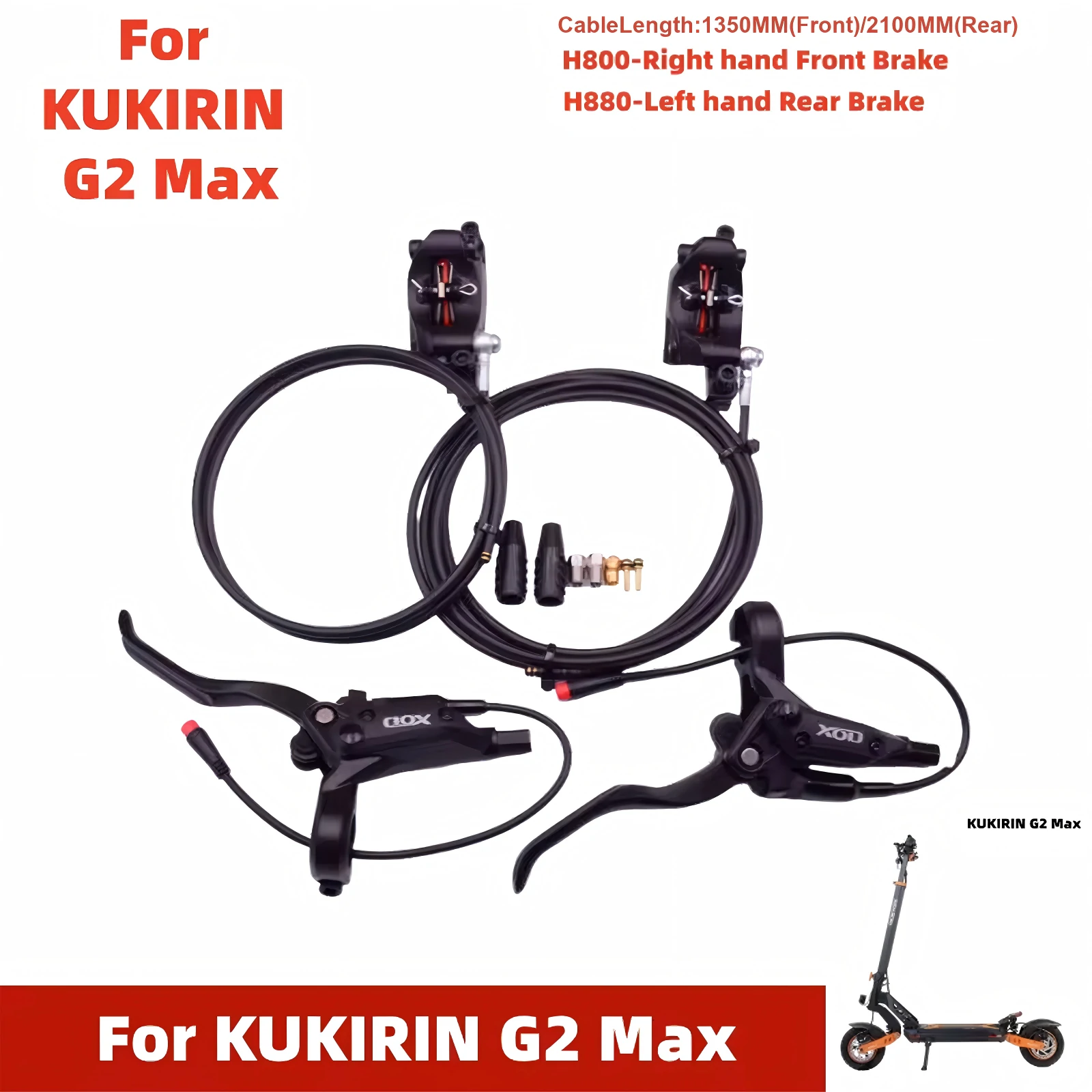

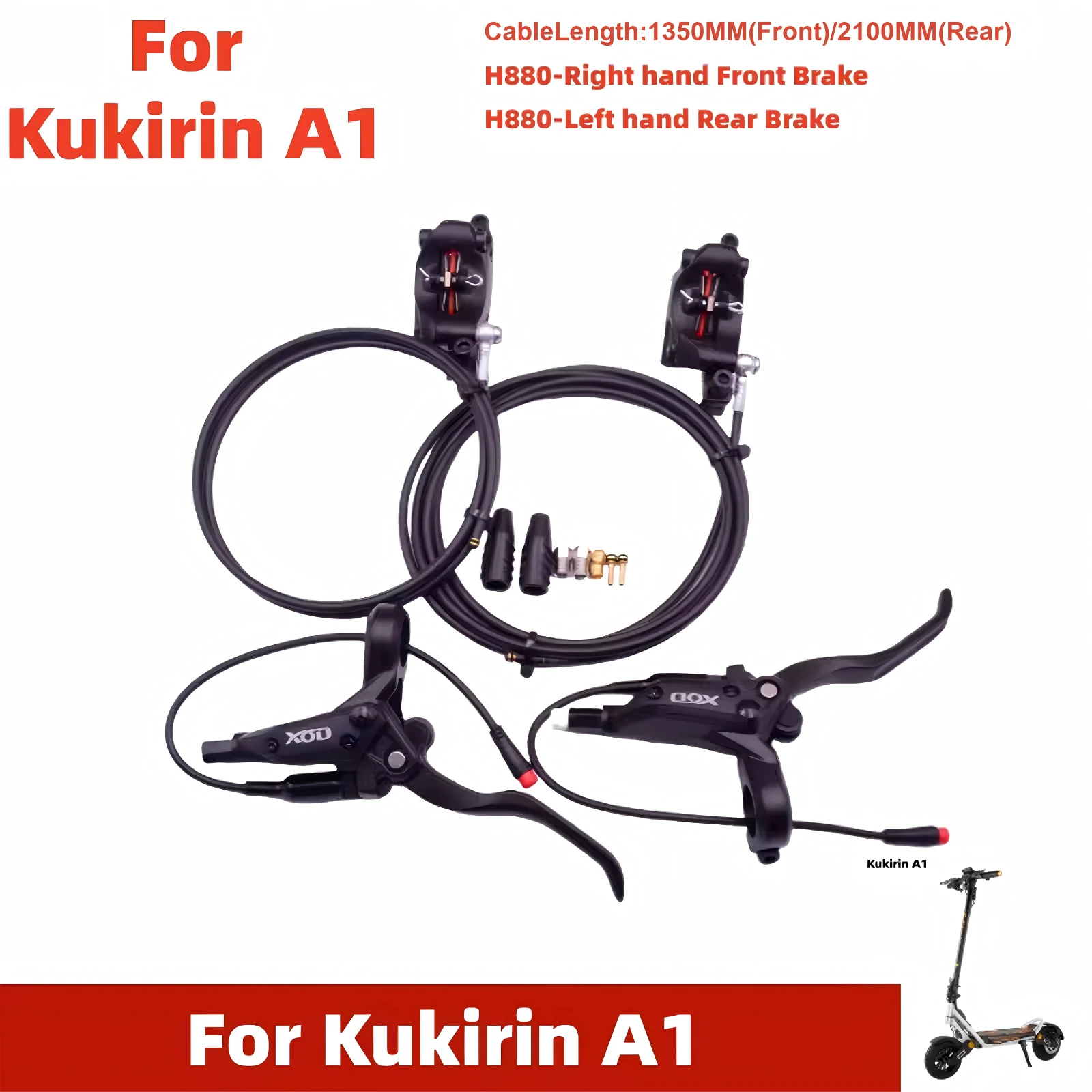

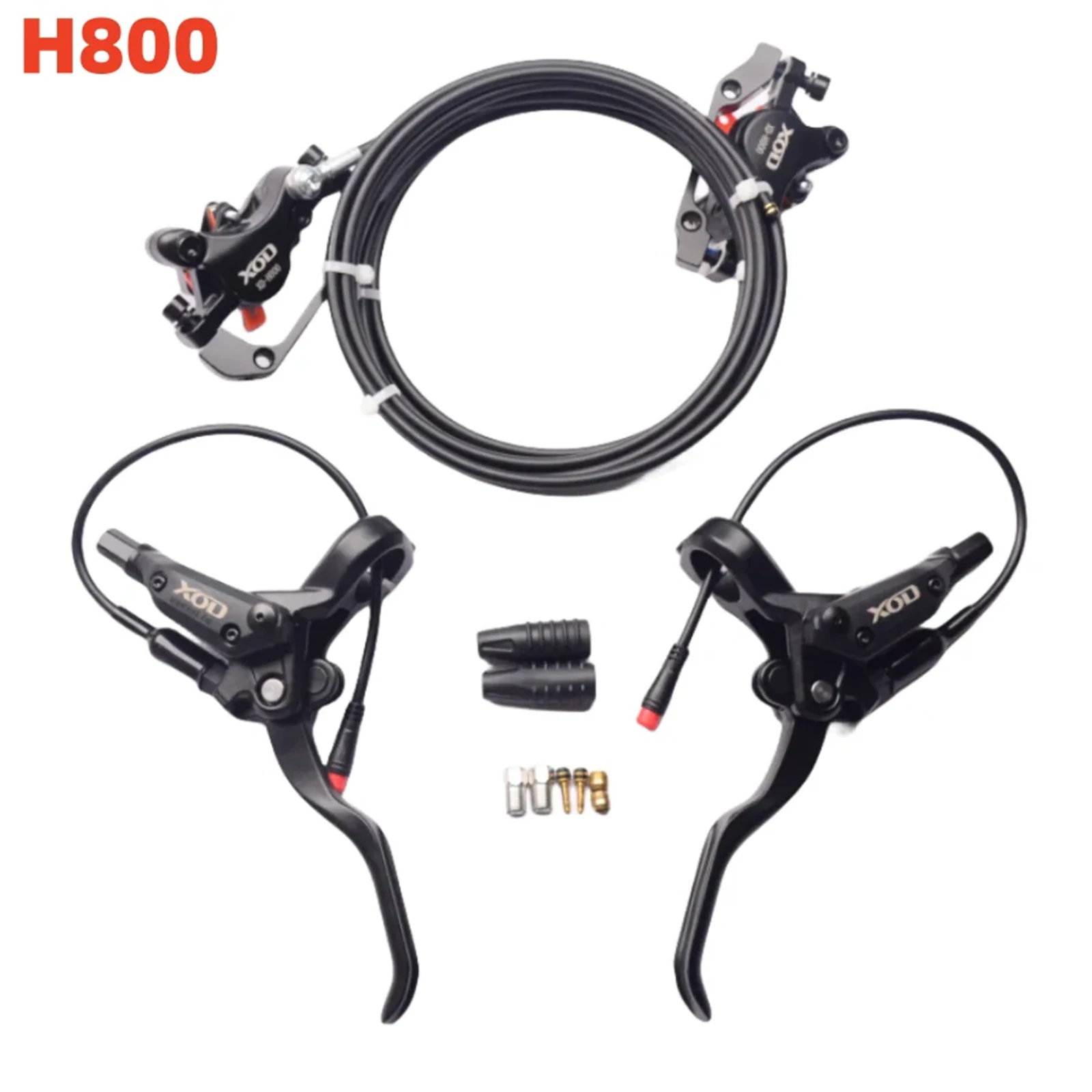

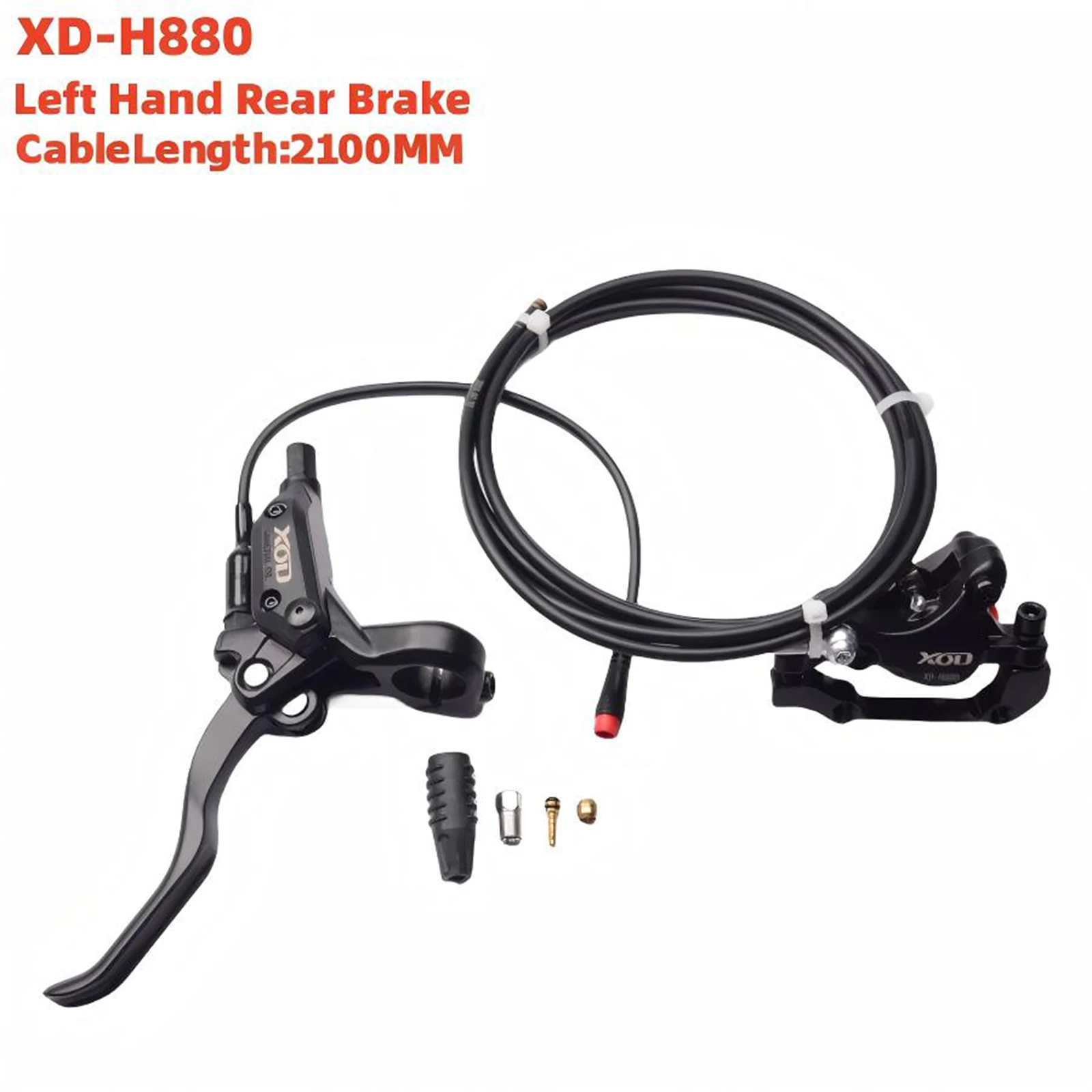

H800 / H880 Fitment Note
H800 and H880 are different caliper versions. The rear wheel is usually easier to judge by brake disc side, but the front wheel also depends on the fork structure and caliper mounting position.
Please do not choose only by left/right side on the front wheel. If you are not sure, read the H800/H880 Fitment Guide or contact XOD before ordering.
Important Purchase Notes +
1. Default Lever Setup:

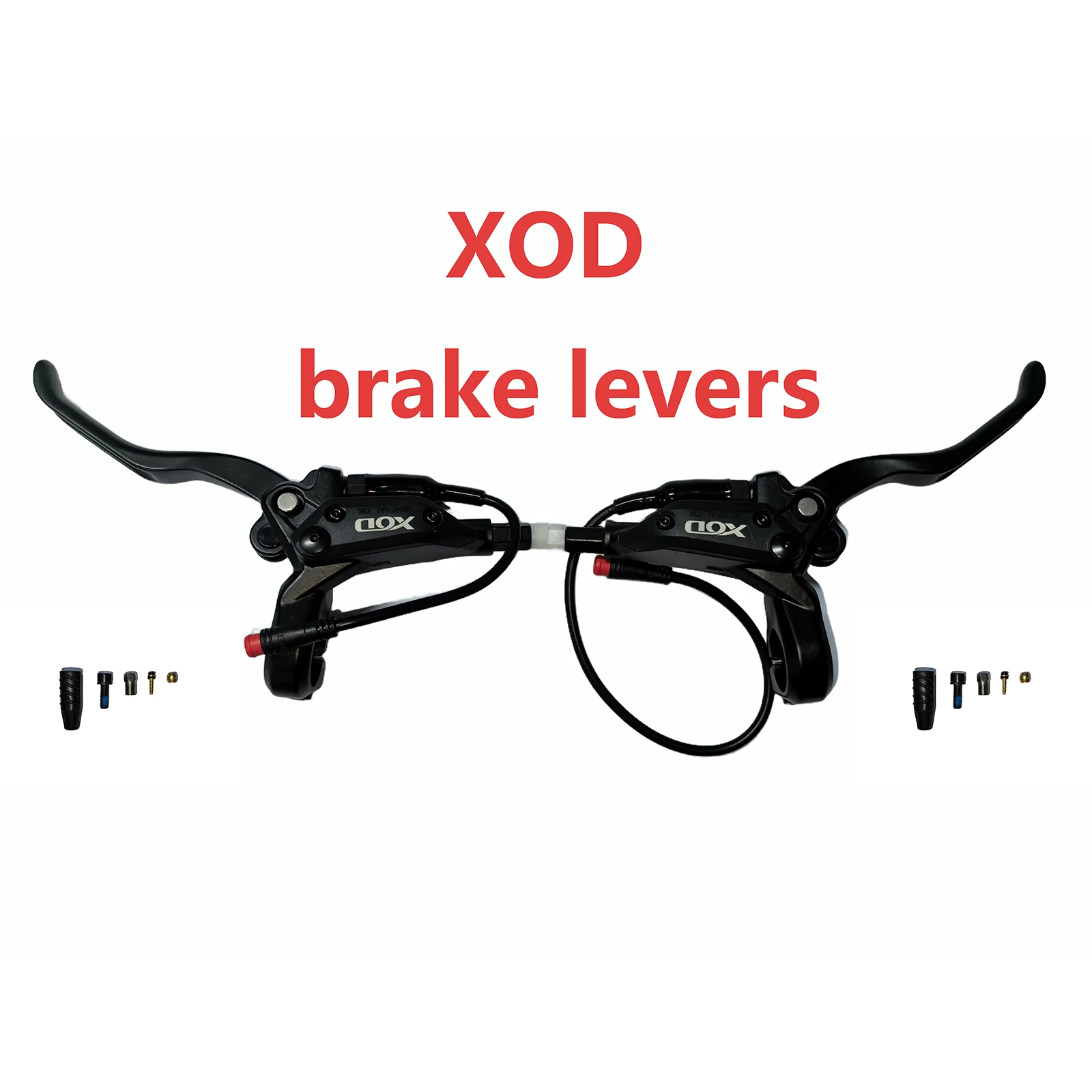

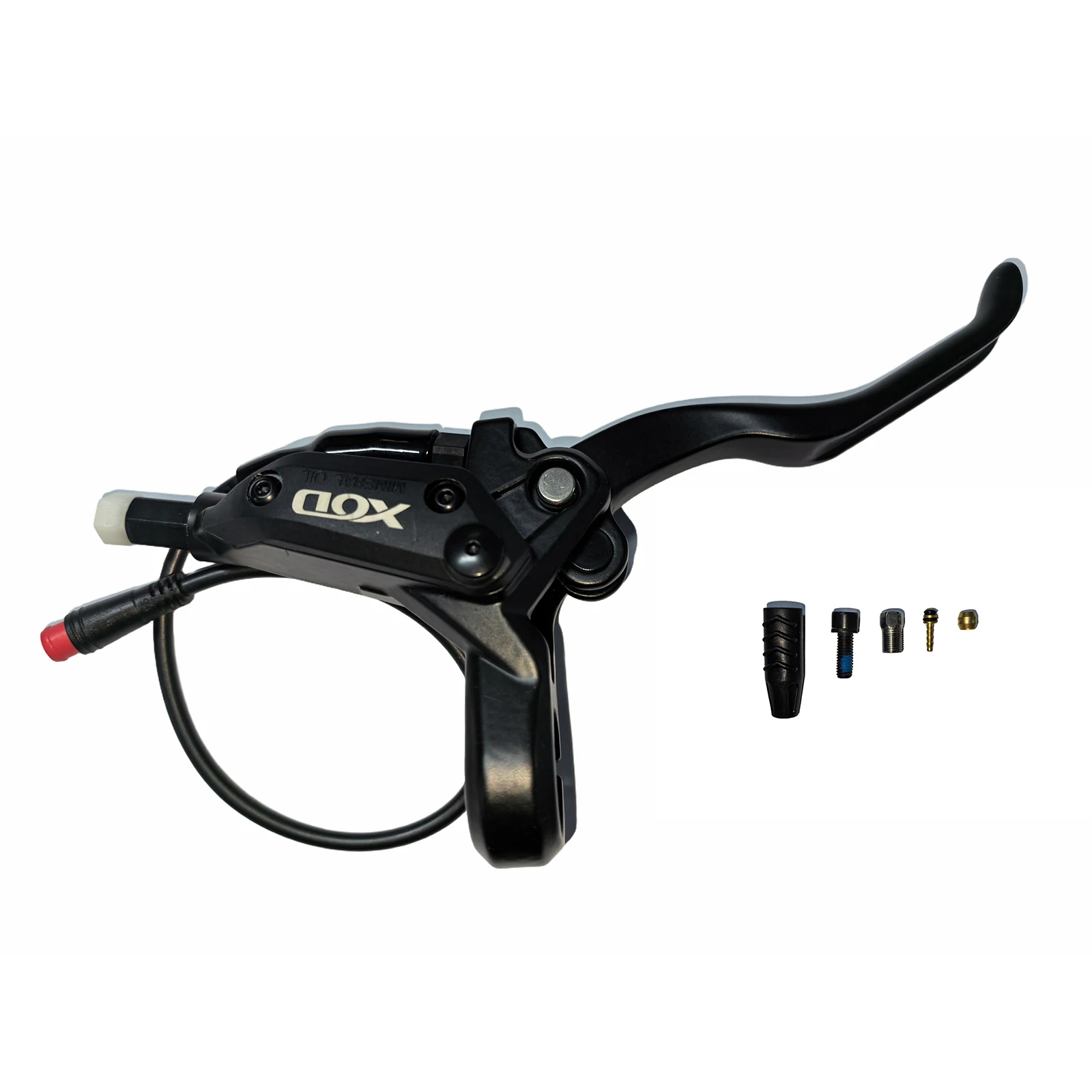

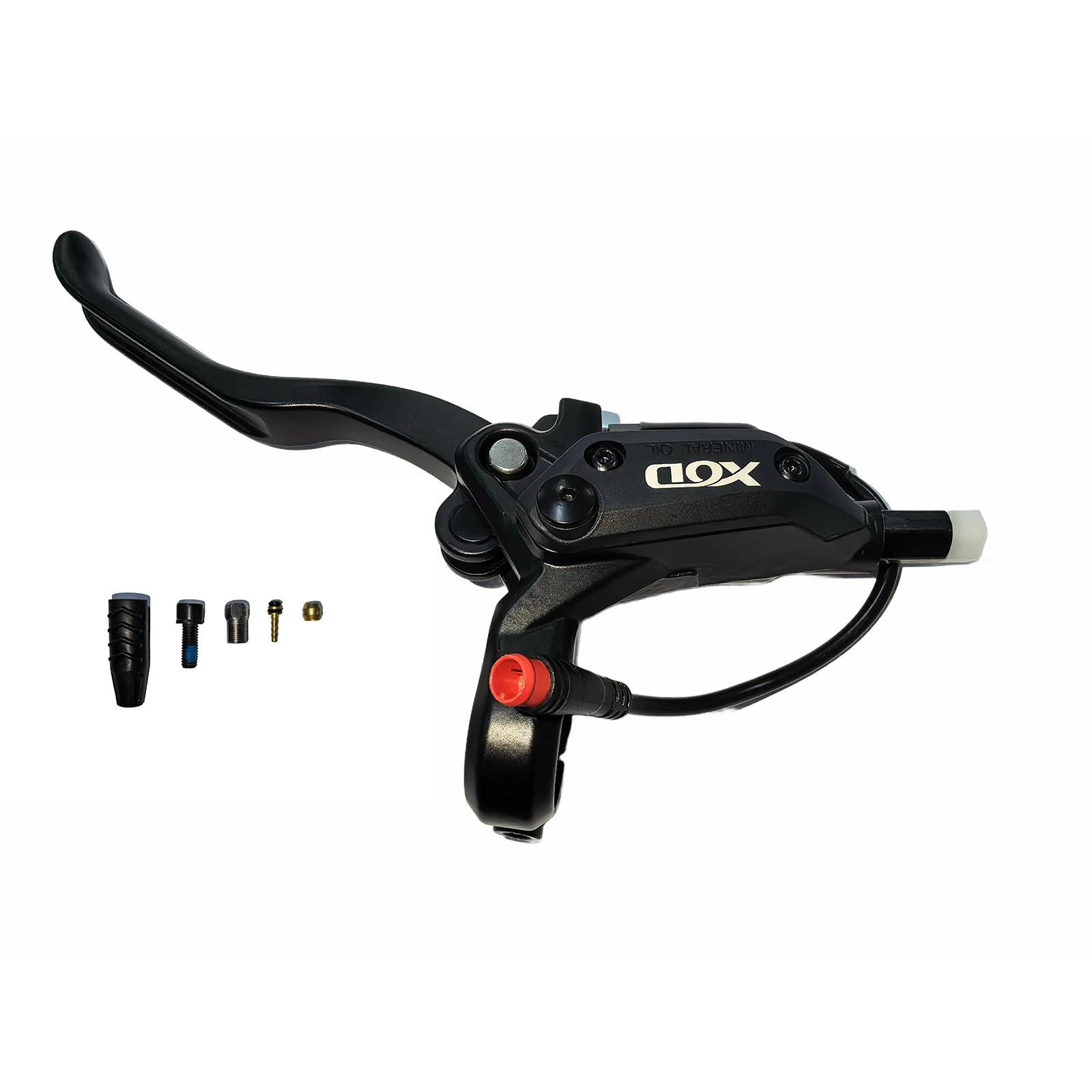

By default, the left brake lever controls the rear brake, and the right brake lever controls the front brake. If you need a custom control direction, contact us before installation.
2. Front / Rear / Full Set Options:

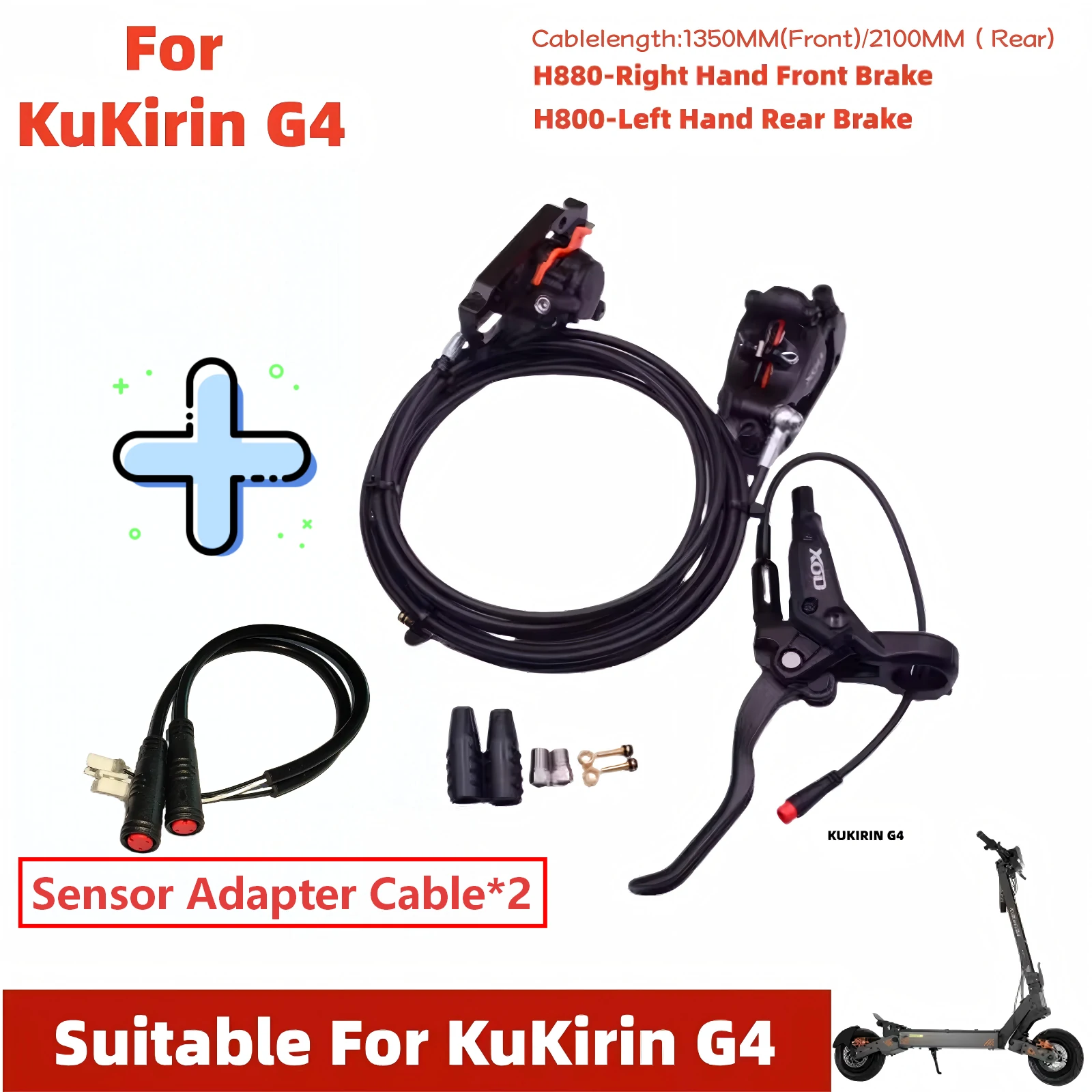

Please select the correct scooter model and brake position. Package contents vary depending on whether you choose front brake, rear brake, or front and rear set.
3. Installation Experience:
This kit requires careful installation. If hydraulic hoses are disconnected, shortened, or adjusted, bleeding may be required. If you lack experience, we recommend professional installation.

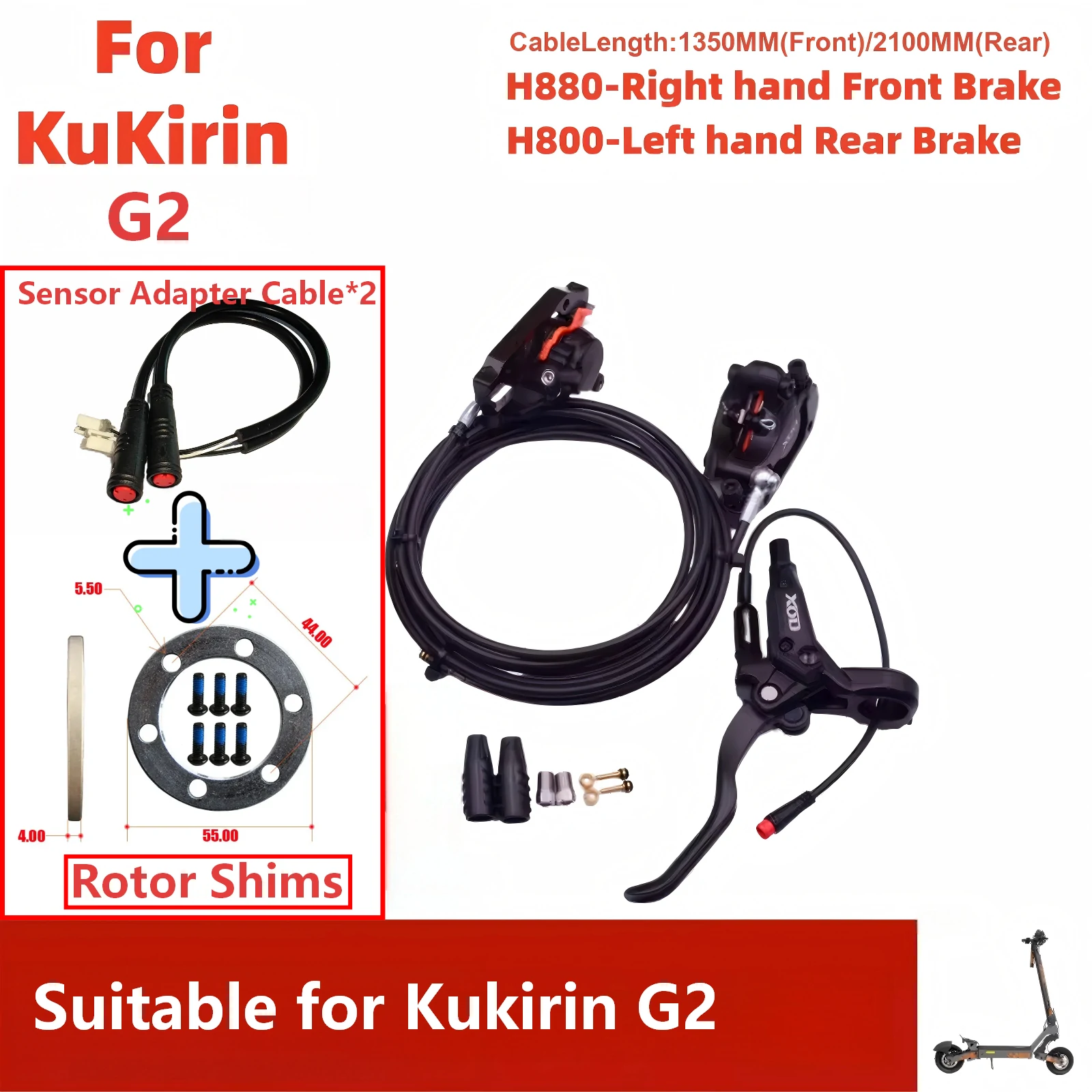

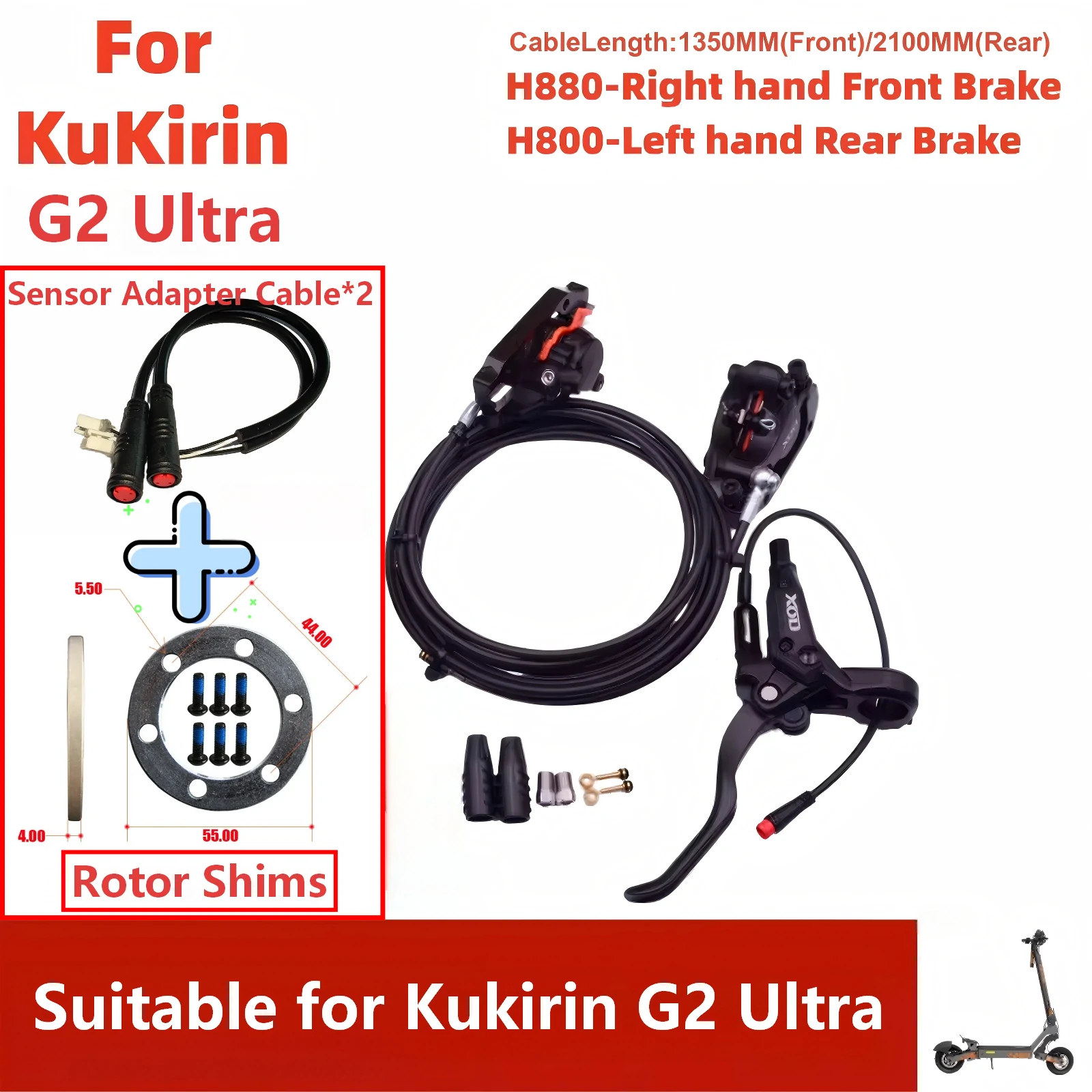

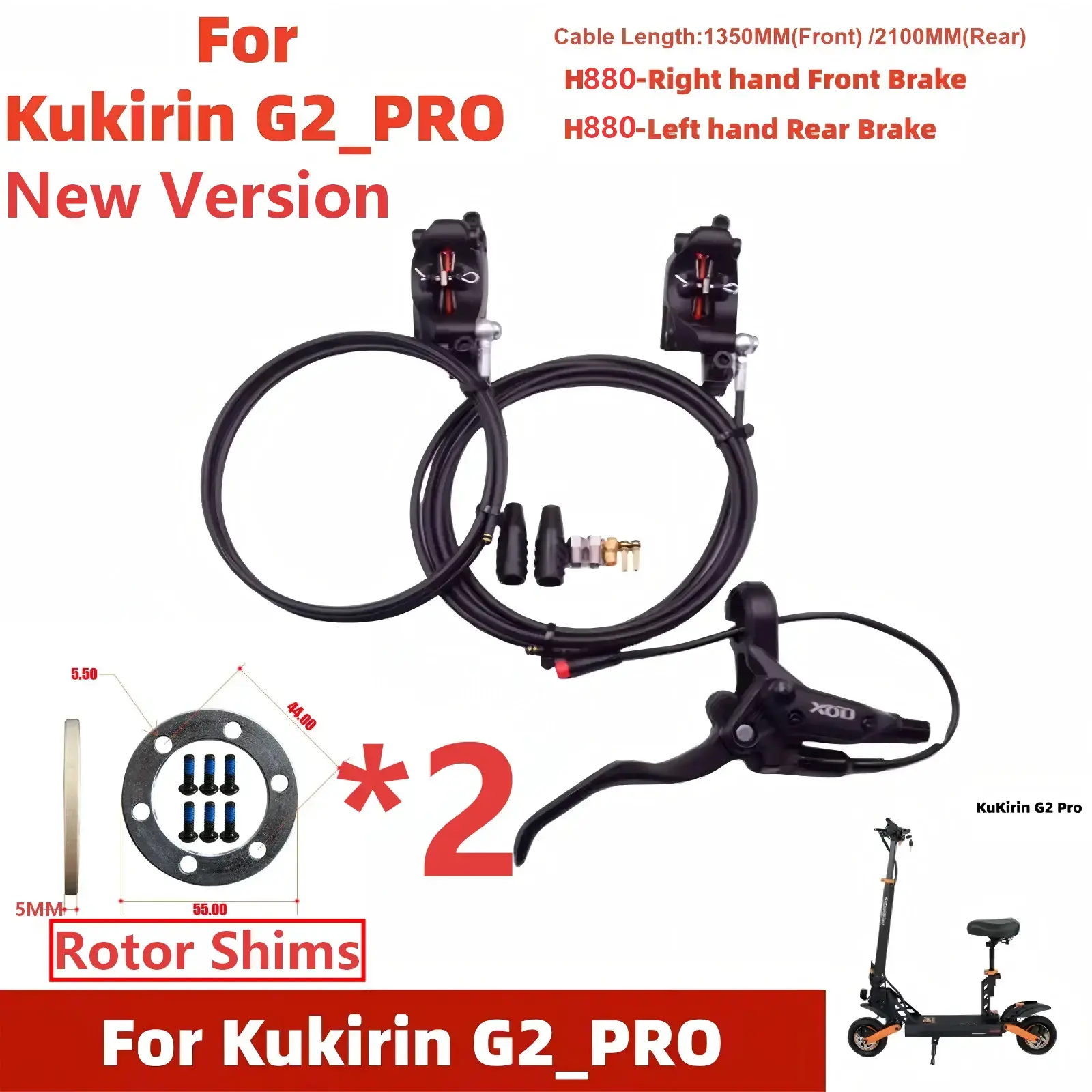

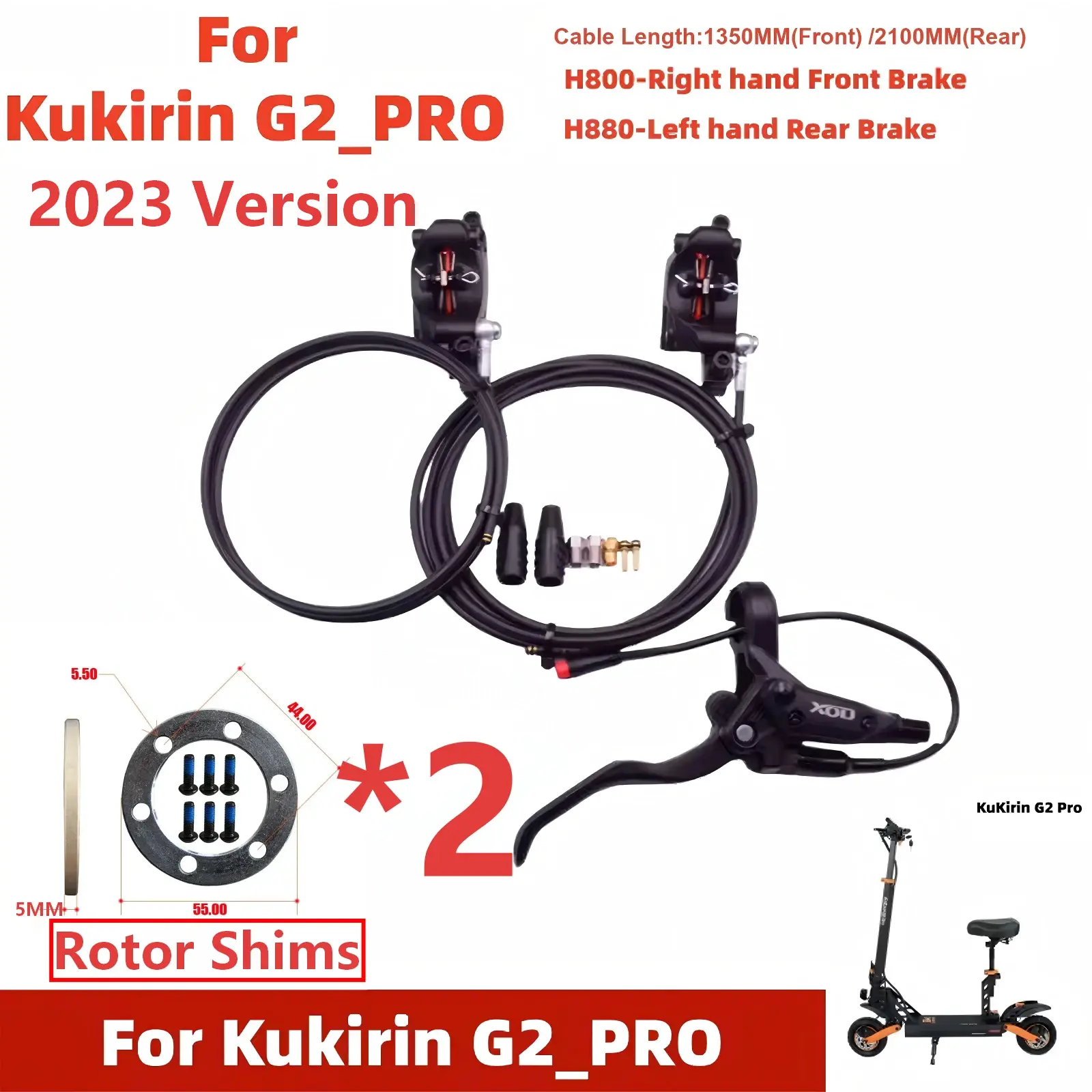

Some KuKirin brake upgrades may require 6-hole disc brake spacers or washers. Spacer thickness may vary by model and production year. Please contact customer service with photos before ordering if you are unsure.
Frequently Asked Questions +
Q1: Does this fit my KuKirin model?
It is compatible with many KuKirin electric scooters, but fitment may vary by model year, brake disc side, and front suspension structure. Please select the correct option or contact XOD with photos before ordering.
Q2: Which kit should I choose?
Choose your scooter model first, then select front brake, rear brake, or front and rear set. If you are unsure whether you need H800 or H880, read the fitment guide before ordering.
Q3: Can I ride in the rain?
The brake system is designed with a sealed structure for normal riding conditions, but avoid deep water, pressure washing, and long-term water immersion. Always check braking performance after wet rides.
Q4: Does the package include brake pads?
Yes, brake pads are included and usually come pre-installed. New brake pads may make some noise during the initial break-in period. After careful use for about 10km, the noise usually decreases.
Q5: Can beginners install this kit?
Beginners should be careful. Hydraulic brake installation affects riding safety. If you are not familiar with hose routing, caliper alignment, or bleeding, ask an experienced installer for help.
Need Help Confirming Fitment?
Send us clear photos of your scooter’s front wheel, rear wheel, and brake lever connector before ordering. XOD can help check the correct H800/H880 version and brake position.
Contact XOD before ordering if your scooter version, brake disc side, or caliper position looks different from the product examples.
