XOD GT-Series 4-Piston Hydraulic Brakes (GT500/GT400/GT401/GT402) - For High-Power E-Bikes & Scooters
Check the selected specification and the product details before ordering. Need help choosing?
Product details & specifications
Review the specifications and product photos for your selected option before ordering.
View product detailsWhat is included?
Package contents depend on the product and selected option. Refer to the product's listed contents below; accessories shown for installation are not necessarily included.
When you ride fast, you need to stop faster. The XOD GT-Series is our flagship performance braking system. Built around a massive One-Piece 4-Piston architecture, it delivers the aggressive bite and fade-free stopping power required for high-speed electric motorcycles, heavy-duty scooters, and extreme E-bikes.
Note ⚠️: GT series hydraulic brakes require a brake disc thickness of 2.9mm. Using a disc thinner than 2.9mm can easily lead to oil leaks and caliper seizure.
🔥 Integrated 4-Piston Extreme Power
- 🏁 One-Piece Caliper: Unlike standard split designs, the integrated caliper block maximizes structural rigidity and provides immediate, powerful brake response.
- 🛑 Advanced Cooling: All GT models come equipped with high-performance heat-dissipating pads to prevent brake fade during intense downhill riding.
- 🔄 Complex Routing Ready: Select models feature movable ball joints to accommodate complex hydraulic hose routing on custom vehicle frames.
⚙️ Universal Specifications (All GT-Series)
- 🔹 Caliper Architecture: One-Piece (Integrated) 4-Piston
- 🔹 Hydraulic Fluid: Premium Mineral Oil
- 🔹 Handle Material: High-Strength Aluminum Alloy
- 🔹 Hand Grip: 3-Finger / 4-Finger Lever
- 🔹 Compatible Rotors: 160MM / 180MM / 203MM
- 🔹 Installation Mode: Column Type / Side Type Mount
- 🔹 Surface Treatment: Plastic Spraying, Painting, and Anodic Oxidation
- 🔹 Safety Feature: 3A Mechanical Contact Power-Off Sensor
- 🔹 Brake Linings: Included High-Performance Heat Dissipation Pads
📊 Model Comparison Chart
* Review the specific configurations below to find the perfect match for your high-power build.
| Model | Caliper Position | Movable Ball Joint | Visual Window | Semi-open Install |
|---|---|---|---|---|

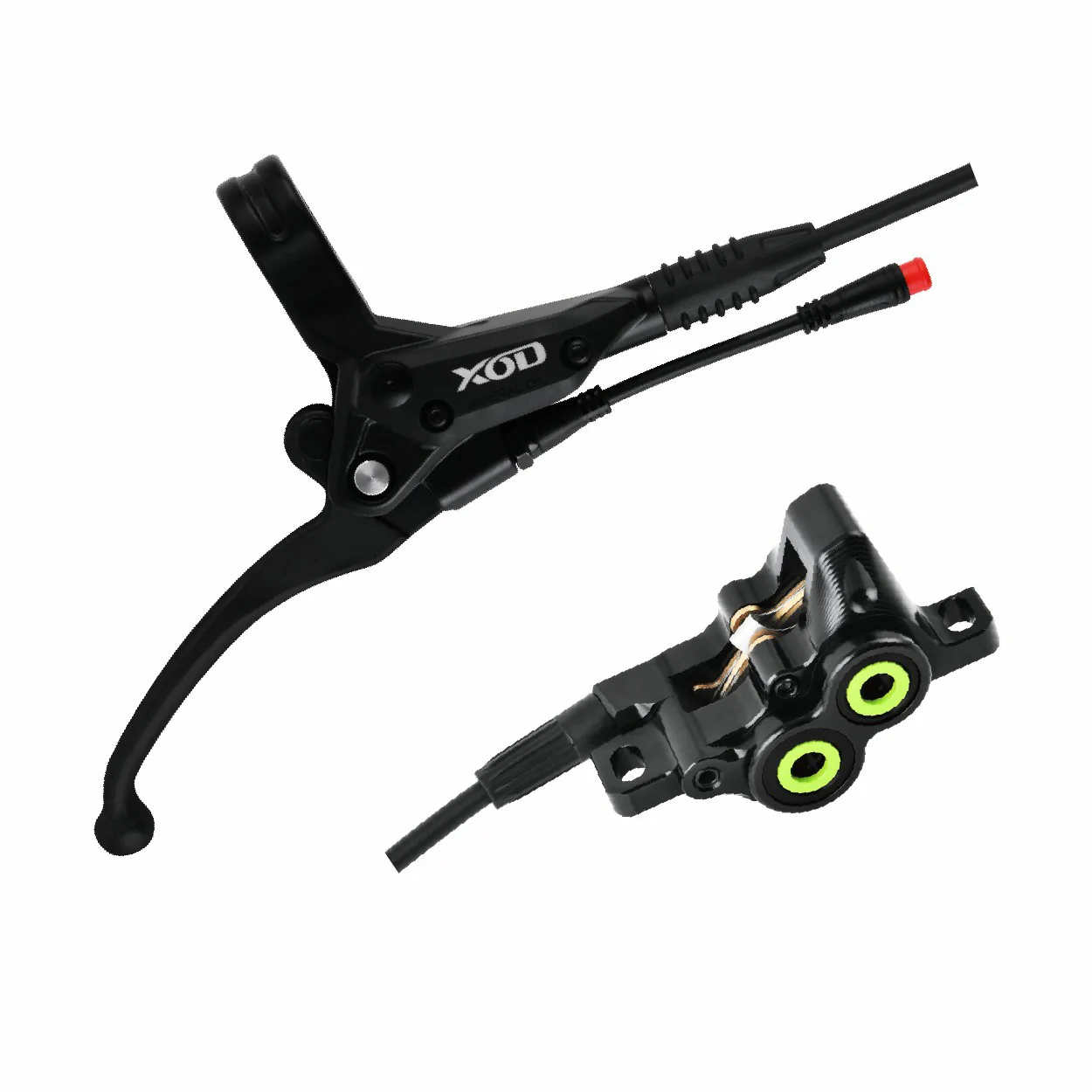

| XD-GT400 | Standard | ❌ No | ❌ No | ❌ No |

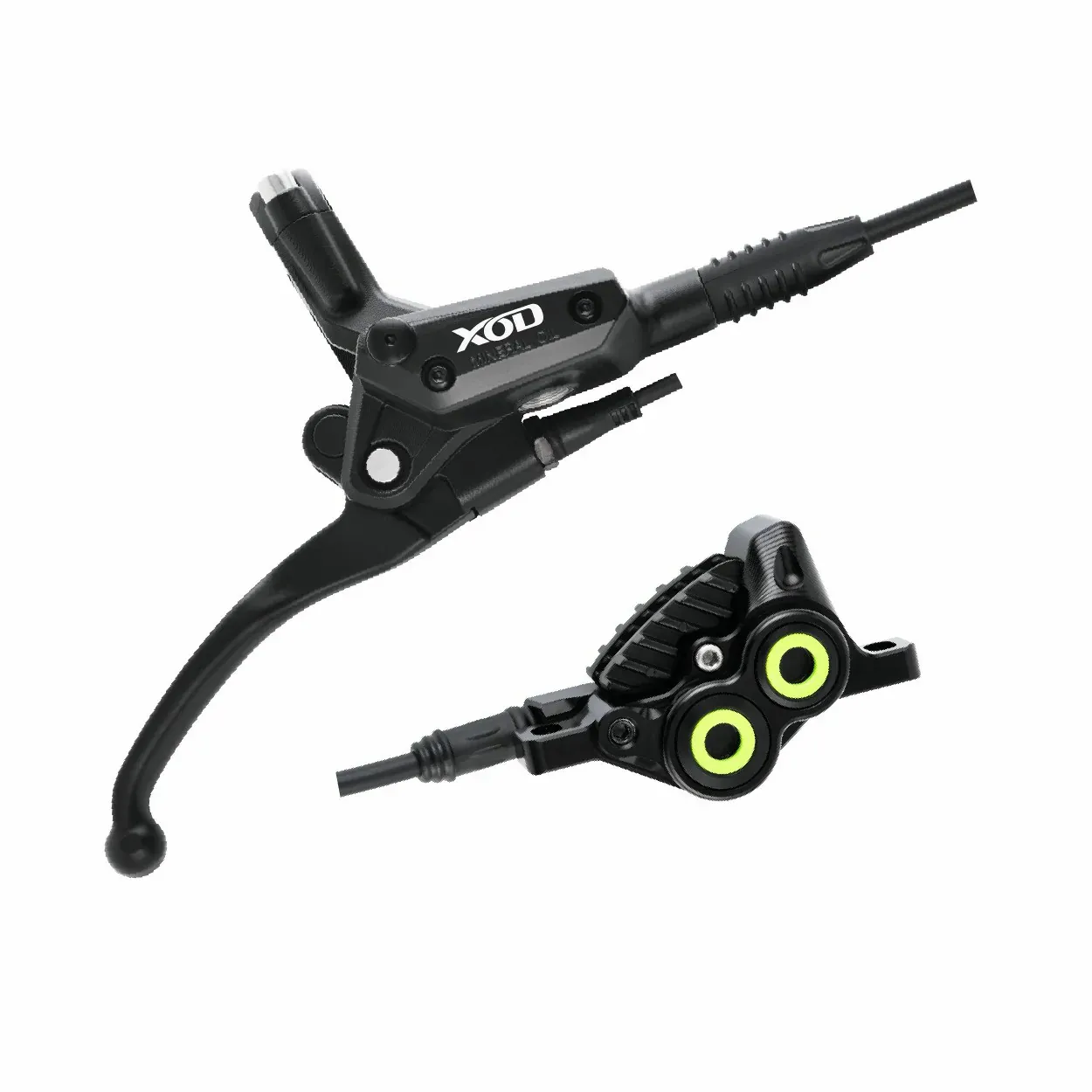

| XD-GT500 | Standard | ❌ No | ✔️ Yes | ✔️ Yes |

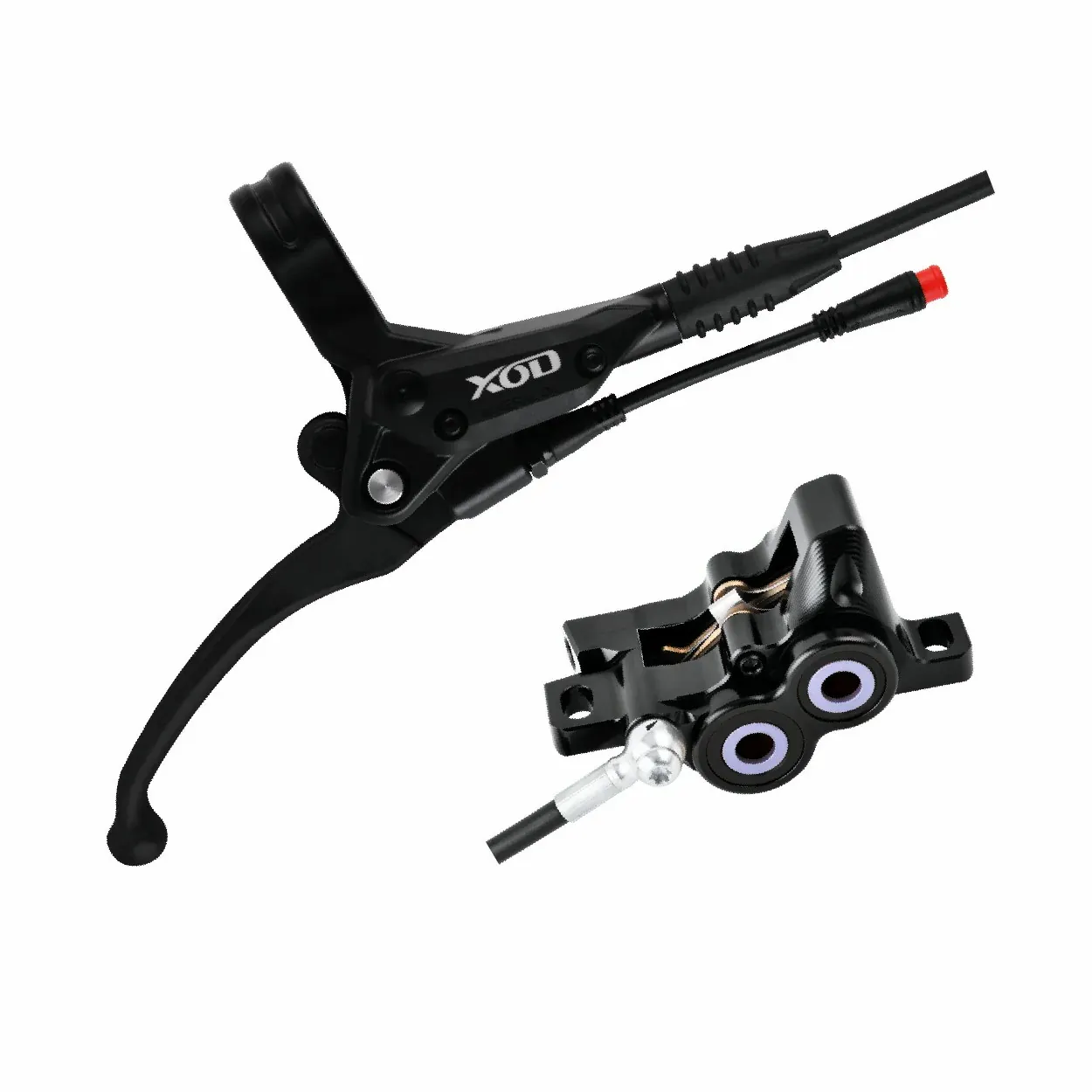

| XD-GT401 | Left-Hand | ✔️ Yes | ❌ No | ❌ No |

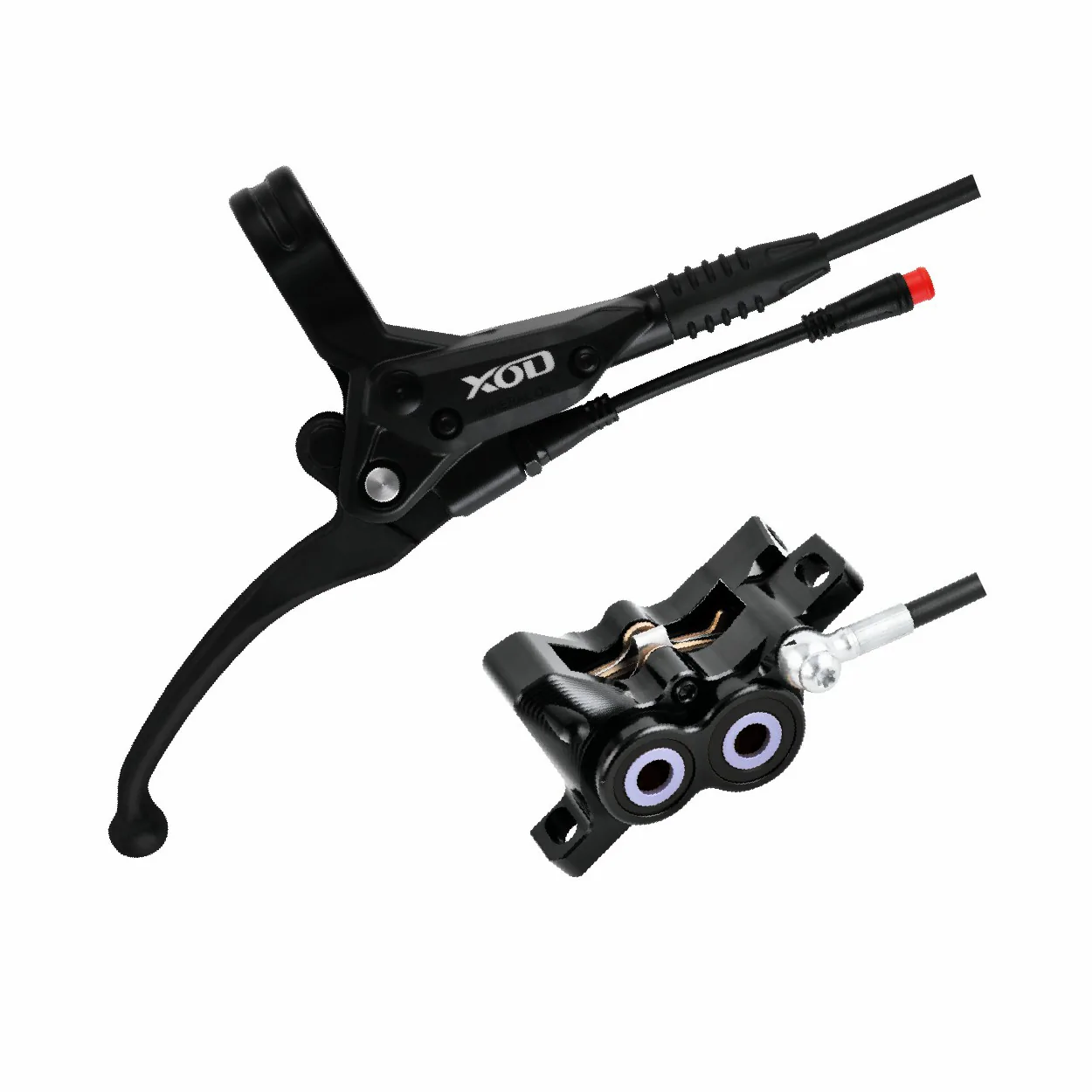

| XD-GT402 | Right-Mounted | ✔️ Yes | ❌ No | ❌ No |
📦 What's in the Box?
- ✔️ XOD GT-Series Brake Levers (Left & Right) with power-off sensors
- ✔️ Pre-bled Integrated 4-Piston Hydraulic Calipers
- ✔️ High-Performance Heat Dissipation Pads (Pre-installed)
- ✔️ Essential Mounting Hardware
