Searching for an XOD hydraulic brake often starts with a model name such as H800, H880, E300 or GT400. But choosing the model first can make the process harder. The better starting point is: which XOD brake series matches your vehicle and riding application?
XOD currently covers more than 30 model options across eight main hydraulic brake families: D, E, F, GT, H, T, JZ and MS. They serve very different vehicles, from everyday e-bikes and delivery fleets to electric scooters, high-power e-motos, cargo trikes and CNC modification builds.
🛴 Electric scooter: start with H Series. For high-power applications requiring a four-piston setup, evaluate GT Series.
🚲 E-bike: start with D or E Series. For high-power e-bikes, e-motos and demanding off-road applications, evaluate F Series.
🚚 Electric tricycle or cargo trike: start with T Series, including linked 1-to-2 options for selected configurations.
⛰️ MTB or mid-drive e-bike: look at JZ Series.
⚙️ CNC modification build: look at MS Series.

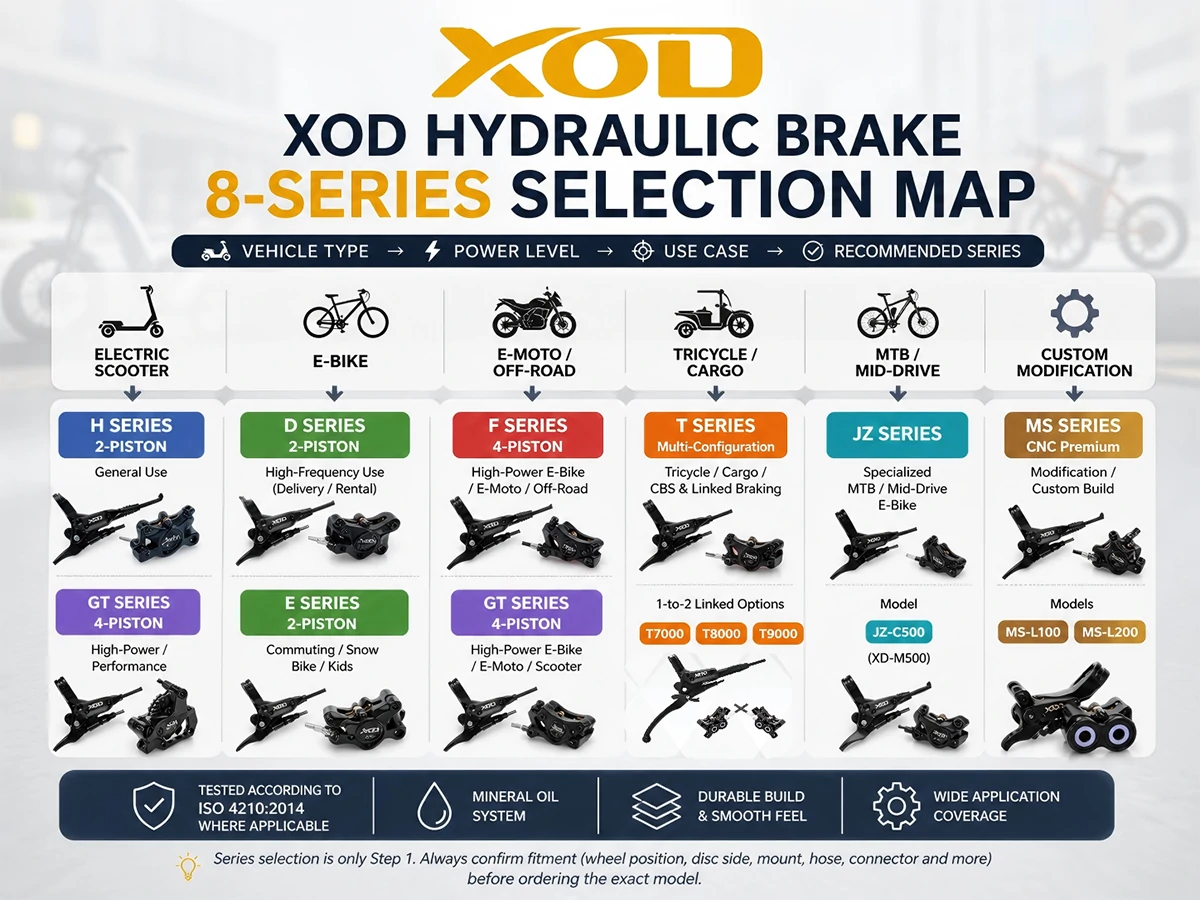

📸 IMAGE 1 — XOD 8-Series Selection Map Vehicle Type → Power Level → Use Case → Recommended XOD Series Alt text: XOD hydraulic brake series guide for electric scooters e-bikes e-motos and cargo trikes
🗺️ Which XOD Hydraulic Brake Series Should You Choose?
The easiest way to understand the XOD hydraulic brake lineup is to start with the vehicle you ride rather than the model number printed on the brake.
D Series
2-Piston E-Bike Delivery RentalD Series is designed for high-frequency applications such as delivery bikes, rental vehicles, designated-driver/service bikes and everyday e-bikes.
XD-D610 · XD-D663 · XD-D630 · XD-D710 · XD-D660 · XD-D770
E Series
2-Piston E-Bike Snow Bike Urban CommutingE Series covers e-bikes, snow and fat-bike applications, urban commuting and selected children's-bike applications.
XD-E300 · XD-E500 · XD-E330 · XD-E530
F Series
4-Piston High-Power E-Bike E-Moto Off-RoadF Series is a four-piston hydraulic brake family for high-power e-bikes, electric motorcycles and demanding off-road applications.
XD-F2000 · XD-F3000 · XD-F2300 · XD-F3300
GT Series
Integrated 4-Piston High-Power Scooter E-Bike E-MotoGT Series uses an integrated four-piston design for high-power electric scooters, e-bikes, e-motos and other performance-oriented applications.
XD-GT400 · XD-GT401 · XD-GT500 · XD-GT402
H Series
2-Piston Electric Scooter E-BikeH Series is the primary XOD range to investigate for electric scooter hydraulic brake upgrades and is also used in compatible e-bike applications.
XD-H800 · XD-H801 · XD-H880 · XD-H802
T Series
Electric Trike Cargo Multi-Wheel Linked BrakingT Series covers electric tricycles, four-wheel vehicles, cargo trikes and selected linked hydraulic braking configurations.
XD-T6000 · XD-T6200 · XD-T6400 · XD-T8000 · XD-T9000 · XD-T700 · XD-T7000 · XD-T800
JZ Series
MTB Mid-Drive E-BikeJZ Series is aimed at mountain bikes and mid-drive electric bicycle applications.
JZ-C500 / XD-M500
MS Series
CNC Modification Custom BuildMS Series is a CNC modification line for selected electric scooter, e-bike and custom brake upgrade projects.
MS-L100 · MS-L200
⚙️ XOD 2-Piston vs 4-Piston Hydraulic Brakes
Piston count is an important part of XOD brake selection, especially when comparing standard electric vehicles with higher-power platforms.
2-Piston XOD Brakes
H Series is the main two-piston option for electric scooters, while D and E Series cover many e-bike applications.
4-Piston XOD Brakes
F Series and GT Series are both four-piston hydraulic brake families. They are designed around higher-power and more performance-oriented vehicle applications.
🛴 Electric scooter → H Series
⚡ High-power electric scooter → GT Series
🚲 General e-bike → D or E Series
🔥 High-power e-bike / e-moto / off-road → F Series
A four-piston brake is not automatically the correct option for every vehicle. Vehicle weight, tire grip, rotor size, brake pads, installation and actual fitment all affect braking performance.

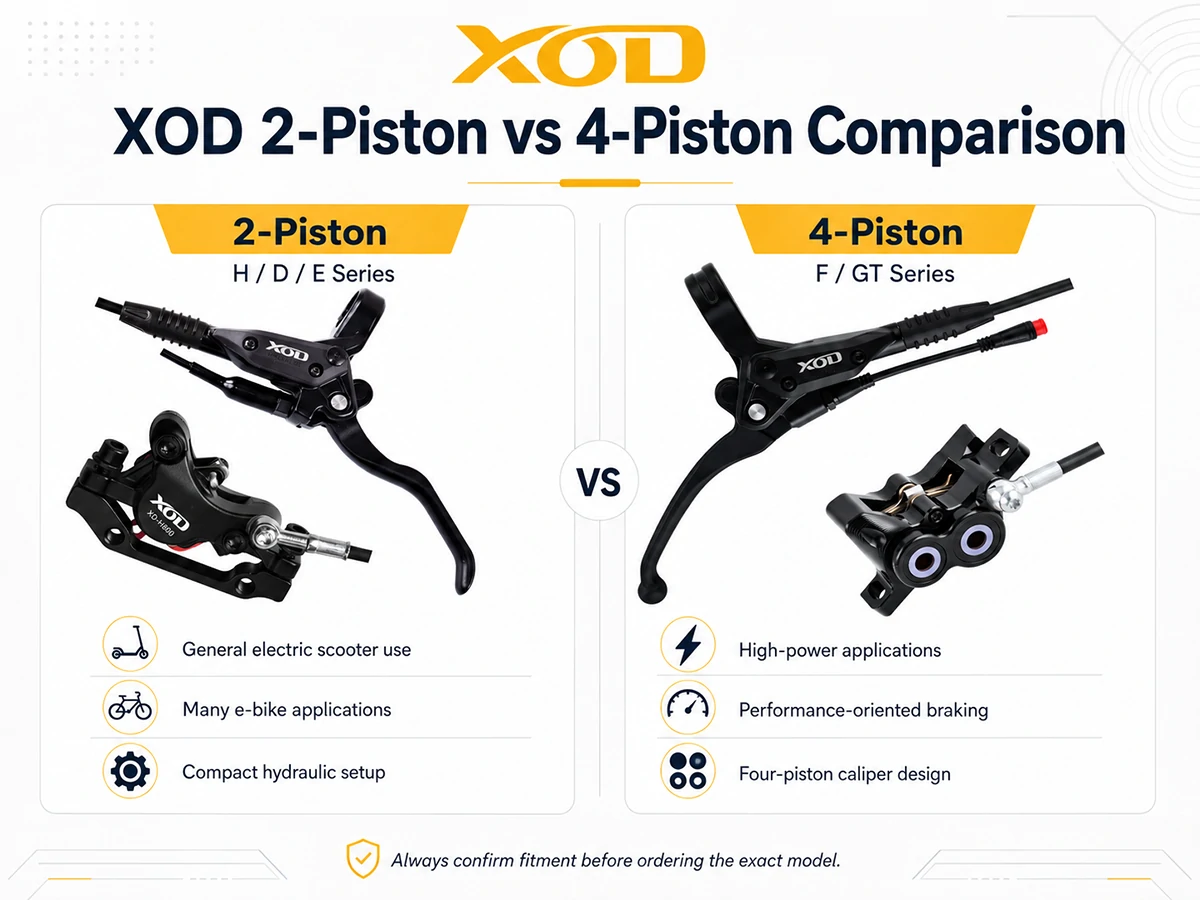

📸 IMAGE 2 — XOD 2-Piston vs 4-Piston Comparison D / E / H Series vs F / GT Series Alt text: XOD 2 piston vs 4 piston hydraulic brakes for e-bikes and electric scooters
🛴 XOD H vs GT: Which Hydraulic Brake Is Better for an Electric Scooter?
If you are looking for XOD hydraulic brakes for an electric scooter, H Series is normally the first product family to investigate.
H Series for general electric scooter upgrades
H Series includes H800, H801, H880 and H802. These are two-piston hydraulic brake options designed around electric scooter and compatible e-bike applications.
However, H800 and H880 should not be treated simply as a "front brake" and a "rear brake." Correct fitment can depend on wheel position, brake disc side, caliper mounting direction, fork structure and the actual scooter layout.
If you are deciding between these two models, read our XOD H800 vs H880 hydraulic brake fitment guide.
GT Series for high-power electric scooter applications
For high-power electric scooters requiring a four-piston hydraulic brake setup, GT Series is the performance-oriented family to evaluate.
GT400, GT401, GT500 and GT402 also extend into high-power e-bike and e-moto applications.
General scooter → H Series · 2-Piston
High-power application → GT Series · 4-Piston
Next step → confirm the exact model and fitment
Important: vehicle power alone does not determine the final brake model. A model-specific fitment guide may still recommend an H-Series configuration for a powerful scooter because installation compatibility is critical.
KuKirin hydraulic brake upgrades require model-specific checks
KuKirin scooters are a good example of why hydraulic brake fitment should not be guessed from motor power or product popularity alone. Different models can use different disc directions, suspension structures and H800/H880 combinations.
🚲 XOD D vs E vs F: Which Hydraulic Brake Should You Choose for an E-Bike?
E-bike riders should first decide whether the bike is a general commuter, a high-frequency work vehicle or a high-power performance platform.
D Series: delivery, rental and high-frequency e-bike use
D Series is especially relevant for bikes that operate repeatedly throughout the day, including delivery vehicles, rental fleets, designated-driver/service bikes and other high-frequency e-bike applications.
If you are searching for XOD hydraulic brakes for a delivery e-bike, start by reviewing the XOD D Series.
E Series: everyday e-bike and urban commuting
E Series covers e-bikes, snow bikes, fat-bike applications, urban commuting and selected children's-bike applications.
The range includes E300, E500, E330 and E530.
See the XOD E Series hydraulic brakes for current configurations.
F Series: four-piston brakes for high-power e-bikes
F Series moves into higher-power applications. It is a four-piston hydraulic brake family for high-power e-bikes, electric motorcycles and demanding off-road riding.
The range includes F2000, F3000, F2300 and F3300.
High-frequency delivery / rental → D Series
General e-bike / snow bike / commuter → E Series
High-power e-bike / e-moto / off-road → F Series · 4-Piston
D, E and F should not simply be understood as "good, better and best." They are different hydraulic brake families designed around different applications.
🚚 XOD T Series for Electric Tricycles, Cargo Trikes and Linked Hydraulic Brakes
T Series is one of the most specialized parts of the XOD brake lineup. It covers electric tricycles, four-wheel vehicles, cargo trikes and selected linked hydraulic braking configurations.
What is a 1-to-2 hydraulic brake system?
A 1-to-2 hydraulic brake configuration allows one braking input to operate two linked hydraulic brake outputs. This type of arrangement is particularly relevant to selected electric tricycles and multi-wheel vehicle designs.
Within the current XOD T-Series lineup, T7000, T8000 and T9000 are listed as 1-to-2 linked hydraulic brake options.
CBS refers to a combined or linked braking arrangement that allows multiple brakes to work together rather than operating completely independently.
The purpose is more coordinated braking-force distribution and more stable deceleration for the vehicle configuration in which the system is designed to operate.
See the XOD T Series hydraulic brake range for available standard and linked configurations.

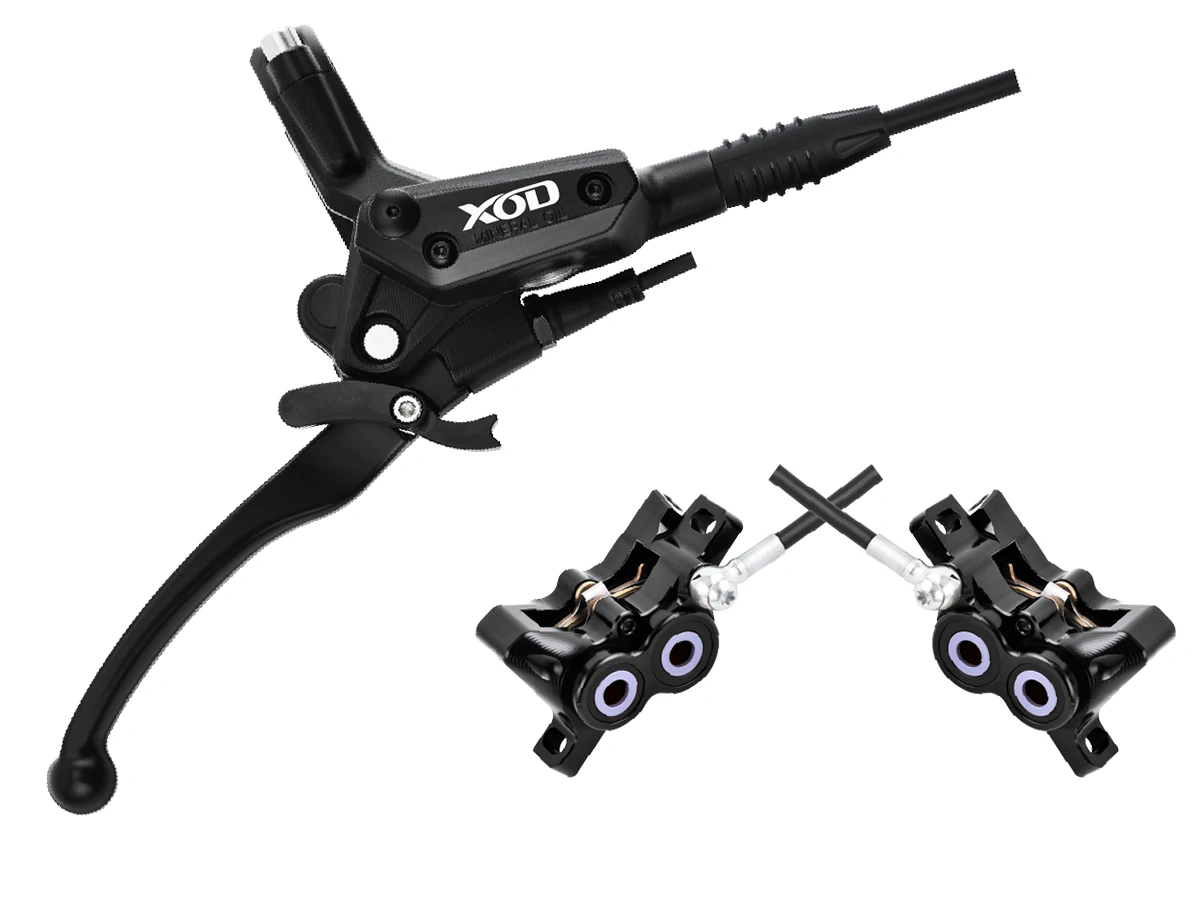

📸 IMAGE 3 — XOD T-Series 1-to-2 Hydraulic Brake Diagram One Brake Input → Two Linked Hydraulic Brake Outputs Alt text: XOD T Series 1 to 2 hydraulic brakes for electric tricycles and cargo trikes
⛰️ XOD JZ vs MS Series: MTB, Mid-Drive and CNC Modification Brakes
JZ Series for MTB and mid-drive e-bikes
JZ Series has a more specialized application than the mainstream scooter and commuter ranges. JZ-C500, also known as XD-M500, is intended for mountain bikes and mid-drive electric bicycles.
For these applications, review the XOD JZ Series instead of automatically adapting a scooter-focused H-Series brake.
MS Series for CNC modification builds
MS Series includes MS-L100 and MS-L200 and is positioned around CNC modification and specialist brake upgrade projects.
See the XOD MS Series CNC hydraulic brakes for current configurations.
🔧 Choosing the XOD Series Is Not the Same as Confirming Fitment
Final Fitment Confirmation = Step 2
This distinction is especially important for electric scooters. Two riders can both own electric scooters but require completely different hydraulic brake configurations.
Check these details before ordering an XOD hydraulic brake
- Vehicle brand, model and production year
- Front or rear wheel position
- Brake disc side
- Caliper mounting direction and mounting position
- Front fork or suspension structure
- Rotor diameter and available caliper clearance
- Hydraulic hose routing and required hose length
- Brake lever connector and motor cut-off sensor compatibility
- Required spacer or adapter
For installation information, see the XOD Hydraulic Brake Installation Guide.

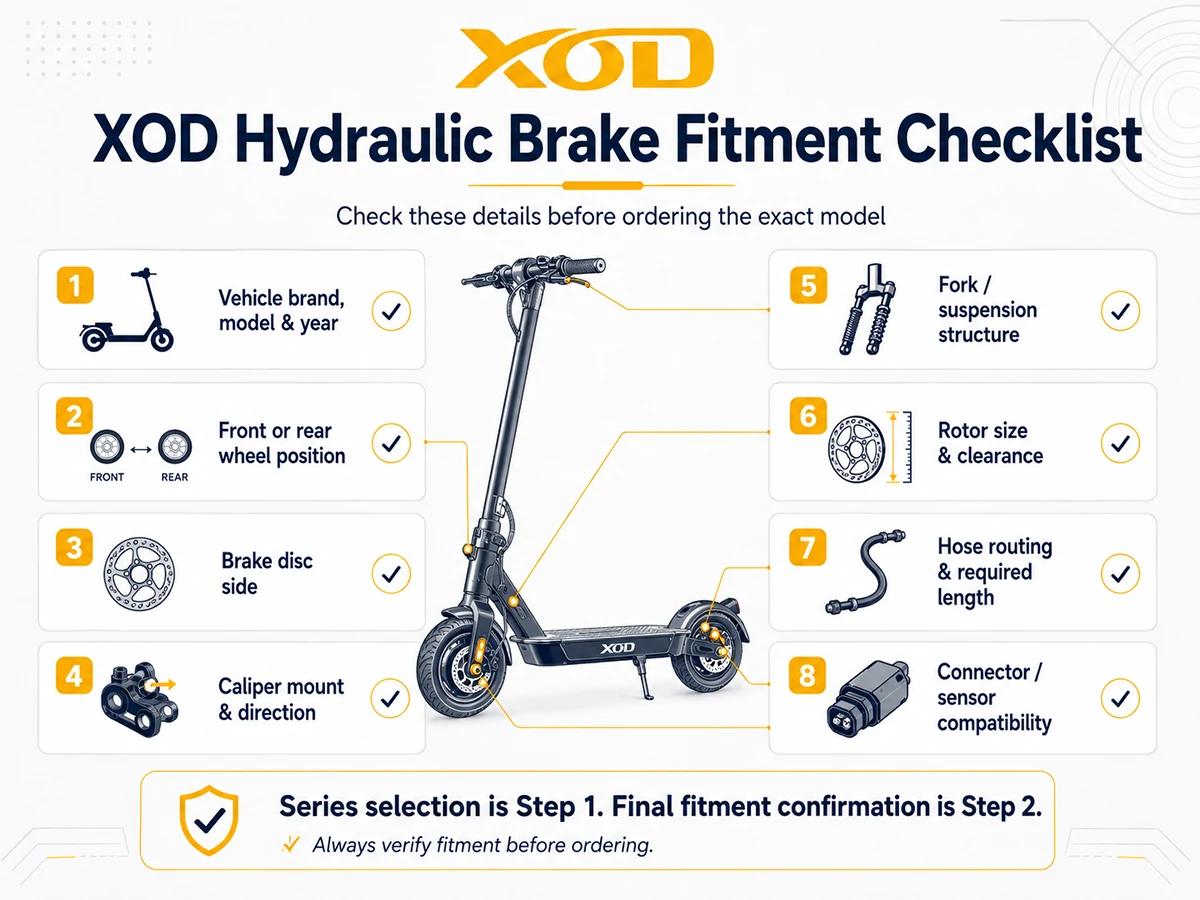

📸 IMAGE 4 — XOD Hydraulic Brake Fitment Checklist Wheel Position · Disc Side · Fork · Caliper Mount · Hose · Connector Alt text: XOD hydraulic brake fitment checklist before choosing H800 H880 or other brake models
❌ 4 Common XOD Hydraulic Brake Buying Mistakes
1. Buying H800 only because it is popular
A popular brake is not automatically the correct brake. Choose the correct series first, then confirm the exact model.
2. Choosing a brake only by motor wattage
Motor power helps narrow the product family, especially when comparing two-piston and four-piston options, but it does not replace a physical fitment check.
3. Assuming every T-Series brake uses a linked system
T Series contains several configurations. T7000, T8000 and T9000 are linked 1-to-2 options, while other T-Series models use different layouts.
4. Ignoring the brake sensor connector
An electric scooter or e-bike brake can physically fit while its motor cut-off connector remains incompatible. Check the original connector before ordering.
🛡️ XOD Hydraulic Brakes and ISO 4210 Testing
According to product information published by XODbrakes.com, XOD-related products are tested according to ISO 4210:2014 where applicable. Exact testing and documentation requirements may vary by model and application.
The International Organization for Standardization identifies ISO 4210-4:2014 as covering bicycle braking test methods. ISO has since replaced that edition with ISO 4210-4:2023.
Brands, distributors and commercial buyers that require documentation for a specific product or market should confirm the applicable model-level test documents before ordering.
📦 XOD Hydraulic Brakes Wholesale and Bulk Orders
XOD hydraulic brakes are also available for wholesale and B2B purchasing.
Business customers can include:
- E-bike and electric scooter brands
- Distributors and wholesalers
- Repair and modification shops
- Online and offline retailers
- Rental and fleet projects
Wholesale buyers can evaluate different XOD brake families based on vehicle type, power level, installation configuration and purchase volume.
Qualified volume projects can also discuss configuration requirements such as hose length, brake lever side, front and rear caliper setup, adapters, rotor size, packaging and other project needs.
Visit the XOD Hydraulic Brakes Wholesale page for product matching, bulk purchasing and B2B support.
❓ XOD Hydraulic Brake FAQ
Which XOD hydraulic brake series is best for an electric scooter?
For a general electric scooter hydraulic brake upgrade, start with the two-piston H Series. For a high-power scooter application requiring a four-piston setup, evaluate GT Series. Final compatibility still depends on the actual scooter installation.
What is the difference between XOD H Series and GT Series?
H Series is primarily a two-piston hydraulic brake family for electric scooters and compatible e-bikes. GT Series uses an integrated four-piston design for higher-power electric scooters, e-bikes and e-moto applications.
Which XOD brake is suitable for an e-bike?
For general e-bike applications, start with D or E Series. D is particularly relevant to high-frequency delivery and rental use, while E covers e-bikes, urban commuting, snow bikes and related applications. For high-power e-bikes, evaluate the four-piston F Series.
Are XOD F Series and GT Series both four-piston hydraulic brakes?
Yes. Both F Series and GT Series use four-piston hydraulic brake designs. F Series focuses on high-power e-bikes, e-motos and off-road applications, while GT also covers high-power electric scooter applications.
Which XOD hydraulic brakes are used for electric tricycles?
Start with T Series. It covers electric tricycles, cargo trikes and other multi-wheel applications. T7000, T8000 and T9000 are available as 1-to-2 linked hydraulic brake configurations.
How do I choose between XOD H800 and H880?
Do not choose only by left or right orientation. Front-wheel fitment can also depend on fork structure, disc side and caliper position. Check the actual scooter and use the dedicated H800 vs H880 fitment guide before ordering.
Can XOD hydraulic brakes fit KuKirin electric scooters?
XOD H-Series brake configurations are used with several compatible KuKirin platforms. The correct H800/H880 combination can vary by model, model year, brake disc side, wheel position and suspension structure.
Are XOD hydraulic brakes tested according to ISO 4210:2014?
XODbrakes.com states that XOD-related products are tested according to ISO 4210:2014 where applicable. ISO identifies ISO 4210-4:2014 as bicycle braking test methods, and that edition has since been replaced by ISO 4210-4:2023.
Can I buy XOD hydraulic brakes wholesale?
Yes. XODbrakes.com supports distributors, brands, retailers, repair shops, fleet projects and other B2B buyers. Visit the XOD Hydraulic Brakes Wholesale page for bulk purchasing and product matching.
✅ Final XOD Brake Selection Rule
There is no single XOD hydraulic brake series that is right for every vehicle.
Scooter · E-Bike · E-Moto · MTB · Trike
Step 2 — Power and Use
Daily commuting · High-frequency work · High-power · Off-road · Cargo
Step 3 — Series
D · E · F · GT · H · T · JZ · MS
Step 4 — Fitment
Wheel · Disc Side · Mount · Rotor · Hose · Connector
If you remember only one rule from this XOD hydraulic brake guide, remember this:
Choose the series based on your vehicle and application. Choose the exact model only after confirming fitment.
Explore the XOD hydraulic brake range, read the relevant fitment guide or provide your vehicle model and brake-layout photos before ordering.
